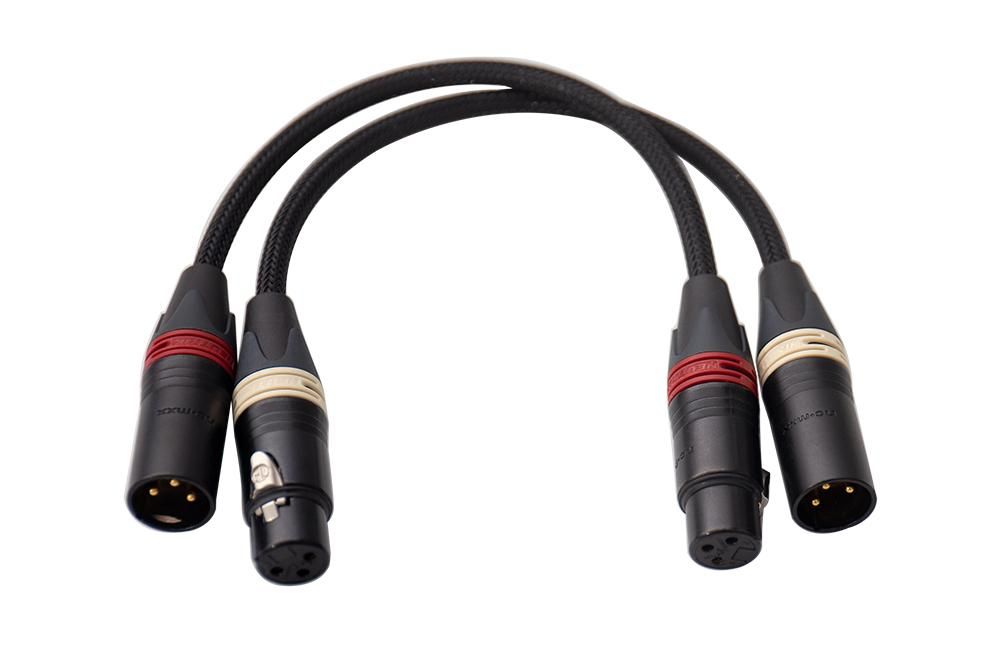

FANMUSIC C006 Male-Female Balanced HiFi Audio XLR Cable

The Fanmisic C006 epitomizes superior audio connectivity with its state-of-the-art design and materials. It features high-quality pure copper HiFi wire from Japan, ensuring a rich and extended sound profile. The 6mm, 2-Core Single-Channel audio wire is braided and shielded, with a copper density of 94%, effectively blocking electromagnetic noise for crystal-clear audio.

High-Quality Pure Copper HiFi Wire with Advanced Shielding: Utilizing pure copper HiFi wire imported from Japan, this product offers a warm, thick, and extended sound experience. It features a 6mm braided shielded wire, made with a 2-Core Single-Channel audio wire, and boasts a high copper density of 94%. This high density effectively barriers electromagnetic noise, ensuring crystal-clear audio. Each wire is meticulously crafted, consisting of 60 strands of extremely fine and durable 0.08mm copper wire.

Durable and Flexible Material Construction: The wire protector is made of flexible polyvinylchloride, capable of withstanding low temperatures down to -49℃, ensuring durability and longevity. The insulated layer is crafted from radiation-processed polyethylene, capable of withstanding a high insulation voltage of 500VAC/min without sustaining damage.

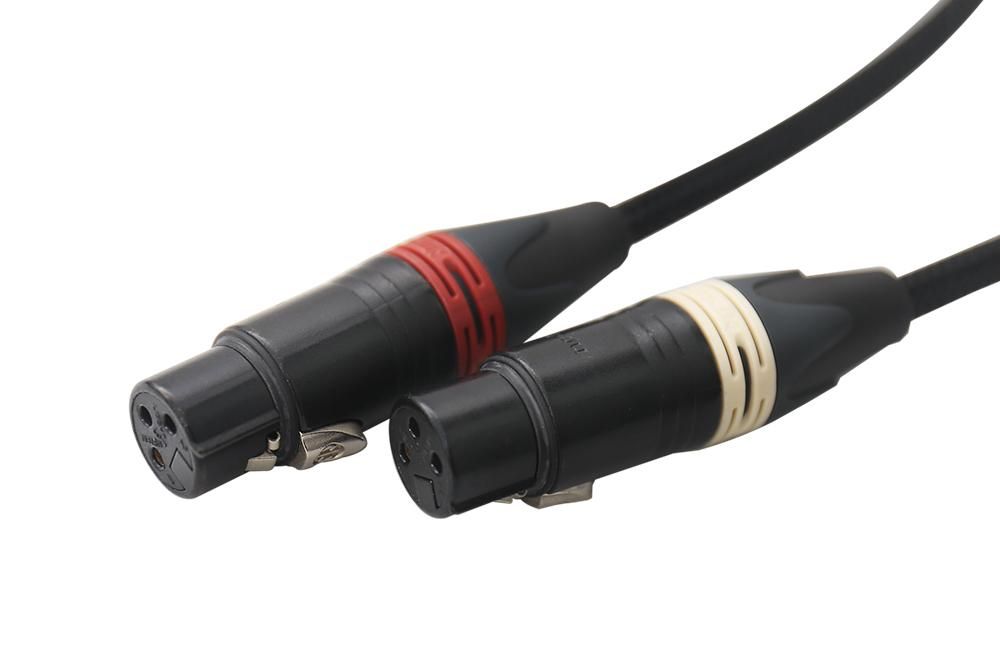

State-of-the-Art Connectors and Ergonomic Design: The product includes premium black gold-plated NC3MXX-B and NC3FXX-B connectors from NEUTRIK, Switzerland, ensuring a high-quality and stable connection. The unique cage-type jack design enhances contact integrity by lowering contact resistance. A welding barrier in the jack prevents solder leakage, maintaining the connection's integrity. The ergonomic design prioritizes user comfort and ease of operation, with features like an enlarged metal latch on the female connector for easy handling, and additional grounding spring pieces for better shell continuity.

Robust Mechanical Features for Enhanced Usability: The design includes an upgraded chuck type clamping sleeve that offers increased tension resistance, simplifying assembly. The polyurethane sealing cover on the tail sleeve protects the cable from bending pressure, extending its lifespan. Color rings and tail sleeves are used for efficient coding and identification, adding convenience and ease of use.

Long-Lasting and Reliable Structure: The product boasts a defense zinc diecasting shell, ensuring a long life and high reliability. The internal structure of the shell is reinforced with screw threads, providing additional protection against damage.

Specifications:
Model: Fanmisic C006
Material:Connectors: Black gold-plated NC3MXX-B and NC3FXX-B from NEUTRIK
Cable: Two-core braided HiFi line L-2T2S from CANARE
Plug: Black gold-plated NC3MXX-B and NC3FXX-B from NEUTRIK
Wire Length: 20cm (excluding plug)
Number of Conductors: 2 pcs
Standard Cable Diameter: 6mm + 0.15
Conductor Cross-Sectional Area: 0.30mm / 23AWG
Quantity of Conductor Copper Wires: 60 pcs
Diameter of Conductor Copper Wire: 0.08mm
Torque: 20mm
Core DC Resistance: 6.40 Ω/100m
Shielded DC Resistance: 3.10 Ω/100m
Thermal Shock Resistance: 120°C for 1 hour, no crack
Voltage Test: 1000 Vdc for 1 Minute, OK
Conductor Impedance: <900 Ω/km
Conductor Insulation Layer: XLPE polyethylene
Shielding Material: 80*0.1mm braided copper wire
Shell Material: Soft PVC/neoprene

Packing list:
1 pair of C006 cables
User Manual x 1
Warranty x 1
