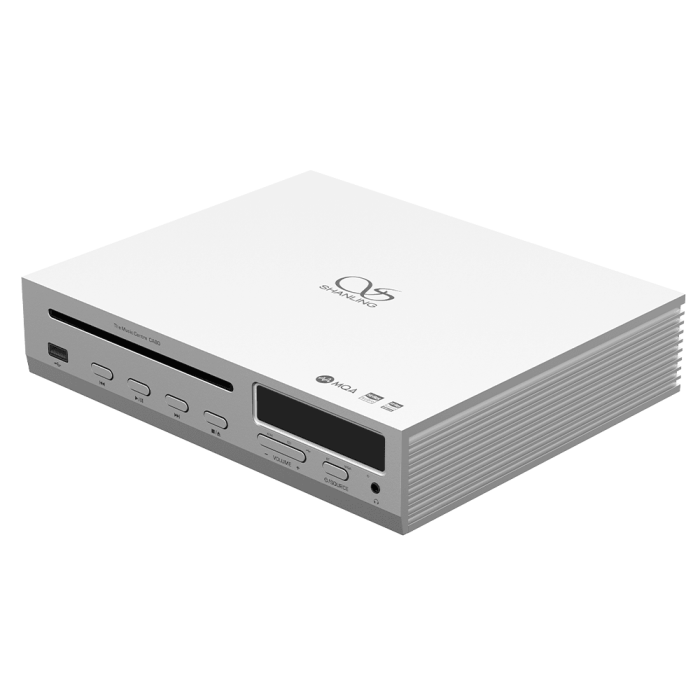

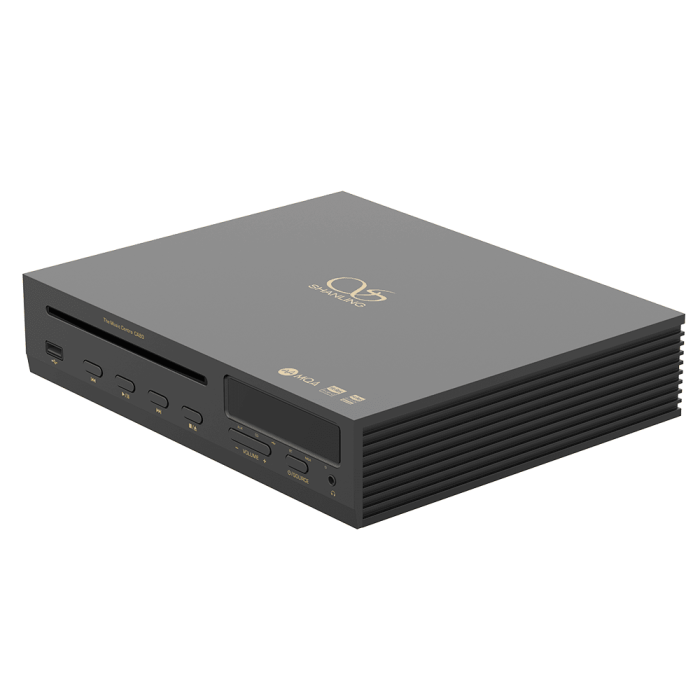

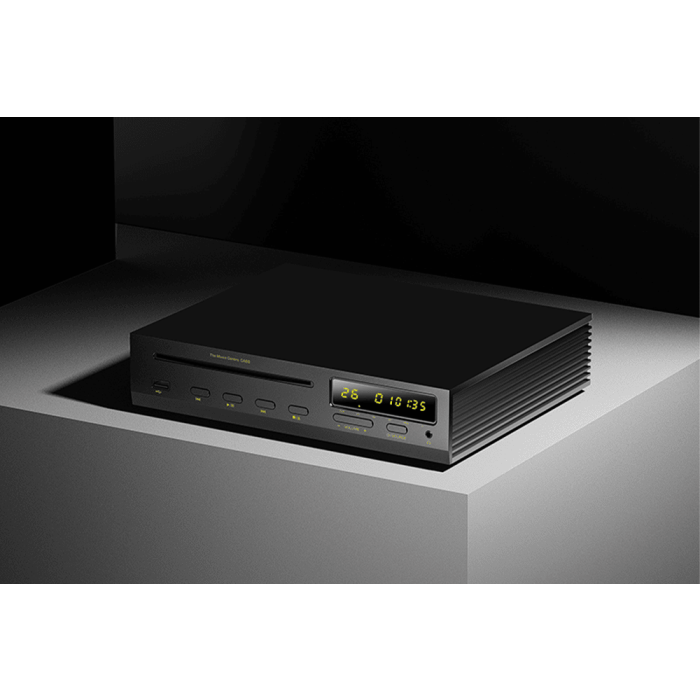

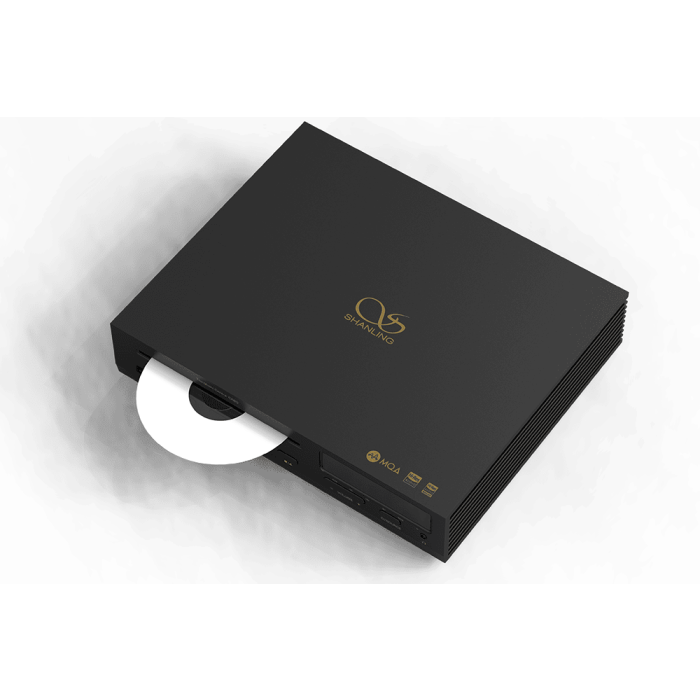

SHANLING CA80 ES9219 Hi-RES MQA CD Player

Introducing the Shanling CA80, an embodiment of audio excellence and modern versatility that transcends the boundaries of traditional CD players. With its premium features, including the ES9219MQ DAC chipset, Philips CD Drive, Sanyo HD860 laser technology, and innovative ICEPower Class-D amplification, the CA80 redefines the audio experience. As we delve into its capabilities, from seamlessly driving bookshelf speakers to offering USB and Bluetooth connectivity, it becomes evident that the CA80 is not just a player; it's a symphony of cutting-edge technologies harmonized for the audiophile's delight. Join us on a journey through precision, versatility, and sonic brilliance as we explore the remarkable features that make the Shanling CA80 a standout in the realm of premium audio.

Premium Sound Unveiled: Experience the pinnacle of audio with the CA80's ES9219MQ DAC chipset, , LTA8092 & RT6863 amplifiers, delivering high-resolution decoding for a sound defined by purity, low distortion, and unmatched clarity.

Precision in Playback: Marrying a Philips CD Drive and Sanyo HD860 laser tech, the CA80 offers seamless performance, lag-free operation, and an Ingenic X1000 main chipset for efficient high-res audio signal processing.

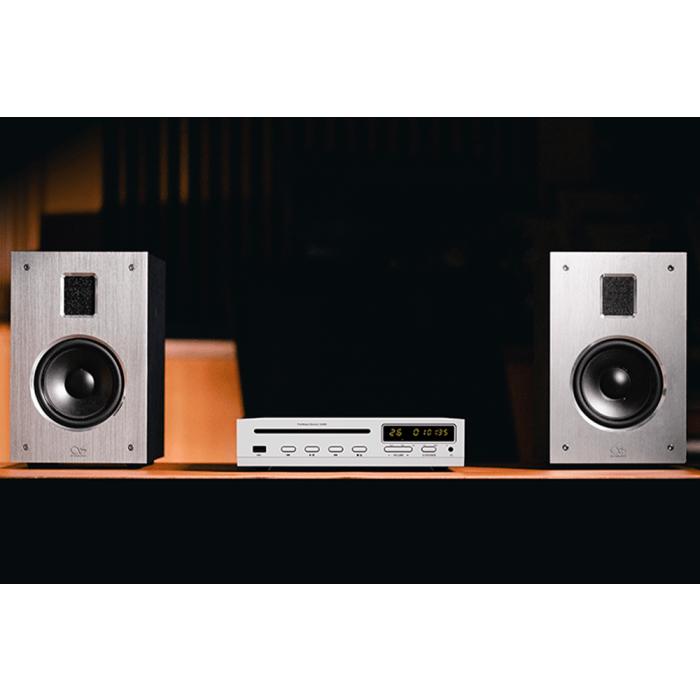

Bookshelf Symphony: With an integrated power amplification chipset, the CA80 effortlessly drives bookshelf speakers, boasting an impressive output power of up to 100W@4Ω and up to 50W@8Ω.

Versatile Connectivity: Embrace USB drive support and Wireless Bluetooth V5.0, featuring high-definition LDAC transmission and decoding capabilities up to PCM(32Bit/384kHz) and DSD256.

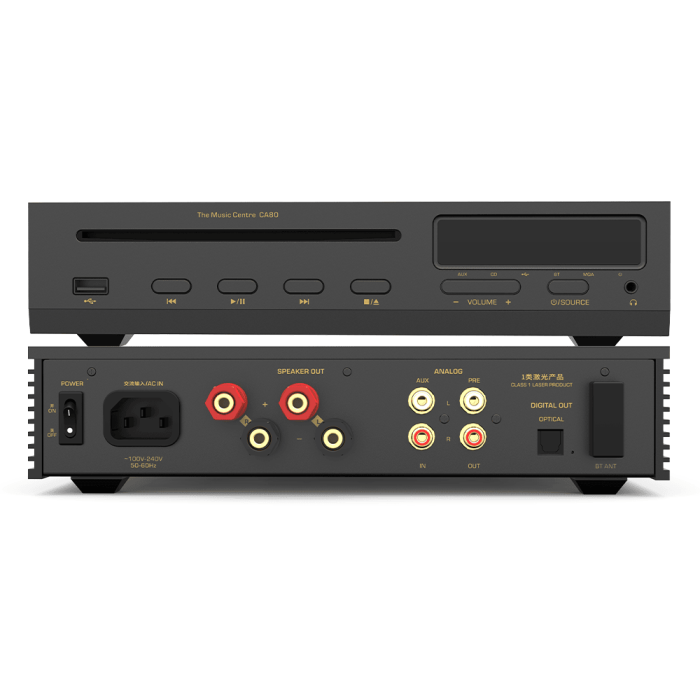

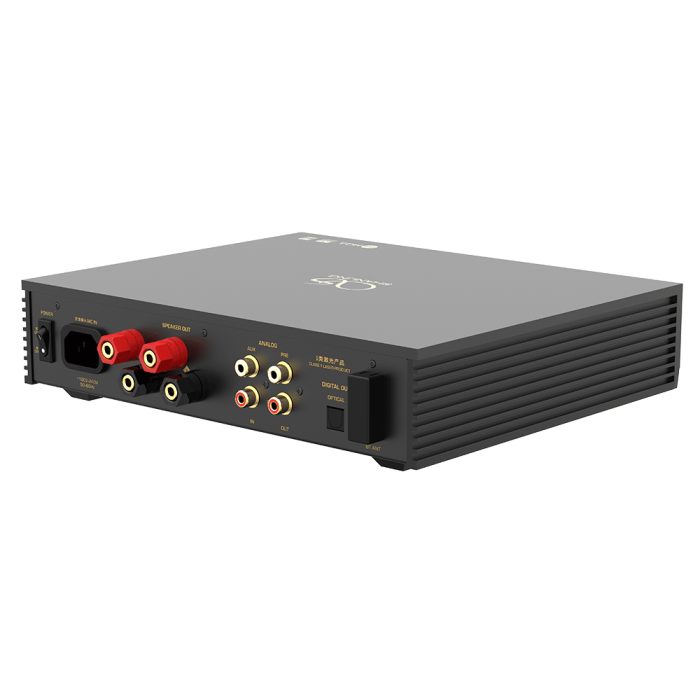

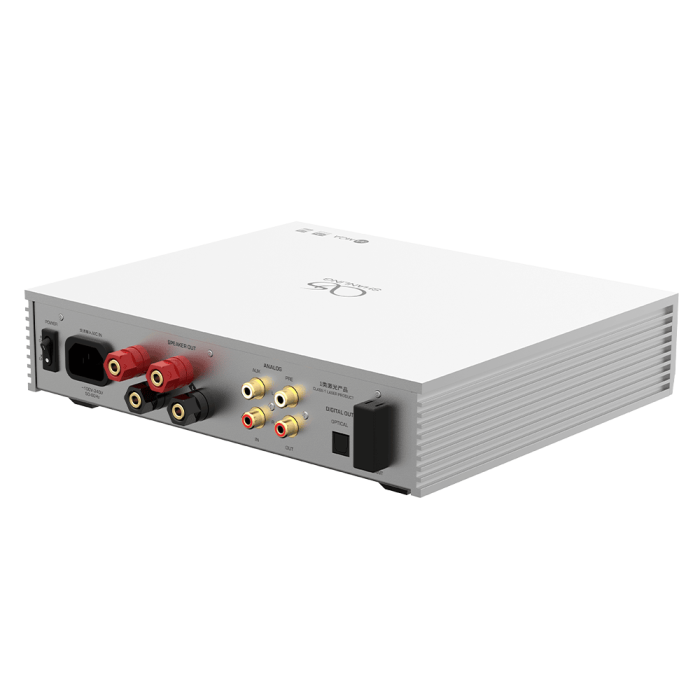

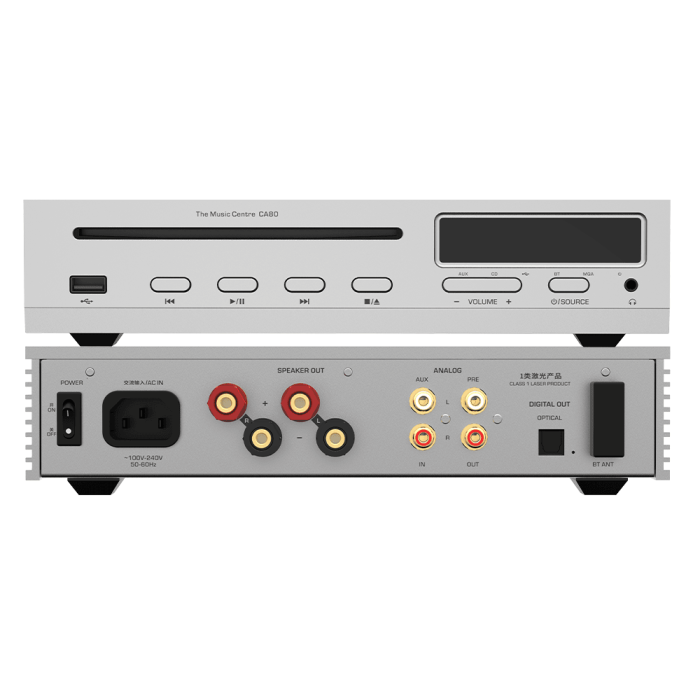

Adaptable Connections: From digital to analog, the CA80 offers a spectrum of outputs, including digital optical SPDIF, analog RCA, and 3.5mm single-ended options, plus a speaker output for seamless connectivity.

Innovative ICEPower Amplification: Elevate your listening with cutting-edge ICEPower Class-D amplification technology, providing pristine sound quality, clarity, and power for the discerning audiophile.

Compact Brilliance: Meticulously crafted with a compact footprint, the CA80 integrates seamlessly into diverse environments, supporting MQA-CD for enhanced high-fidelity music decoding and playback.

Specifications:
Net weight: 2.8kg
Consumption power: 20W
Main Control: Junzheng X1000
Decoding chip: ES9219MQ
Bluetooth: BT 5.0
Power supply: external AC100V-AC240V
Display: Digital Tube Display
Control method: APP+remote control+keys
Enter: CD, U disk, Bluetooth, RCA
Output method: RCA, optical fiber, 3.5mm headset
U-disk Playback Format: DSD / DXD / APE / FLAC / ALAC / WAV / AIFF / AIF / DTS / MP3 / WMA / AAC / OGG / MP2 / M4A / AC3 / OPUS / TAK / Cue

AMP Output:
Output Power
50w@82Ω (0.3%)
100W@4Ω (0.3%)
Frequency: 20Hz -20KHz (-0.2DB)
THD+N: 0.003%
Separation: 80db@32Ω
Signal to noise ratio: 108db

PO Output:
Output power: 130MW@32Ω
Frequency: 20Hz -40kHz (-0.2DB)
THD+N: 0.0015%
Separation: 75db@32Ω
Dynamic range: 119db
Signal ratio: 118db
Output impedance: less than 1Ω

LO Output:
Output level: 2.0VRMS
Frequency: 20Hz -40kHz (-0.2DB)
THD+N: 0.002%
Separation: 85DB
Signal ratio: 116db
