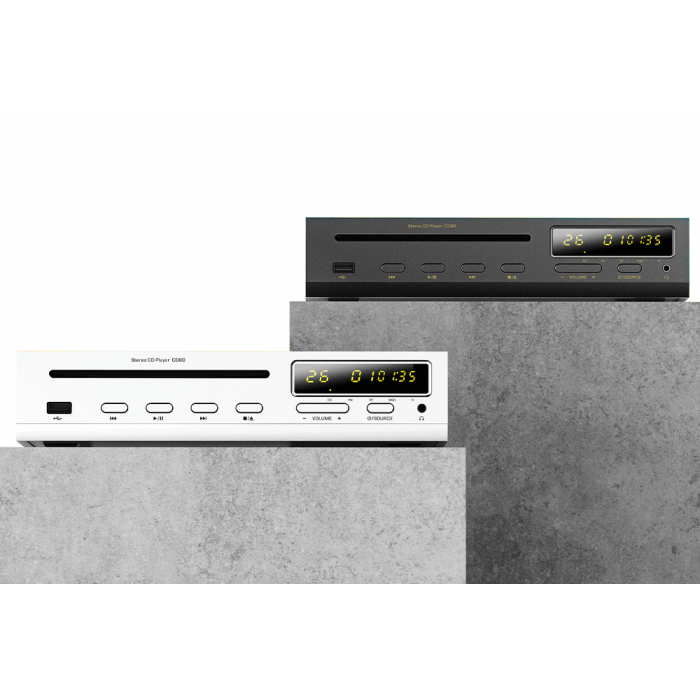

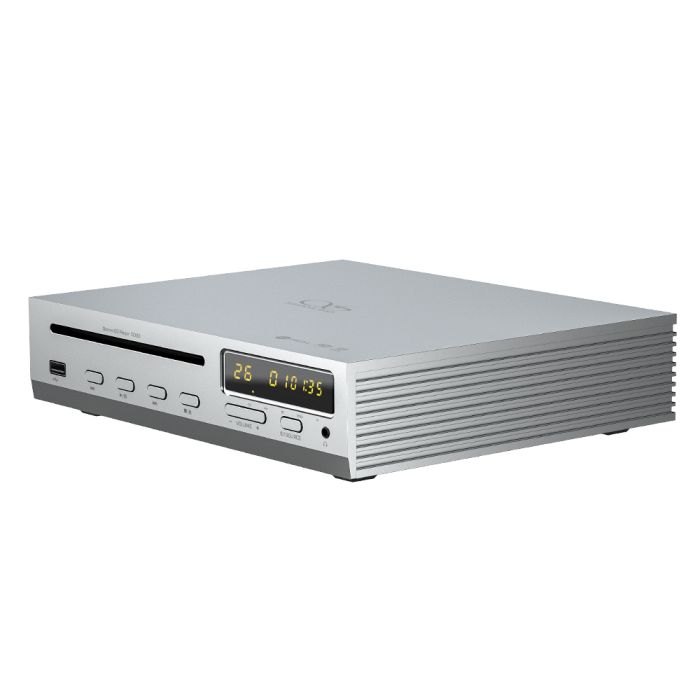

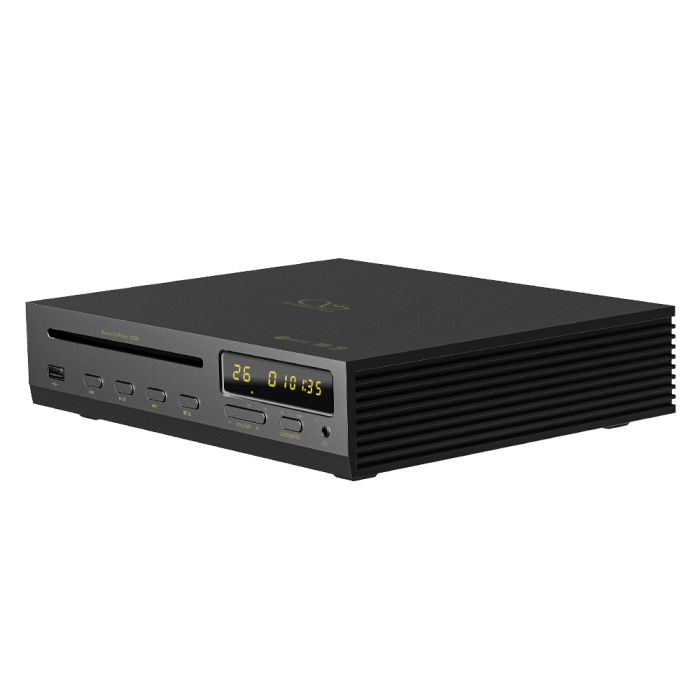

SHANLING CD80 ES9219MQ Bluetooth Hi-Fi CD Player

Immerse yourself in the ultimate audio experience with the Shanling CD80, a meticulously crafted traditional CD player seamlessly integrating advanced technologies in an elegant form factor. Explore its exceptional features, including a premium ESS Sabre DAC chipset, high-quality amp chips, and wireless Bluetooth connectivity, delivering a unique audio experience with every use.

Hi-Res Audio Decoding: The CD80 features the ES9219MQ DAC chipset, providing impressive high-resolution audio signal decoding for a clean output with low distortion. Supported by LTA8092 and RT6863 amplification chips, it ensures premium sound quality.

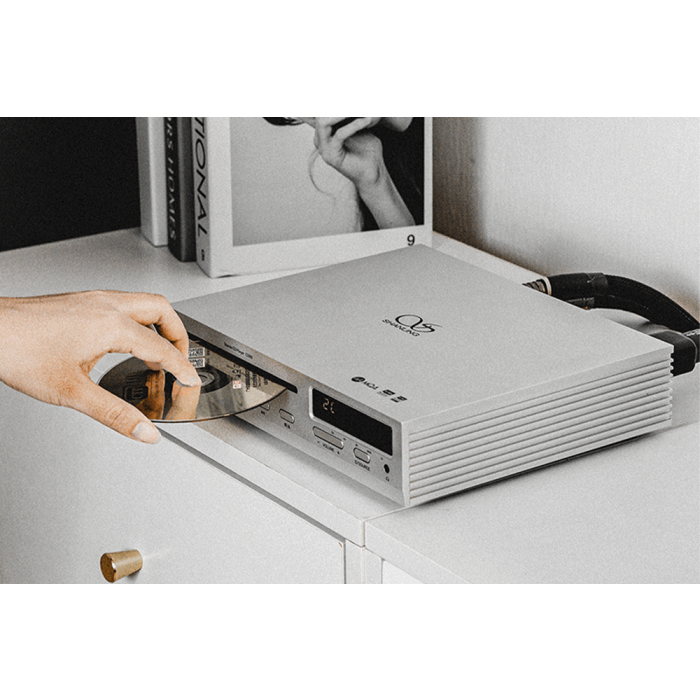

Expertly Designed: With years of expertise in CD player design, Shanling incorporates a high-quality Philips CD drive and Sanyo HD860 Laser Technology at the core of the CD80. Efficient CD playback and consistent performance are guaranteed, complemented by the Ingenic X1000 main chipset for high-resolution audio signal processing.

Versatile Connectivity: Enjoy USB drive support and Wireless Bluetooth V5.0 connectivity. The CD80 supports high-definition LDAC transmission protocol and, using a USB drive, enables high-resolution PCM(32Bit/384kHz) and DSD256 audio signal decoding.

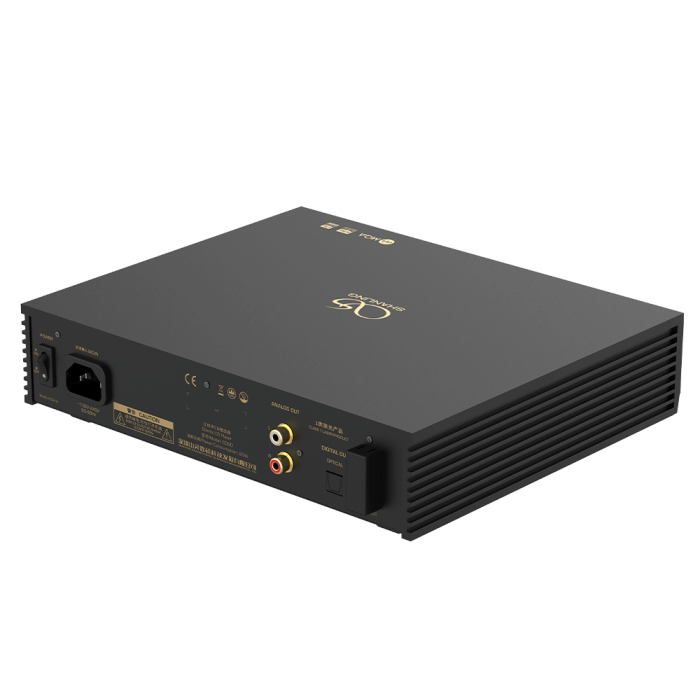

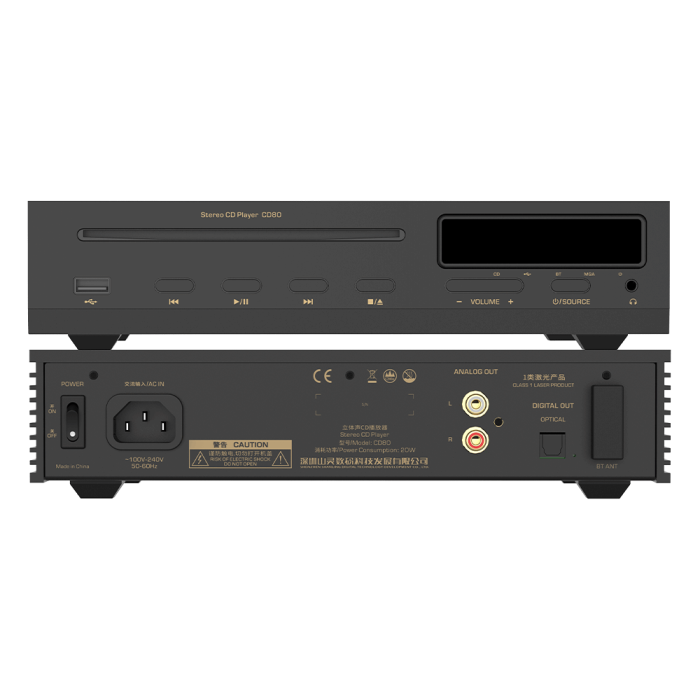

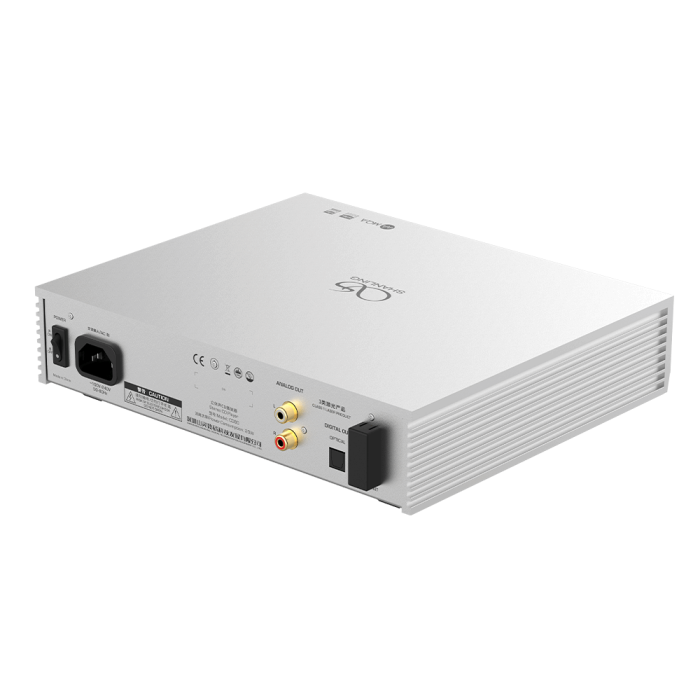

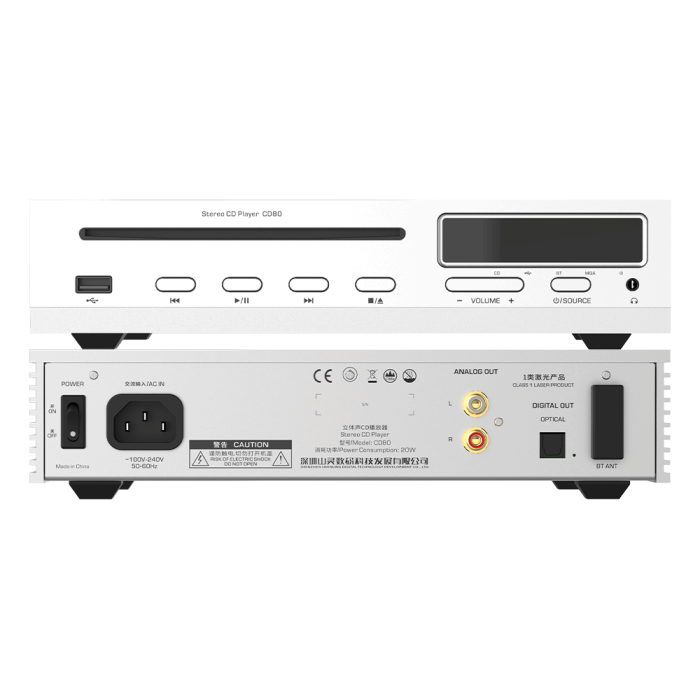

Flexible Connection Options: The CD80 offers both digital and analog output support, including digital optical SPDIF output, analog RCA, and 3.5mm single-ended options. Connect to a variety of devices, from headphones to audio decoders and amplifiers.

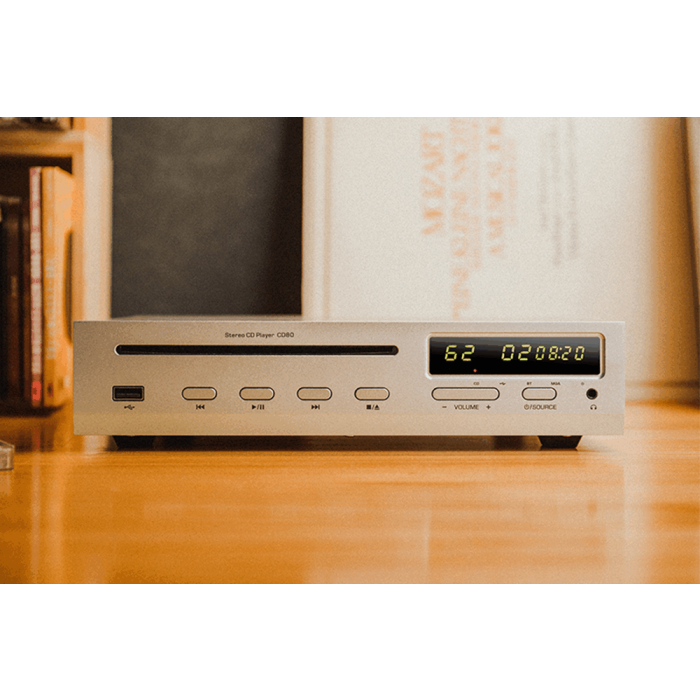

Versatile Output Options: Explore a range of output alternatives, including optical SPDIF, 3.5mm, and RCA analog outputs with a pre-out mode. The user-friendly interface features a digital LED tube display, offering intuitive playback status and track details. Convenient control is facilitated through the Eddict Player control and a remote controller.

Compact Design: Meticulously crafted with compact dimensions and a weight of 2.4 kg, the CD80 seamlessly integrates into various settings. Supporting the MQA-CD format, it enhances compatibility with high-fidelity music decoding and playback, delivering a superior musical experience.

Specifications:
Net weight: 2.4kg
Consumption power: 20W
Main Control: Junzheng X1000
Decoding chip: ES9219MQ
Bluetooth: BT 5.0
Power supply: external AC100V-AC240V
Display: Digital Tube Display
Control method: APP+remote control+keys
Enter: CD, U disk, Bluetooth
Output method: RCA, optical fiber, 3.5mm headset
U-disk Playback Format: DSD / DXD / APE / FLAC / ALAC / WAV / AIFF / AIF / DTS / MP3 / WMA / AAC / OGG / MP2 / M4A / AC3 / OPUS / TAK / Cue

PO Output
Output power: 130MW@32Ω
Frequency: 20Hz -40kHz (-0.2DB)
THD+N: 0.0015%
Separation: 75db@32Ω
Dynamic range: 119db
Signal ratio: 118db
Output impedance: less than 1Ω

LO Output
Output level: 2.0VRMS
Frequency: 20Hz -40kHz (-0.2DB)
THD+N: 0.008%
Separation: 110db
Dynamic range: 117db
Signal ratio: 116db
