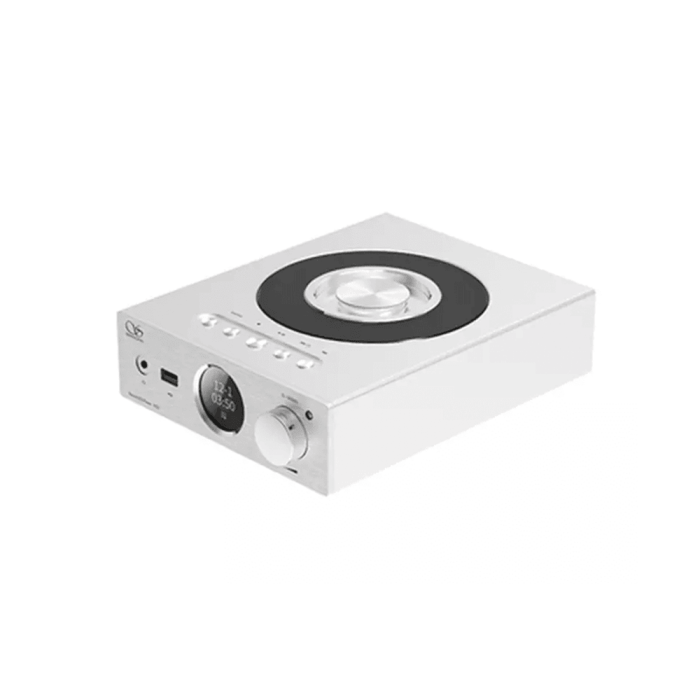

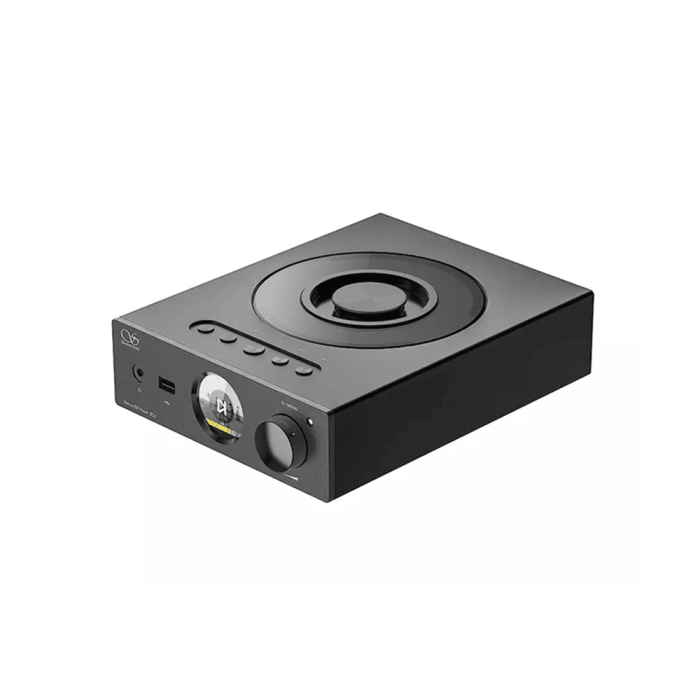

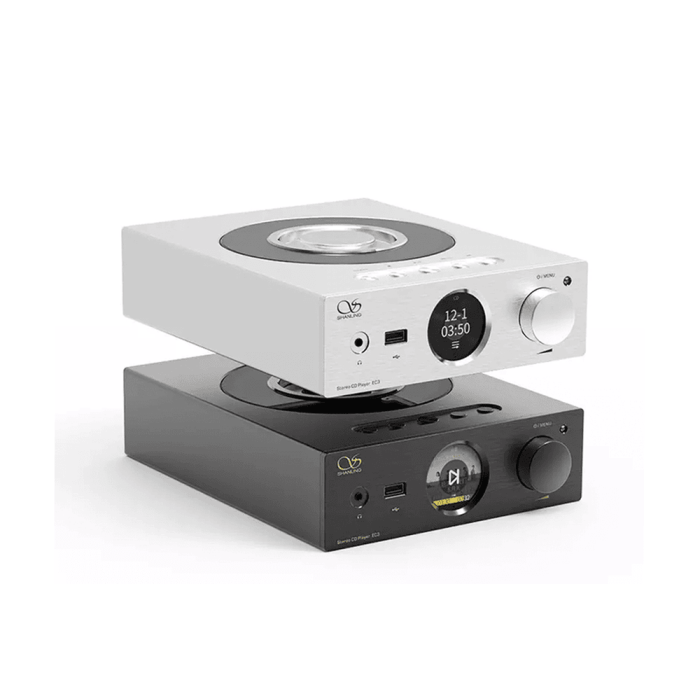

SHANLING EC3 ES9219C Top-Loading CD Player

The Shanling EC3 stands as a testament to our commitment to delivering quality audio experiences that seamlessly blend tradition with innovation. With a rich legacy in crafting CD players spanning three decades, the EC3 emerges as a beacon of versatility and modernity within our product lineup.

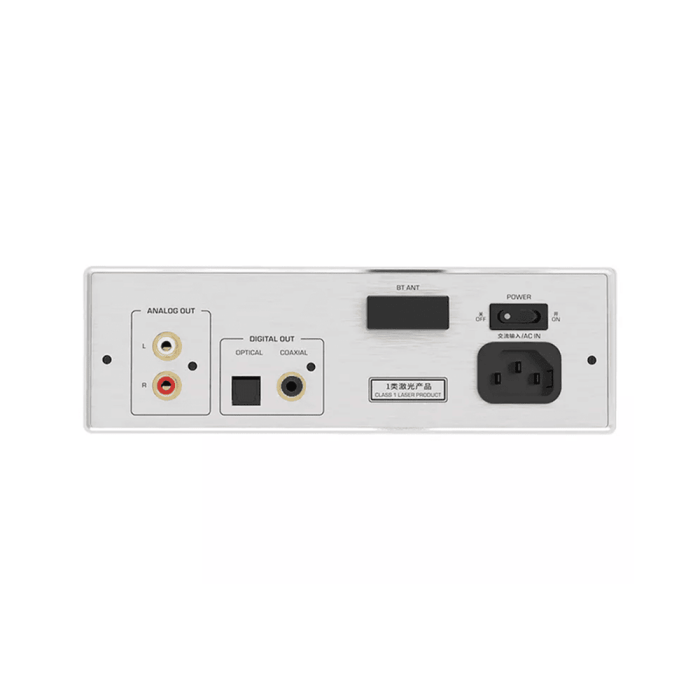

Its compact design, housing the reliable Philips CD80 drive mechanism and Sanyo HD850 laser head, ensures a seamless fit into diverse audio setups. The inclusion of digital outputs, courtesy of coaxial and optical SPDIF, facilitates effortless integration with external DACs or receivers, while the internal audio circuit, featuring the ESS ES9219C DAC and LTA8092 op-amp, elevates the listening experience through both headphone and RCA outputs.

However, the EC3 transcends the conventional boundaries of a CD player, thanks to the integration of the Ingenic X2000 platform, a 1.6-inch screen, and a custom-built system. This not only grants access to an array of settings but also transforms the EC3 into a versatile Bluetooth DAC and a Hi-Res music player capable of accommodating USB drives loaded with audio files.

The EC3, thus, redefines the possibilities of a CD player, marking a resounding return of Shanling to the forefront of the international Hi-Fi market.

High-Fidelity ESS Sabre DAC: Powered by ESS Sabre's ES9219C DAC chipset, EC3 delivers detailed, noise-free audio. Supporting USB Drive playback at 32-Bit/384kHz PCM, it elevates your music with high-resolution clarity.

LTA8092 OP-AMP Enhancement: Enhance your audio experience with the LTA8092 OP-AMP chipset, refining signals from the ESS Sabre DAC. EC3 guarantees clean, powerful output through both headphone and RCA line-out.

Bluetooth & USB Versatility: Functioning as a complete Hi-Res Player, EC3 supports Bluetooth V5.0 connectivity and USB Drive Playback. With dedicated USB slots and seamless Bluetooth integration, enjoy versatile music options.

Custom Software for Effortless Control: Navigate EC3 effortlessly with custom software on the Ingenic X2000 Platform. The 1.6” colorful IPS display, coupled with the Eddict Player application, provides intuitive control over the device.

Philips CD80 Drive & Sanyo HD850 Combo: Combining the Philips CD80 Drive and Sanyo HD850 laser head, EC3 ensures stable CD reading, echoing the performance of Shanling's legacy CD players from over 30 years.

Proven ESS ES9219C DAC & LTA 8092: EC3 integrates the well-proven ESS ES9219C DAC chip and LTA8092 Op Amp, meticulously tuned for Shanling's signature warm, natural sound. USB Drive playback supports up to 32bit/384kHz and DSD256.

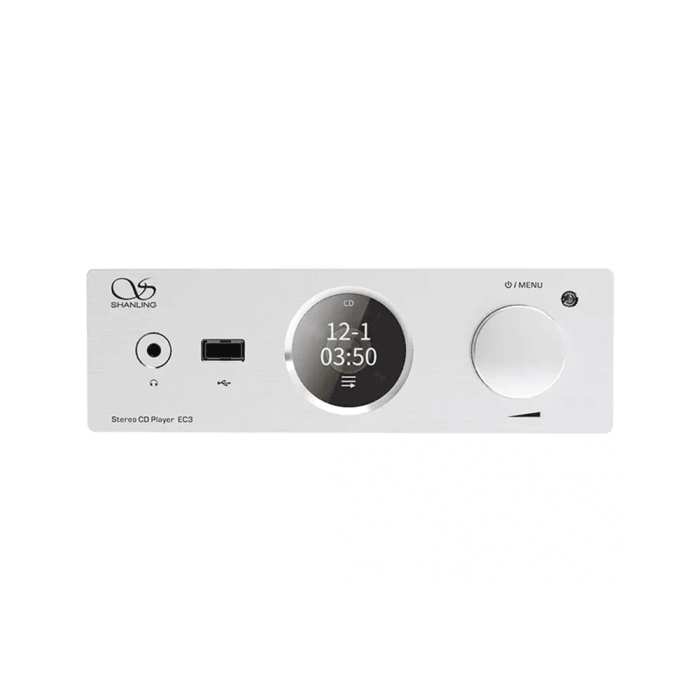

Compact Screen & Motorola IPS Panel: Featuring a 320 x 290 compact screen with Motorola IPS panel, EC3 ensures clear playback information and basic settings. Durable and long-lasting, the panel enhances the device's overall quality.

Specifications:
Dimensions: 25.5x18.8x6.8cm
Weight: 2.4Kg
Power Drain: 15W

RCA Output Specifications:
Output Level: 2.3V
Frequency Response: 20Hz-40kHz
SNR: 116dB
Dynamic Range: 116dB
Distortion: <0.001%

Headphone Output:
Output Power: 20mW(low gain), 70mW(high gain) @32Ω
Frequency Response: 20Hz-40kHz
SNR: 114dB
DNR: 116dB
THD+N: 0.0015%
Channel Separation: 65dB@32Ω
Output Impedance: 0.4Ω
