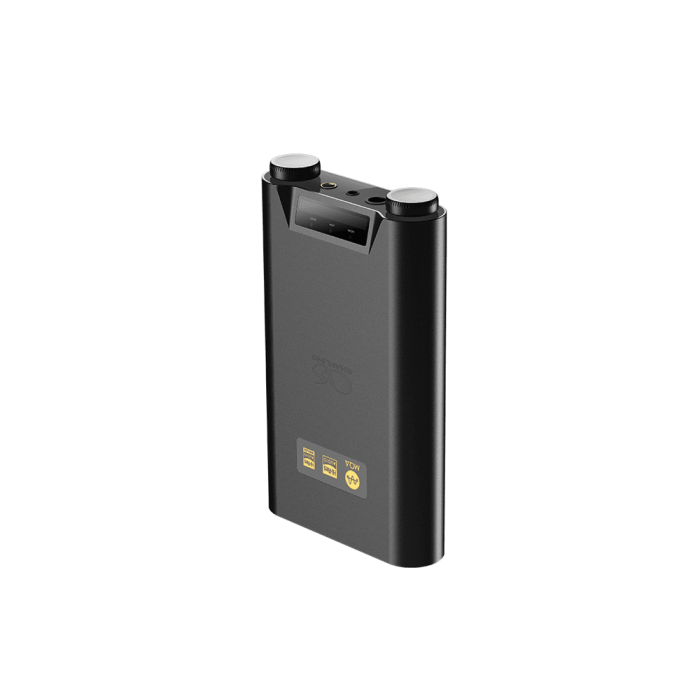

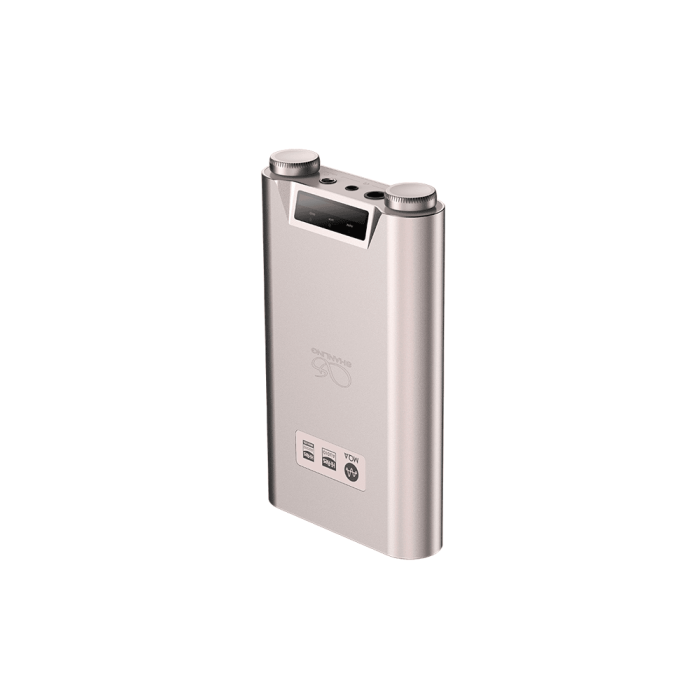

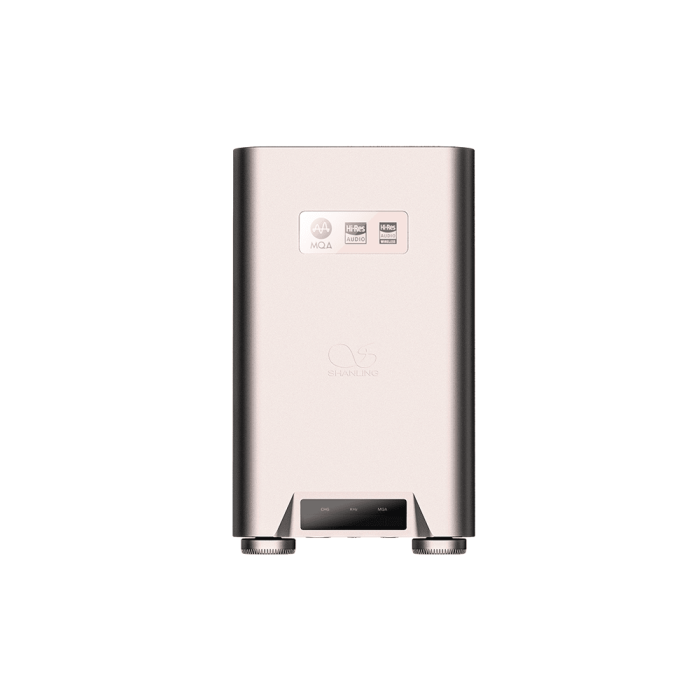

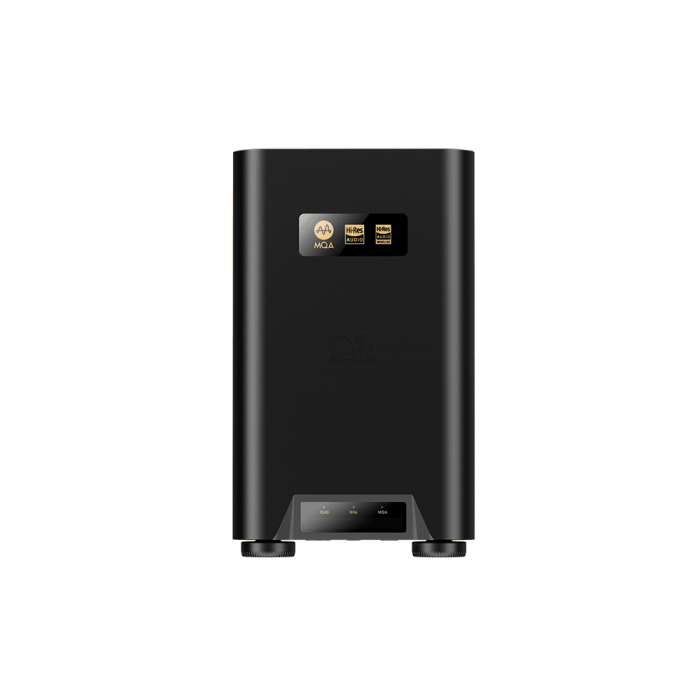

SHANLING H7 AK4191EQ AK4499EX High-End Portable DAC/Amplifier

Shanling H7 takes portable audio to new heights, featuring the flagship AKM4499EX DAC for pristine sound quality. Its self-developed high-power amp circuit delivers up to 1.3W of clean output, making it a powerhouse in portable audio. The H7 is Eddict player compatible and supports microSD cards up to 2TB.

Premium Components, Premium Sound: Experience rich tonality with the AK4499EX DAC and AK4191EQ modulator. The H7 boasts a powerful XMOS XU316 USB processor, enabling high-res 32-Bit/768kHz PCM and native DSD512 decoding. With MQA certification, enjoy studio-grade audio with 8x MQA decoding.

Versatile Connectivity, Impeccable Design: Connect via USB, Coaxial, Optical, or Bluetooth, and switch between three headphone outputs (6.35mm, 4.4mm, and 3.5mm). The H7's high-power amplification circuit, featuring TPA6120A2/OPA2211/MUSES8920 chips, delivers up to 1300mW through the balanced port.

Endless Playback Possibilities: Equipped with a 6800mAh battery, the H7 ensures up to 10 hours of continuous playback. It supports quick charging and features a MicroSD card slot for direct lossless playback. The AK4499EX DAC and AK4191EQ modulator combination sets the H7 apart in audio excellence.

Advanced Features for Audiophiles: Experience the AKM flagship DAC system with the AK4499EX DAC and AK4191EQ Delta-Sigma modulator. With three gain levels and three headphone outputs, the H7 adapts to various headphones, providing hiss-free playback for sensitive IEMs and powerful output for audiophile-grade headphones.

Versatile Playback with Eddict Player: Utilize the MicroSD card slot for direct lossless playback and pair with the Eddict Player app for complete control over your music library. The H7's Hi-Fi USB and Bluetooth 5.0 input ensure top-quality digital and wireless connections, providing flexibility in audio sources.

Long-Lasting Battery, Uninterrupted Listening: With a dedicated PMU chip for advanced power management and industry-standard 18650 batteries, the H7 guarantees a prolonged battery life for continuous playback. This device redefines portable audio with its cutting-edge features and exceptional sound quality.

Specifications:
DAC Chipset: AK4499EX+AK4191EQ
Amp Circuit: TPA612OA2/OPA2211/MUSES8920
USB Processor: XMOS XU316
Platform: Ingenic X2000

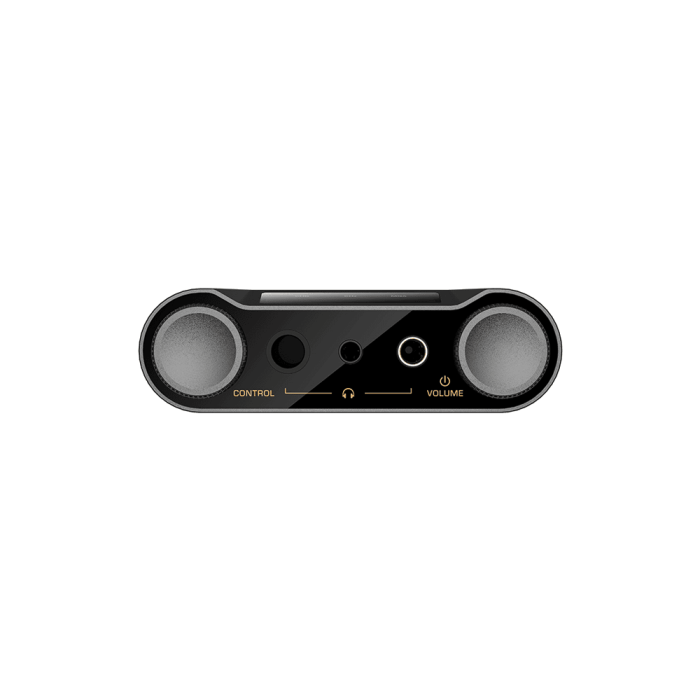

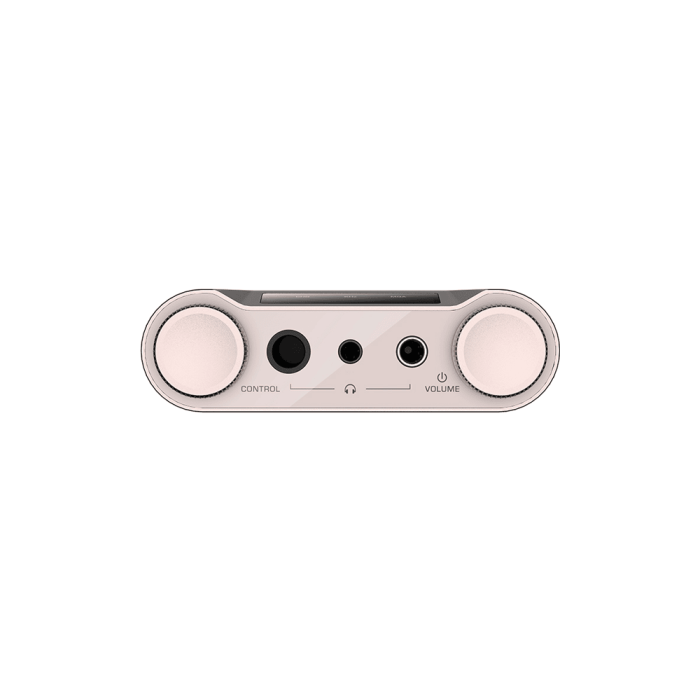

Output Options: 6.35+4.4+3.5mm

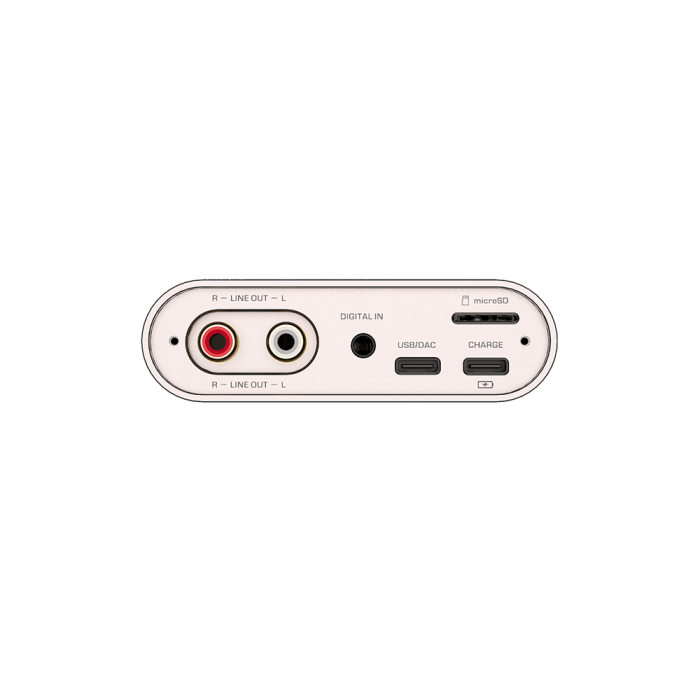

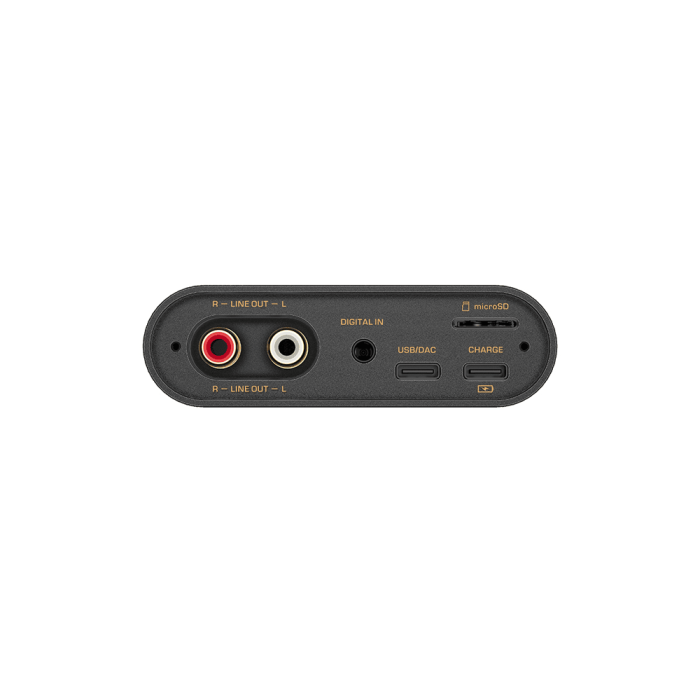

RCA Line-Out
Audio formats: DSD(".dsf/.dff/.iso")/DXD/DTS/APE/FLAC/WAV/AIFF/AlF/ALAC/MP3/WMA/AAC/M4A/OGG/MP2/AC3/OPUS/M3U/M3U
Hi-Res Support: 32 bit/768 kHz DSD512, MQA 8x
Not Support : iOS DSt code
Switchable gain: Low, Medium, High gains
Storage: MicroSD Card Slot, up to 2TB
Digital filter: 6 different filters
Bluetooth version: 5.0
Codec support:Bidirectional-LDAC & SBC&AAC
Battery Capacity: 6800 mAh
Battery Life: Up to 10h SE / 8H BAL
System: Open Android 10
Size: 142x85x25mm
Weight: 325.2g

Output Parameters(RCA):
Output Level: 2.4 Vrms
Frequency Response Range: 20Hz-40kHz
THD+N: 0.0006%
Dynamic Range: 121dB
SNR: 121dB
Output Impedance: 47kΩ

Output Parameters(Single-Ended):
Output Power: 28mW(Low-gain), 112mW(Mid-Gain), 450mW(High-Gain) @ 32Ω
Frequency Response: 20Hz-40kHz
THD+N: 0.0009%
Channel Separation: 75dB@32Ω
DNR: 121dB
SNR: 121dB
Noise: >113dB
Output Impedance: <1Ω

Output Parameters(Bal Output):
Output Power: 87mW(Low-gain), 348mW(Mid-Gain), 1300mW(High-Gain) @ 32Ω
Frequency Response: 20Hz-40kHz
THD+N: 0.0007%
Channel Separation: 115dB@32Ω
DNR: 123dB
SNR: 123dB
Noise: >111dB
Output Impedance: <1Ω
