SHANLING M30 Dual AK4497 Desktop Hi-Fi Streaming Player

The Shanling M30 redefines customization with its fully modular design, offering complete flexibility from the audio DAC chipset to the tube amplification module. Experience the freedom to upgrade and customize your M30 with future module plans from Shanling.

Dual AKM DACs for Unrivaled Decoding: Equipped with a high-performance dual AK4497 DAC chipset from AKM Technologies, the M30 ensures pristine audio signal decoding with minimal distortion. Supporting PCM up to 32-Bit/768kHz and native DSD512 decoding, it guarantees an immersive high-resolution audio experience.

Versatile Tube and Solid-State Timbre: Choose your preferred audio timbre with the option to switch between Tube or Solid-State Amplification. The M30 features 2x ADI ADA4610-2+ 4x Ti BUF64 Solid-State amplification module and 2x Korg Nature 6P1 tubes, providing three output modes: Direct, Transport, and Tube.

Seamless Music Streaming: The customized closed Android OS on the M30 enables seamless music streaming with support for popular services like Spotify, Tidal, QObuz, and Deezer. Expect future firmware updates to introduce additional streaming options, ensuring you stay connected to your favorite music.

Powerful Headphone Amplification: Experience a powerful headphone output with the M30's new I/V conversion stage and customized CPAF low-pass filtering technology. With 2x ADA4610-2 + 4x BUF634 chips, it delivers up to 1530mW of power at 32 ohms through balanced connections, catering to both sensitive IEMs and demanding headphones.

Hi-Res Wireless Connectivity: The M30 supports high-resolution wireless connectivity with Dual-band WiFi (2.4gHz/5gHz) and Hi-res Bluetooth Codecs including LDAC, LHDC, and aptX HD. Enjoy a wire-free audio experience with uncompromised sound quality.

Crafted with Precision and Quality: Shanling ensures top-notch quality with the M30, utilizing high-precision CNC machining for a monocrystalline copper internal wiring and 92 high-accuracy Panasonic capacitors on the audio motherboard. The result is an unmatched audio performance that sets the M30 apart.

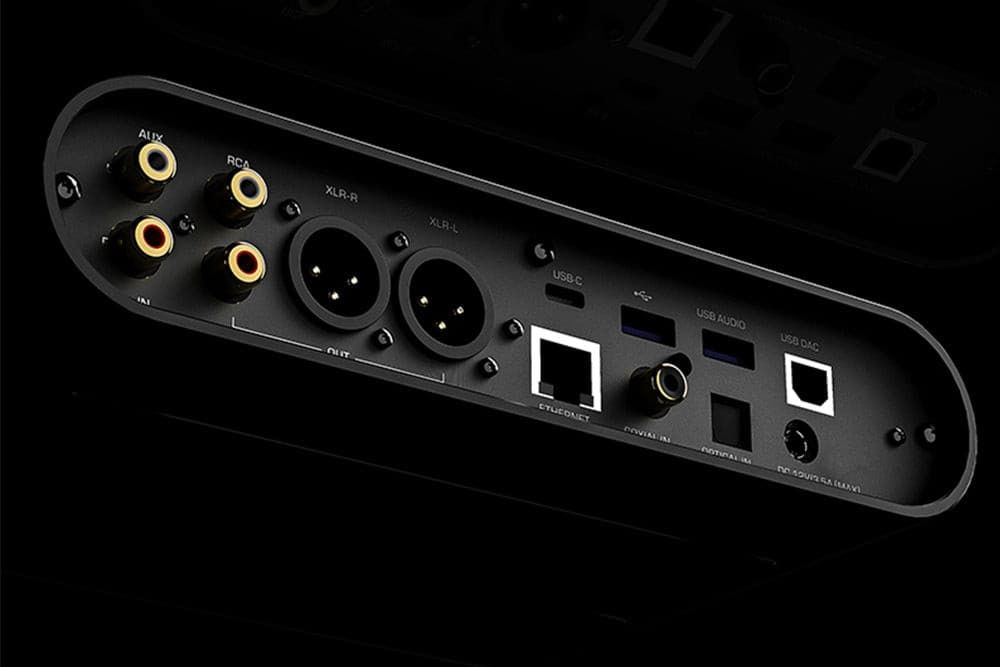

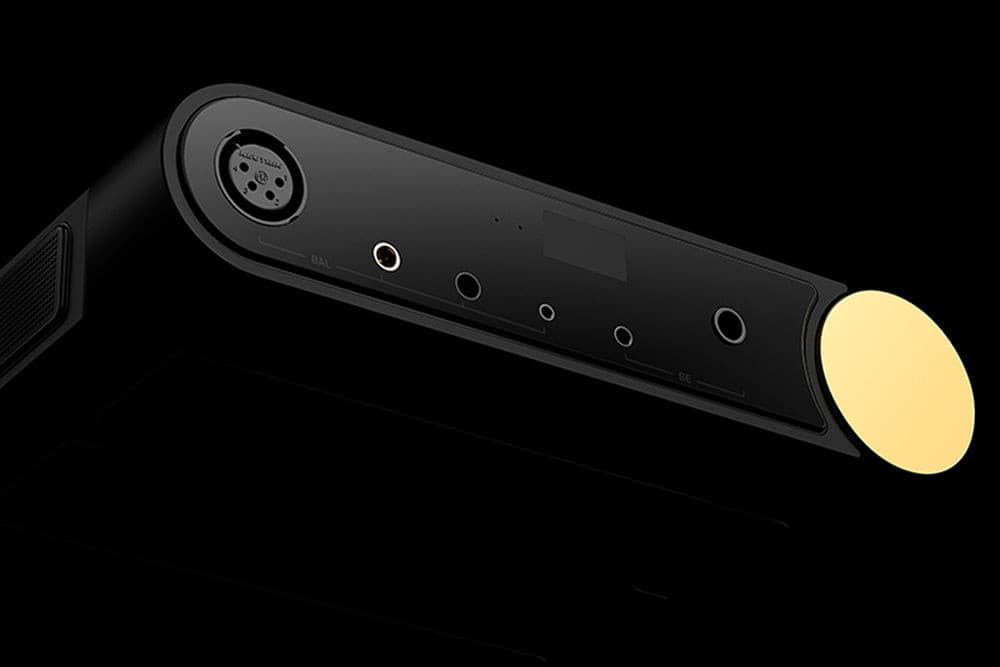

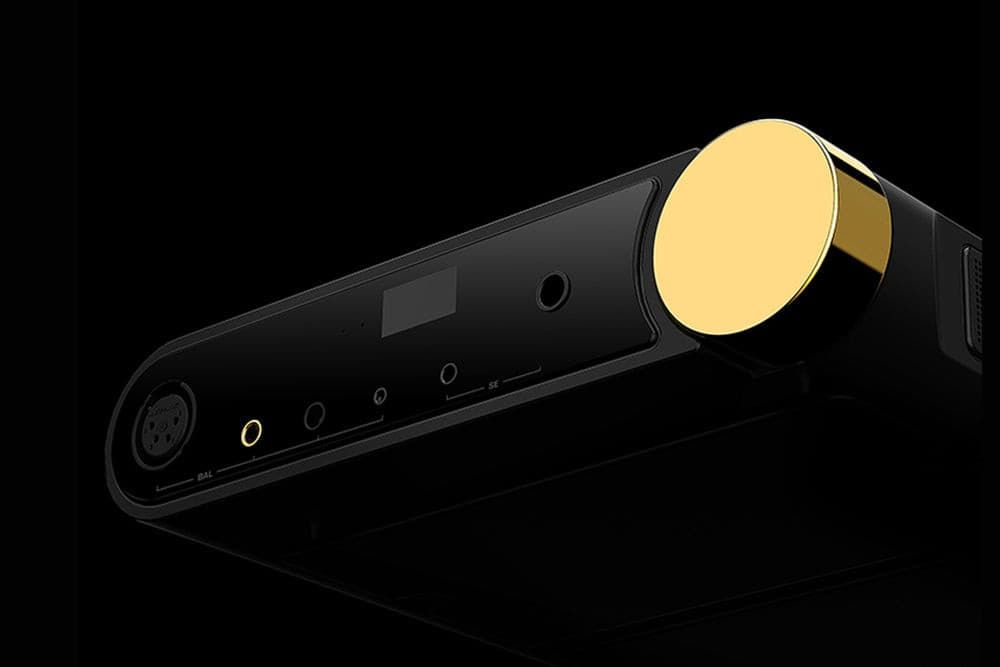

Hub of Input/Output Options: Experience a multitude of input/output options with the M30, supporting analog input via RCA ports, digital input via Coaxial, Optical, USB-A, USB-B, USB-C, and Ethernet LAN cable. The extensive headphone output includes 4-Pin XLR, 4.4mm, 2.5mm, 3.5mm PRO Balanced, and 6.35mm/3.5mm single-ended ports.

Specifications:

Size & Weight
Dimensions :213mm*258mm*50mm
Weight: 3kg

Digital Player Module
Screen: 6-inch 1080-1920 Touch screen
System : Closed Android
Supported formats: DSF/DFF/ISO/ DXD/ APE /FLAC/WAV/AIFF/AIF/DTS/MP3/WMA/ACC/OGG/ALAC/MP2 / M4A/ AC3/ M3U/M3U8
Hi-Res support: Up to 32 bit/768 kHz DSD 512
Storage: MicroSD card slot, up to 2TB
Connection: Wifi & Bluetooth 4.1
Bluetooth Receiver: LDAC、SBC
Bluetooth transmitter: LHDC、aptX HD、aptX
Other functions: Over-the-Air Updates / DSD Upsampling / MQA decoding

DAC Module
DAC chip: AKM AK4497 x 2
Digital filter: 6 user selectable filters

Tube Module
Tubes: KORG 6P1 x 2

Battery
Mode: Panasonic 18650x 5
Total capacity: 16 500 mAh
Battery life:
Single -ended/Single DAC 17.5h
Single- ended/DualDAC 14.5h
Balanced: 12.5 h

Single-Ended output
Bypass:
Output Power:
Low gain 12.7 mW @32Ω
Medium gain 49 mW @32 Ω
High gain 195mW@32Ω
Turbo gain 500 mW @32Ω

Frequency response:20 Hz-50kHz
THD+N:0.0045%@32Ω
Channel separation:71dB@32Ω
Dynamic range: 121dB@32Ω
Signal to noise ratio: 121dB@32Ω
Output impedance: <0.8Ω

Transistor
Output Power:
Low gain12.7mW@32Ω
Medium gain 49 mW @32Ω
High gain195mW@32Ω
Turbo gain 500mW @32Ω
Frequency response:20Hz- 50kHz
THD+N:0.0013% @32Ω
Channel separation: 71dB@32Ω
Dynamic range: 115dB@32Ω
Signal to noise ratio:115dB@32Ω
Output impedance: <0.8Ω

Tube
Output Power:
Low gain 12.7 mW @32Ω
Medium gain 49 mW @32Ω
High gain195mW@32Ω
Turbo gain 500 mw @32Ω
Frequency response: 20 Hz-50 kHz
THD+N: 0.4%@32 Ω
Channel separation: 71dB@32Ω
Dynamic range: 98dB@32Ω
Signal to noise ratio: 98dB@32Ω
Output impedance:<0.8Ω

Balanced output
Output Power:
Low gain 45mW@32Ω
Medium gain 180mW@32Ω
High gain 720mW@32Ω
Turbo gain 1530 mW@32Ω
Frequency response: 20Hz-50kHz
THD+N: 0.00045%@32Ω
Channel separation: 107dB@32Ω
Dynamic range: 123dB@32Ω
Signal to noise ratio: 123dB@32Ω
Output impedance: <1.6Ω

Transistor
Output Power:

Low gain45mW@32Ω
Medium gain 180 mW @32 Ω
High gain 720mW@32Ω
Turbo gain 1530 mW@32Ω
Frequency response: 20 Hz-50kHz
THD+N: 0.0005%@32Ω
Channel separation: 106dB@32Ω
Dynamic range: 119dB@32Ω
Signal to noise ratio: 119dB@32Ω
Output impedance: <1.6Ω

Tube
Output Power:
Low gain 45 mW@32Ω
Medium gain 180mW@32Ω
High gain 720mW@32Ω
Turbo gain 1530 mW@32Ω
Frequency response: 20Hz-50kHz
THD+N: 0.4%@32Ω
Channel separation: 100dB@32Ω
Dynamic range: 102dB@32Ω
Signal to noise ratio: 102dB@32Ω
Output impedance:<1.6Ω

RCA output
Output level
Bypass: 2.6V
Transistor: 2.18V
Tube: 2.0V
Frequency response: 20 Hz- 50 kHz
THD+N
Bypass: 0.0005%@32Ω
Transistor: 0.0018@32Ω
Tube: 0.6%@32Ω
Signal to noise ratio
Bypass: 121dB@32Ω
Transistor: 116dB@32Ω
Tube: 99dB@32Ω

XLR output
Output level
Bypass: 5.2 V
Transistor: 4.3 V
Tube: 4.15V

Frequency response: 20 Hz-50kHz
THD+N:
Bypass: 0.0003% @32Ω
Transistor: 0.0004% @32Ω
Tube: 0.6%@32Ω

Signal to noise ratio
Bypass:124dB@32Ω
Transistor: 119dB@32Ω
Tube:102dB@32Ω
