SMSL DO200 MKII MQA CD Player and Digital Media Center with Dual ES9068AS, I2S, AES/EBU, and Bluetooth LDAC

Regular price: $3,750.78
Regular price
Sale price: $3,750.78

Shipping calculated at checkout.

Product variants:

Product Highlights

· Dual ESS ES9068AS DAC with five OPA1612A op-amps achieving -122 dB THD+N

· CD player with AES/EBU and USB inputs for physical and digital sources

· I2S, dual AES/EBU, coaxial, and optical digital outputs

· Full MQA and MQA-CD decoding with 8x expansion up to 384 kHz

· 10 MHz clock input with auto-adapting 50/75 Ohm impedance

· 44.1/48 kHz clock output for system-wide synchronization

· Bluetooth 5.1 with LDAC 24-bit/96 kHz, aptX HD, AAC, SBC

· Low-noise power supply with discrete components and built-in shielding

· High-resolution color IPS display with screen off function

· USB firmware upgrade support with full-function remote control

· CNC-machined non-magnetic aluminum alloy chassis, 3.52 kg

CD Player, DAC, and Digital Media Hub

The SMSL DO200 MKII is a versatile MQA-enabled digital media center that combines a precision CD player, a high-performance dual ES9068AS DAC, and a comprehensive digital hub into a single elegant chassis. With AES/EBU and USB inputs, I2S, dual AES/EBU, coaxial, and optical outputs, a 10 MHz clock input and 44.1/48 kHz clock output for system-wide synchronization, Bluetooth 5.1 with LDAC, and five OPA1612A operational amplifiers delivering THD+N as low as -122 dB, the DO200 MKII serves as the command center for any high-end digital audio system.

Dual ESS ES9068AS DAC with -122 dB THD+N

Two ESS Technology ES9068AS converter chips operate in precision-matched configuration, achieving THD+N as low as -122 dB. Paired with five TI OPA1612A operational amplifiers and extensive audio-grade passive components, the DO200 MKII delivers reference-level digital-to-digital conversion with exceptional clarity and detail.

MQA Full Decoding with 8x Expansion

Full MQA and MQA-CD hardware decoding is available across all digital inputs, with up to 8x expansion reaching 384 kHz (SPDIF limited to 192 kHz). Whether playing MQA-encoded CDs or streaming high-resolution content, the DO200 MKII unfolds every layer of the original master with studio-authenticated precision.

CD Player with AES/EBU and USB Inputs

Beyond its DAC capabilities, the DO200 MKII features a built-in CD transport mechanism. Inputs include USB (asynchronous 2.0), Bluetooth 5.1, CD player, and AES/EBU, making it a true multi-source digital hub capable of handling physical media, computer audio, wireless streaming, and professional digital sources.

Comprehensive Digital Outputs

Four digital output types provide maximum system flexibility: I2S (HDMI LVDS) for direct connection to compatible DACs, dual AES/EBU outputs for professional digital chains, and coaxial and optical SPDIF for wide compatibility.

10 MHz Clock Input and 44.1/48 kHz Clock Output

A dedicated clock interface provides both input and output capability. The clock input accepts 44.1 kHz or 10 MHz reference signals with auto-adapting 50-ohm or 75-ohm impedance. The clock output automatically switches between 44.1 kHz and 48 kHz based on the playback file, enabling system-wide clock synchronization.

Bluetooth 5.1 with LDAC at 24-bit/96 kHz

Bluetooth 5.1 with LDAC support at 24-bit/96 kHz provides near-lossless wireless streaming. Additional codec support for aptX HD, aptX, AAC, and SBC ensures compatibility with any Bluetooth source device.

Low-Noise Power Supply and CNC Chassis

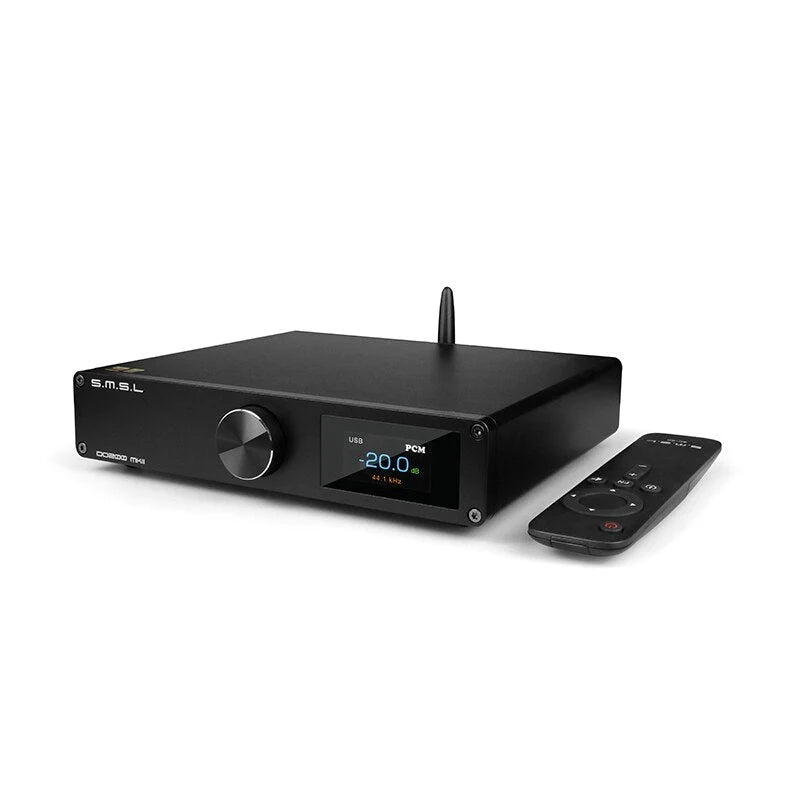

A specially designed low-noise power supply with discrete components and built-in shielding provides clean, stable power to all stages. The CNC-machined non-magnetic aluminum alloy chassis with tempered glass display panel provides excellent EMI shielding. A high-resolution color IPS display with screen-off function and full-function remote control complete the user experience.

USB Firmware Upgrade Support

The USB interface supports independent firmware upgrades, allowing SMSL to deliver performance improvements and feature additions over time. USB compatibility extends across Windows (7/8/8.1/10/11 with driver), macOS 10.6+, Android, iOS, and Linux (driverless).

Specifications
