SMSL PL20 Dual CS43131 CD Player with Bluetooth 5.3 and One-Touch CD Ripping

Dual CS43131 CD Player with Bluetooth 5.3, One-Touch CD Ripping, and USB Playback

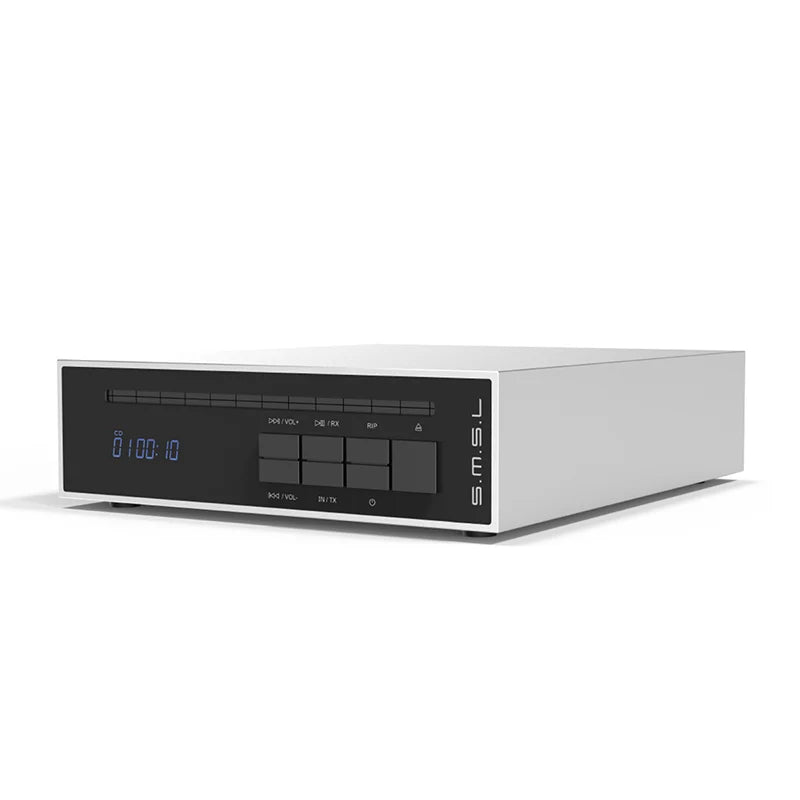

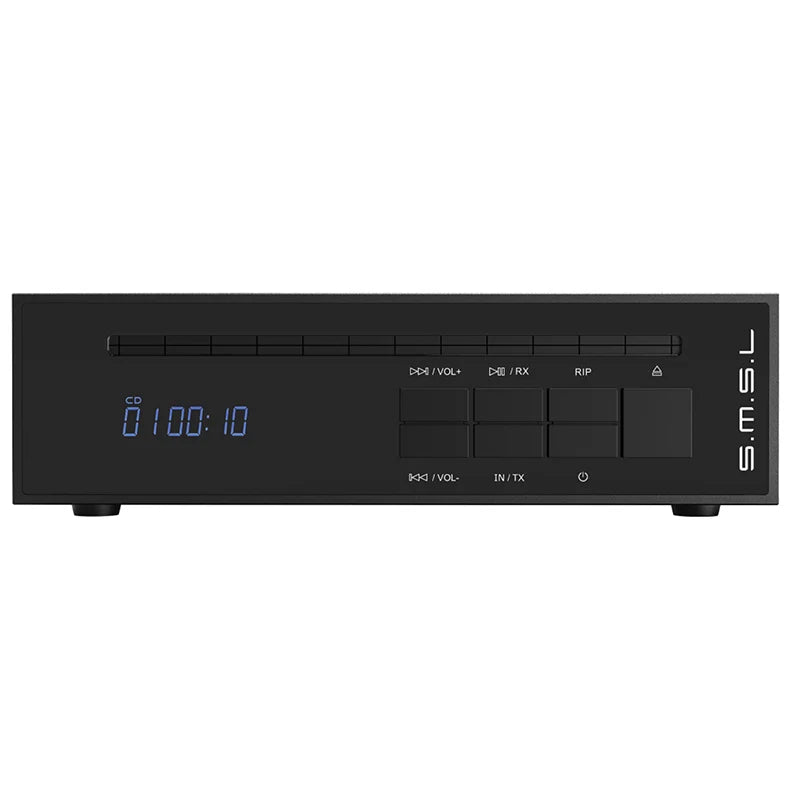

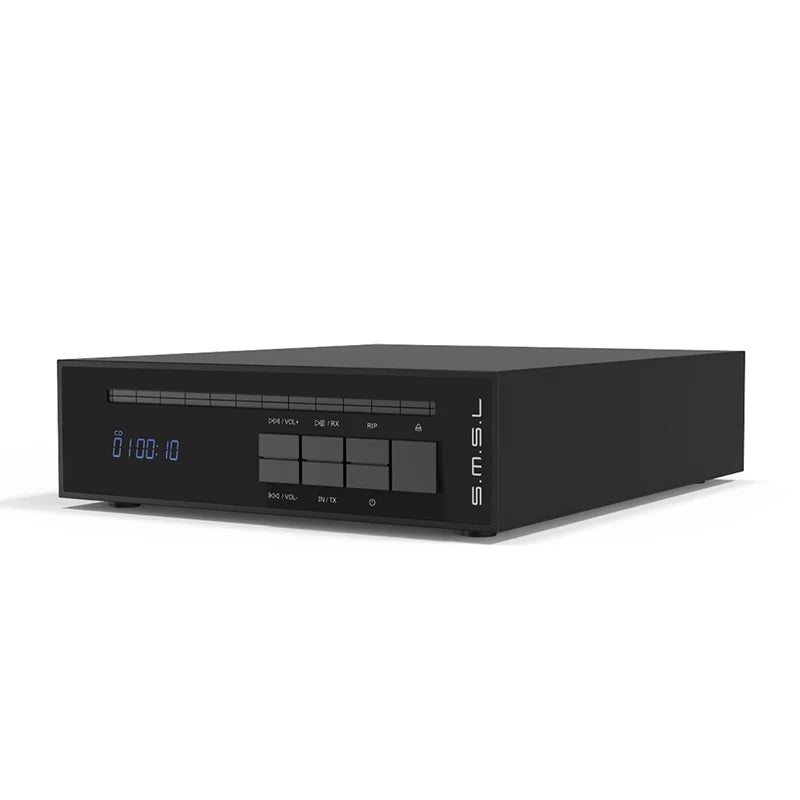

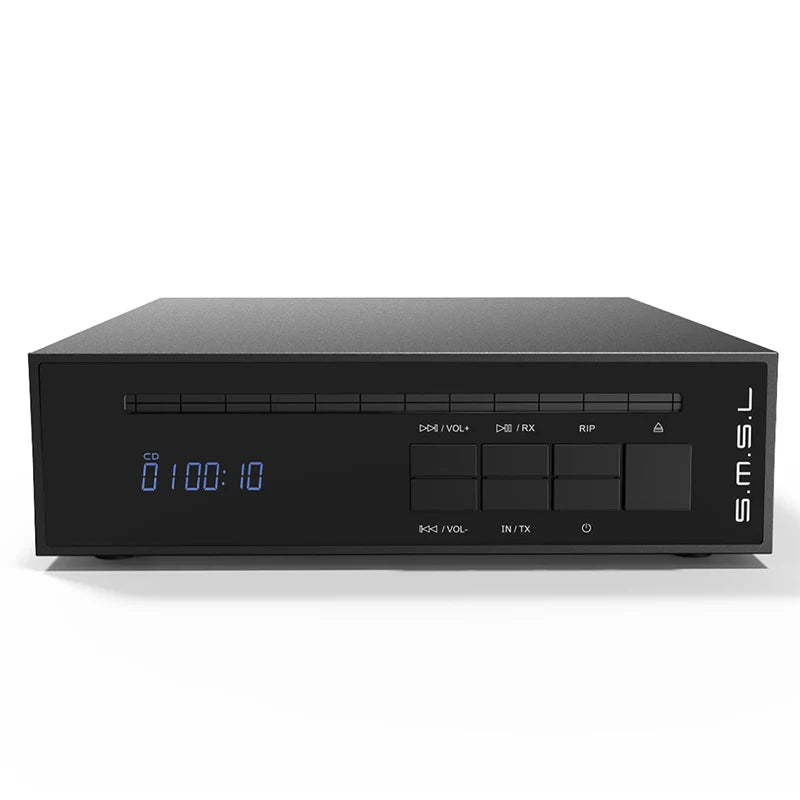

The SMSL PL20 is a versatile compact CD player that bridges the gap between physical media and modern digital convenience. Featuring dual Cirrus Logic CS43131 DAC chips for audiophile-grade sound quality, a slot-loading CD mechanism with one-touch ripping to lossless WAV format directly onto a USB flash drive, bidirectional Bluetooth 5.3 for wireless transmission and reception, and USB playback supporting DSD64, WAV, FLAC, APE, WMA, and MP3 formats, the PL20 delivers a complete CD listening and archiving solution in a precision CNC-machined aluminum alloy chassis with gold-plated connectors.

Dual Cirrus Logic CS43131 DAC Chips

At the heart of the PL20 are two Cirrus Logic CS43131 high-performance 32-bit DAC chips, delivering crystal-clear detail, enhanced bass response, and natural midrange reproduction. With THD+N as low as 0.0012%, an SNR of 98dB, and support for PCM up to 32-bit/768kHz over USB, the dual CS43131 architecture ensures every nuance of your music is faithfully reproduced.

One-Touch CD Ripping to Lossless WAV

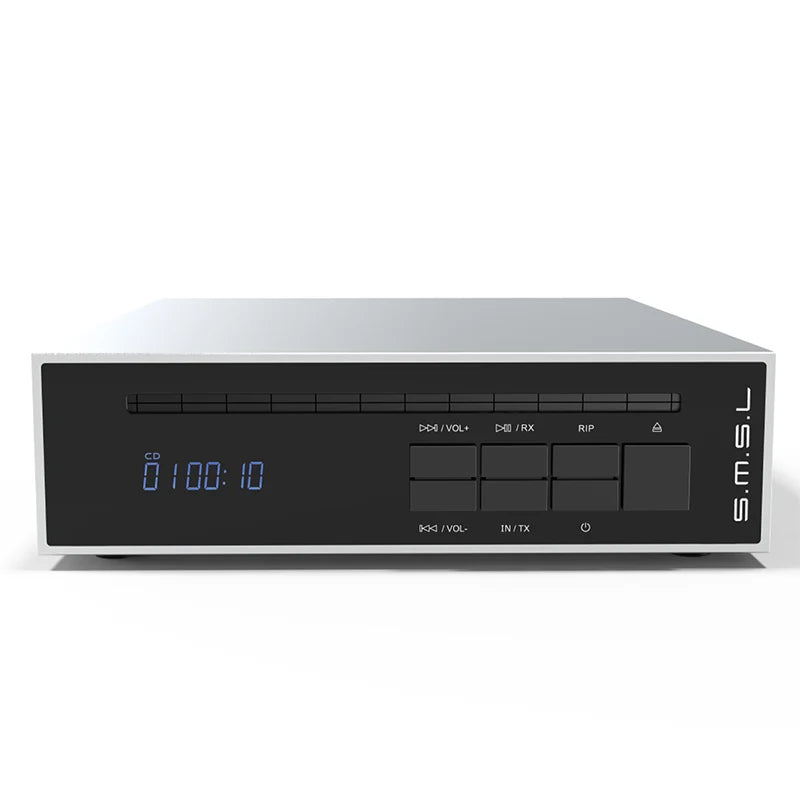

Preserve your CD collection effortlessly with the PL20's one-touch CD ripping function. Simply insert a CD, press and hold the RIP button for two seconds, and the PL20 extracts the entire disc to lossless WAV format directly onto a connected USB flash drive. No computer required -- the PL20 handles the entire process, making CD archiving faster and simpler than ever.

Bidirectional Bluetooth 5.3

Dual-way Bluetooth 5.3 functionality lets the PL20 operate as both a transmitter and receiver. Stream music wirelessly from your smartphone or tablet to the PL20 for playback through your audio system, or transmit CD audio to Bluetooth headphones and speakers for private, cable-free listening. Bluetooth 5.3 ensures a stable connection with improved range and power efficiency.

USB Playback with Wide Format Support

The front-panel USB-A port supports playback of DSD64 (DFF/DSF), WAV, FLAC, APE, WMA, and MP3 files from USB flash drives up to 256GB. Whether listening to high-resolution DSD rips or a curated playlist of lossless FLAC files, the PL20 provides bit-perfect playback with seamless device switching.

Dedicated Headphone Amplifier with Balanced Output

The PL20 features a built-in headphone amplifier with both 4.4mm balanced and 3.5mm single-ended outputs. The 4.4mm balanced output delivers 160mW at 32 Ohm for demanding headphones, while the 3.5mm output provides 40mW at 32 Ohm for IEMs and efficient headphones. Fifteen volume adjustment steps offer precise level control.

Comprehensive Digital and Analog Connectivity

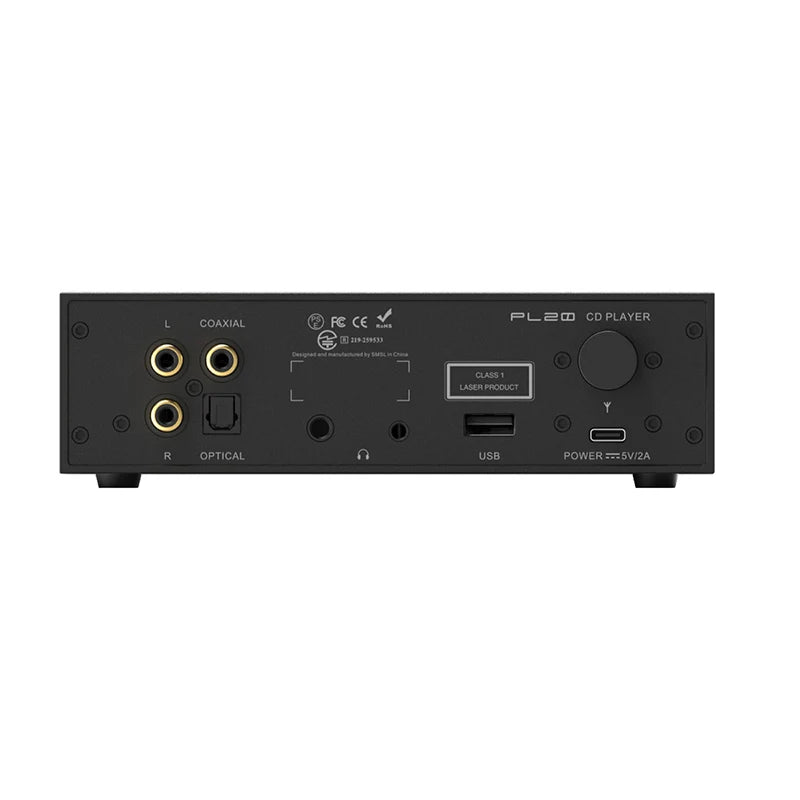

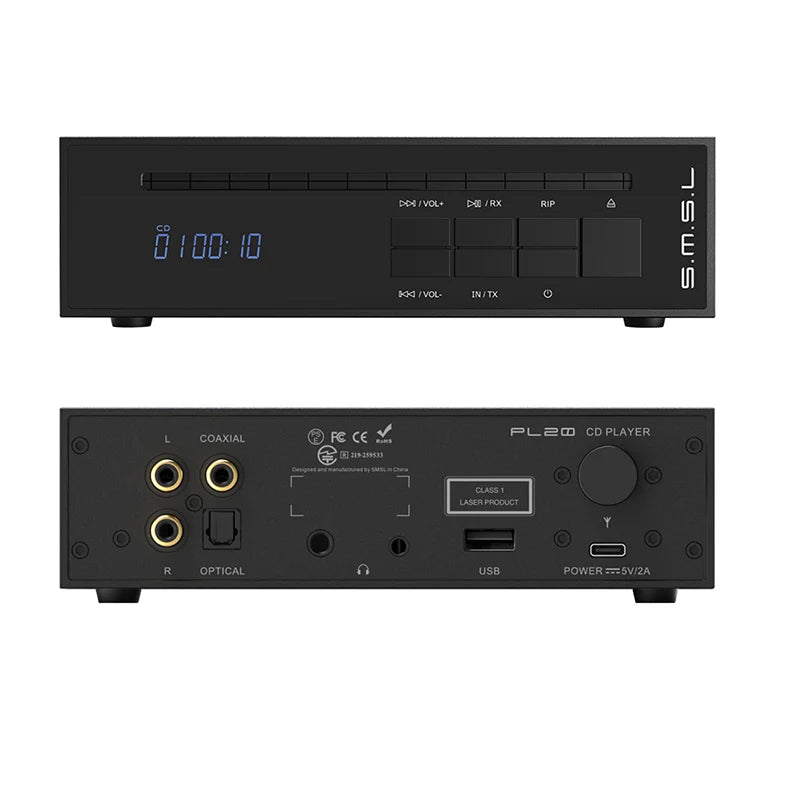

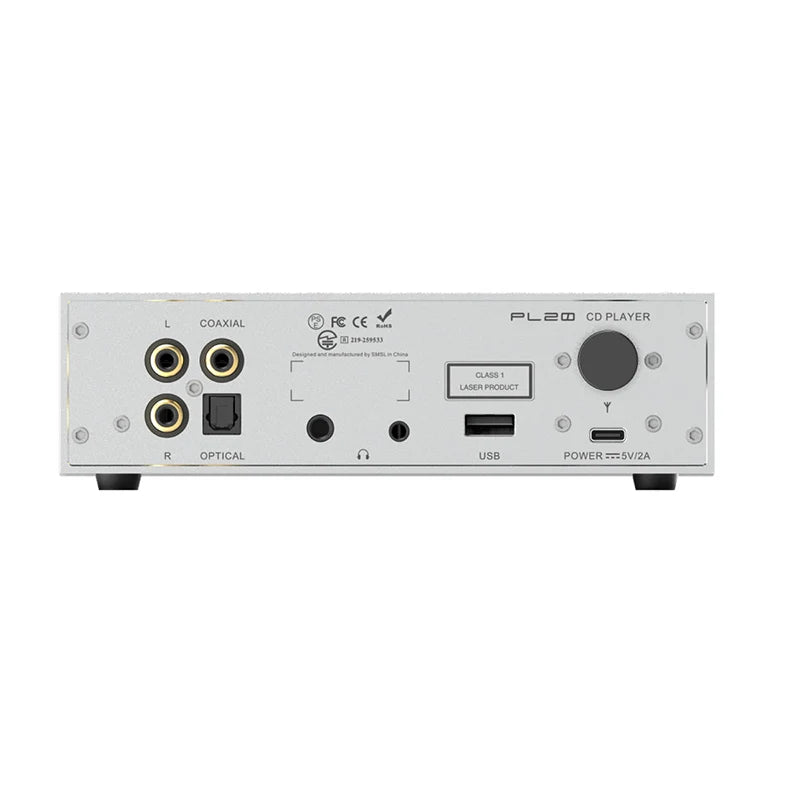

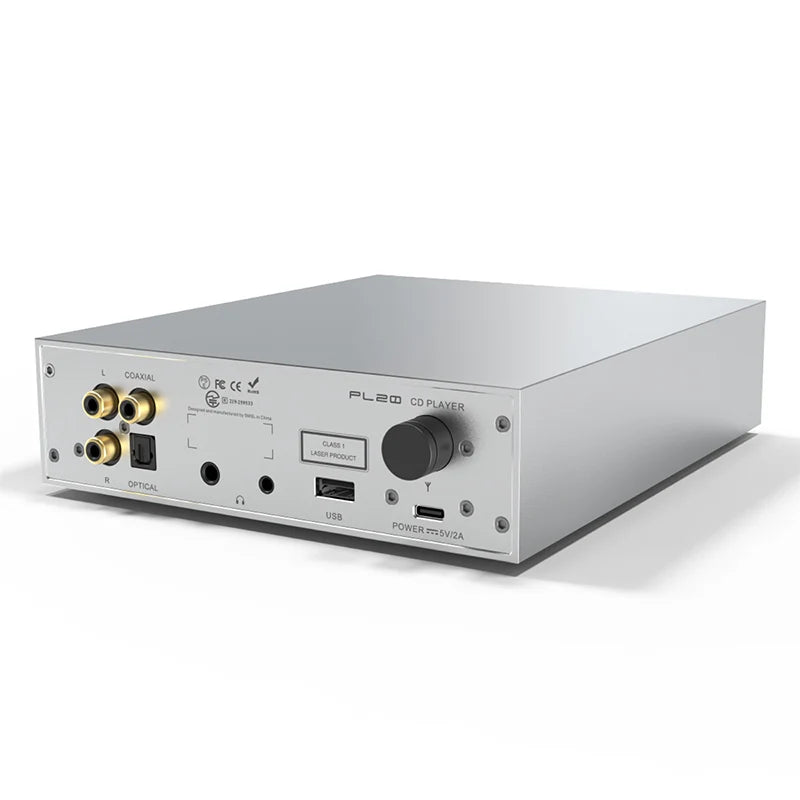

Stereo RCA line-out, optical (Toslink), and coaxial digital outputs provide flexible connection to amplifiers, powered speakers, and external DACs. The slot-loading CD mechanism supports CD-DA, CD-ROM, CD-R, CD-RW, CD-DSD, and MP3 CDs for broad compatibility with existing disc collections.

Precision CNC-Machined Aluminum Chassis

Crafted from CNC-machined aluminum alloy, the PL20 combines superior build quality with elegant aesthetics. Gold-plated input and output terminals ensure optimal signal transfer and long-term corrosion resistance. The compact footprint (166.3 x 49.5 x 209.3 mm) fits seamlessly into any desktop or Hi-Fi rack setup.

Specifications

• DAC Chips: Dual Cirrus Logic CS43131
• THD+N: 0.0012%
• SNR: 98dB
• CD Playback: CD-DA, CD-ROM, CD-R, CD-RW, CD-DSD, MP3 CDs (12cm)
• CD Loading: Slot-Loading with Auto-Clamp Mechanism
• CD Ripping: One-Touch to WAV on USB Flash Drive
• USB Playback Formats: DSD64 (DFF/DSF), WAV, FLAC, APE, WMA, MP3
• USB Drive Support: Up to 256GB (FAT32, exFAT, NTFS read-only)
• Bluetooth: 5.3 Bidirectional (TX and RX)
• Headphone Outputs: 4.4mm Balanced (160mW @ 32 Ohm) / 3.5mm SE (40mW @ 32 Ohm)
• Analog Output: Stereo RCA Line-Out
• Digital Outputs: Optical (Toslink) / Coaxial
• Power Input: 5V DC / 2A via USB-C
• Power Consumption: Less than 3.5W (Standby Less than 0.1W)
• Dimensions: 166.3 x 49.5 x 209.3 mm (W x H x D)
• Weight: Approx. 1.39 kg
• Chassis: CNC-Machined Aluminum Alloy with Gold-Plated Connectors

What's Included

• SMSL PL20 CD Player
• Remote Control
• USB-A to USB-C Cable
• User Manual
