SMSL PL200 MK2 All-in-One CD Player, DAC, and Headphone Amplifier with ESS ES9039Q2M and PLFC Balanced HP Amp

All-in-One: CD Player, Desktop DAC, and Headphone Amplifier

The SMSL PL200 MK2 is a three-in-one audio hub that combines a high-resolution CD player, a fully-featured desktop DAC, and a dedicated balanced headphone amplifier into a single, beautifully engineered chassis. Built around the ESS ES9039Q2M DAC chip with support for PCM 32-bit/768kHz, native DSD512, and up to 8x MQA unfolding, the PL200 MK2 delivers reference-grade digital-to-analog conversion alongside CD transport functionality, Bluetooth input and transmission, balanced XLR outputs, and SMSL's patented PLFC discrete headphone amplifier circuit — all measured and verified on an Audio Precision APx555B analyzer.

ESS ES9039Q2M DAC: Modern Flagship Performance

The ES9039Q2M is ESS Technology's latest-generation 32-bit DAC chip, delivering a measured dynamic range of 127 dB and signal-to-noise ratio of 127 dB through the balanced XLR outputs. THD+N is an astonishingly low 0.000079% (-122 dB, unweighted), placing the PL200 MK2 firmly in reference-class territory. With support for PCM up to 32-bit/768kHz, native DSD512, and up to 8x MQA unfolding, every format in your library is decoded with bit-perfect accuracy and rendered with the transparency this converter is capable of.

CD Transport Mode with Pure Digital Output

Engage Transport Mode and the PL200 MK2 disables its internal D/A conversion and headphone amplifier circuits, operating as a pure CD transport. Optical and coaxial digital outputs feed an external DAC with a pristine, jitter-free bitstream — perfect for integrating the PL200 MK2 into an existing high-end digital chain while retaining the tactile pleasure of physical disc playback.

Patented PLFC Fully-Balanced Headphone Amplifier

SMSL's proprietary PLFC discrete headphone amplifier circuit delivers 1.5 watts per channel into 16-ohm loads and 750 mW x 2 into 32 ohms through the balanced 4.4mm output. A 3.5mm single-ended output is also provided. Two selectable gain levels (Low +4 dB, High +8 dB) allow the PL200 MK2 to drive everything from sensitive IEMs to power-hungry planar magnetic headphones with authority and finesse.

Comprehensive Connectivity

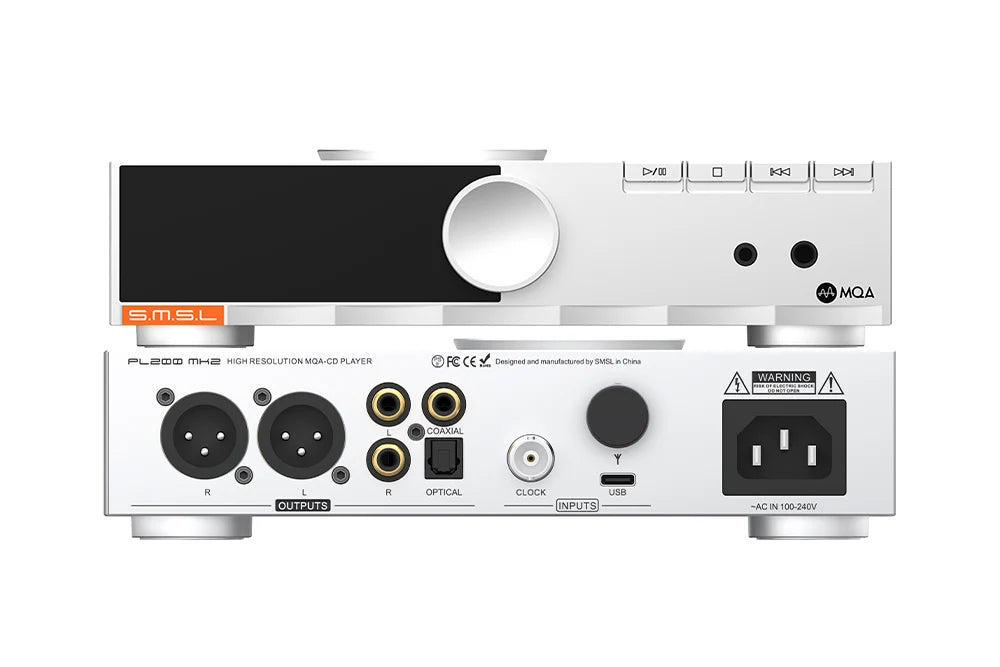

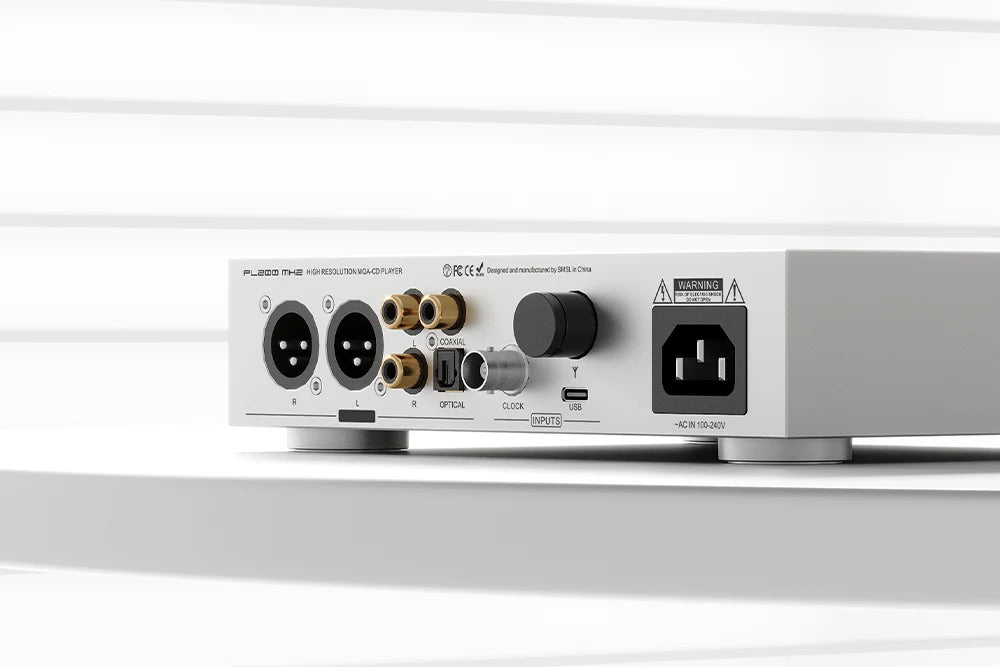

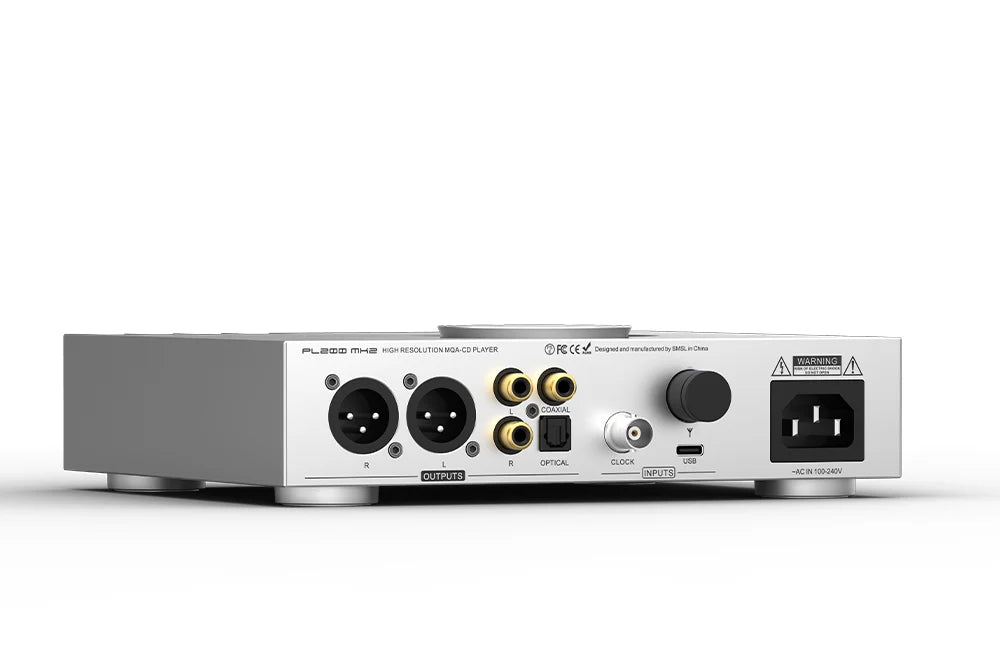

The rear panel is fully loaded: balanced XLR and single-ended RCA analog outputs, optical and coaxial digital outputs, USB-C audio input for DAC functionality, and an external clock input for synchronization with a reference clock generator. Input options include CD playback, USB-C DAC, and Bluetooth wireless reception. The PL200 MK2 also functions as a Bluetooth transmitter, sending audio wirelessly to Bluetooth headphones or speakers.

Qualcomm Bluetooth with LDAC and aptX HD

A Qualcomm Bluetooth 5.0 platform supports SBC, AAC, aptX, aptX HD, and LDAC codecs for high-resolution wireless reception. The PL200 MK2 also serves as a Bluetooth transmitter, allowing you to stream CD playback or any wired input source to Bluetooth headphones or speakers — a rare and genuinely useful feature for late-night listening or shared sessions.

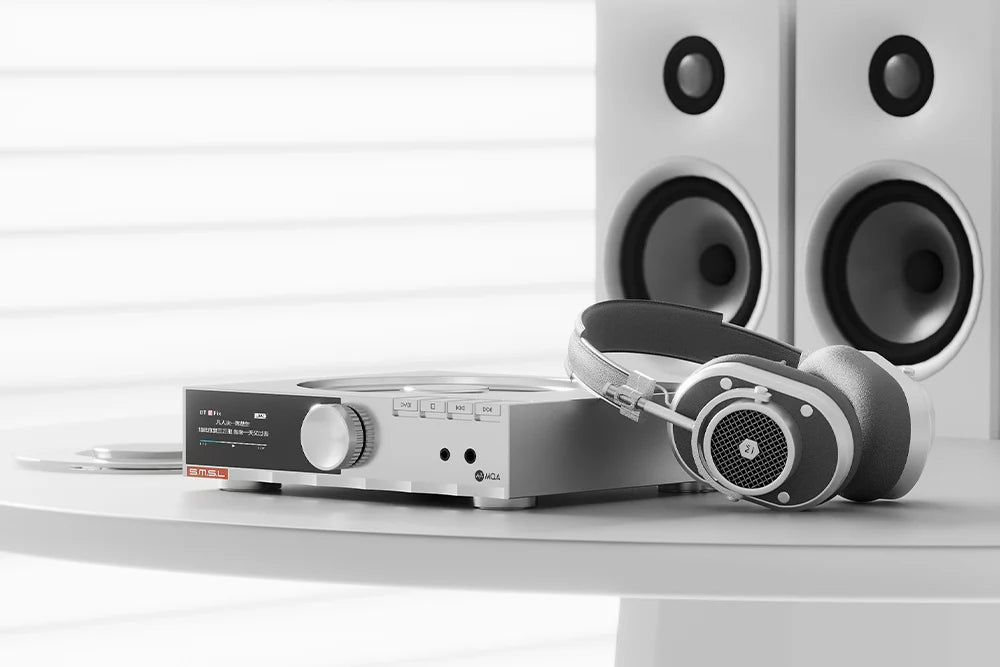

IPS Color Display with Lyric Synchronization

A bright, fully-laminated IPS color display presents playback status, audio format, sampling rate, and system information through a redesigned, intuitive user interface. During Bluetooth playback, the display supports synchronized lyrics, adding a visual dimension to your listening that is both informative and engaging.

Precision CNC Aluminum Chassis

The PL200 MK2 is housed in a precision-machined aluminum chassis with a transparent window that reveals the internal component layout. Multiple low-noise voltage regulator circuits ensure clean, stable power delivery to every stage — from the digital decoder to the analog output buffers.

Audio Precision APx555B Verified

Every PL200 MK2 is measured and verified using an Audio Precision APx555B analyzer, the industry-standard measurement system used by the world's leading audio manufacturers. The published specifications are not theoretical — they are independently measured and guaranteed.

Specifications

• DAC Chip: ESS ES9039Q2M (32-bit)
• Input: USB-C / Bluetooth / CD
• Outputs: RCA / XLR (Balanced) / 3.5mm HP / 4.4mm HP / Optical / Coaxial
• Bluetooth: Qualcomm 5.0 (SBC, AAC, aptX, aptX HD, LDAC) — Input and Transmitter
• MQA: Up to 8x Unfolding
• THD+N: 0.000079% (-122 dB, Unweighted)
• Dynamic Range (XLR): 127 dB
• Dynamic Range (RCA): 124 dB
• SNR (XLR): 127 dB
• SNR (RCA): 124 dB
• Headphone Gain: Low +4 dB / High +8 dB
• Headphone Output Power: 1.5W x 2 @ 16 Ohm / 750mW x 2 @ 32 Ohm / 160mW x 2 @ 150 Ohm / 80mW x 2 @ 300 Ohm
• External Clock: Supported
• Display: Fully-Laminated IPS Color Display with Lyric Sync
• Power Consumption: 10 W
• Standby Power: < 0.5 W
• Dimensions: 200 x 175 x 47.9 mm (7.9 x 6.9 x 1.9 in) (W x D x H)
• Weight: 1.579 kg (3.48 lbs)

What's Included

• SMSL PL200 MK2 CD Player / DAC / Headphone Amplifier
• Power Cable
• Remote Control
• User Manual
