SMSL PL200T MQA-CD Transport with P.A.S.S. Servo System, Clock Input, and I2S AES/EBU Digital Outputs

Reference CD Transport with Precision Clock Architecture

The SMSL PL200 T is a dedicated MQA-CD transport engineered for the purest possible digital signal extraction and delivery. Unlike integrated CD players, the PL200 T contains no internal DAC and no analog output stage — it is built from the ground up as a reference-grade digital source, designed to feed an external DAC through I2S, AES/EBU, coaxial, and optical outputs. With SMSL's self-developed P.A.S.S. servo system, a 44.1kHz word clock and 10MHz reference clock input, three selectable power supply modes, and full MQA-CD decoding, the PL200 T extracts every bit of information from the disc and delivers it with timing precision that transforms the performance of any downstream DAC.

P.A.S.S. Servo System for Disc Reading Precision

SMSL's proprietary P.A.S.S. (Precision Advanced Servo System) controls the CD mechanism with real-time feedback, actively compensating for disc eccentricity, surface imperfections, and mechanical vibration. The result is bit-perfect data recovery with dramatically reduced read errors and jitter — critical for a transport whose sole purpose is feeding an external converter with a pristine bitstream.

Full MQA-CD and MQA Decoding

The PL200 T provides native MQA-CD support with full MQA decoding capability. When paired with an MQA-enabled DAC, the transport passes the unfolded high-resolution audio data through its digital outputs. For standard CDs, the transport provides bit-accurate 16-bit/44.1kHz output — exactly as encoded on the disc, with no resampling or coloration.

Comprehensive Digital Outputs

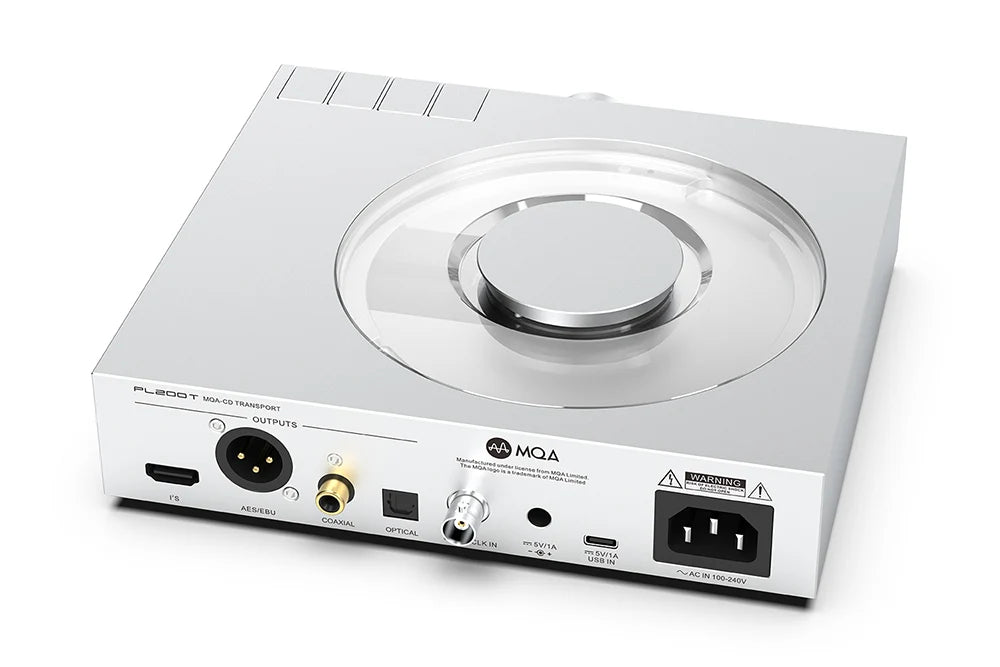

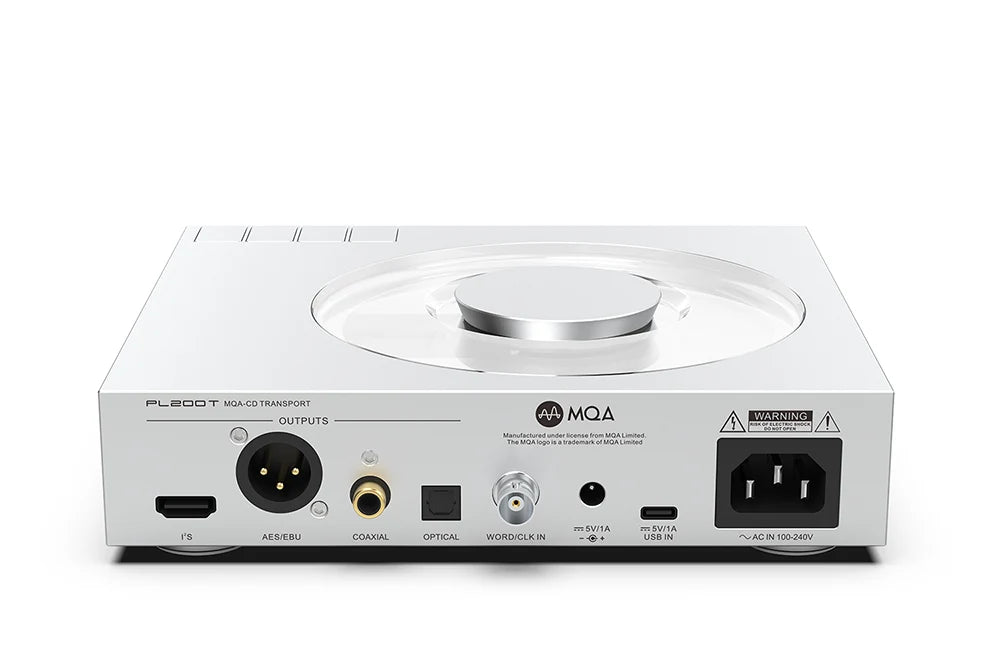

The rear panel is purpose-built for flexibility in high-end digital systems:

• I2S (HDMI LVDS): For the highest-quality direct digital connection to compatible DACs
• AES/EBU (XLR): Balanced 110-ohm professional digital output
• Coaxial (RCA): 75-ohm SPDIF for wide compatibility
• Optical (TOSLINK): Galvanically isolated for noise-free connection

Dual Clock Input with Impedance Matching

Precision timing separates a great transport from a merely competent one. The PL200 T accepts both a 44.1kHz word clock and a 10MHz reference clock (standard or atomic), with selectable 50-ohm or 75-ohm input impedance matching. When synchronized to an external master clock, the PL200 T achieves timing accuracy that rivals dedicated studio-grade transports.

Three Power Supply Modes

Flexibility extends to power delivery with three options:

• DC Input (5V/1A): Clean, dedicated power via the included adapter
• USB Input (5V/1A): Convenient power from any USB port
• AC Input: Direct mains connection for permanent installations

USB DAC Input for External Sources

Beyond CD playback, the PL200 T features a USB input that accepts PCM up to 32-bit/768kHz and DSD512 from a connected computer. This allows the PL200 T to serve as a digital hub, routing both CD and computer audio through its precision clock system to the selected digital output.

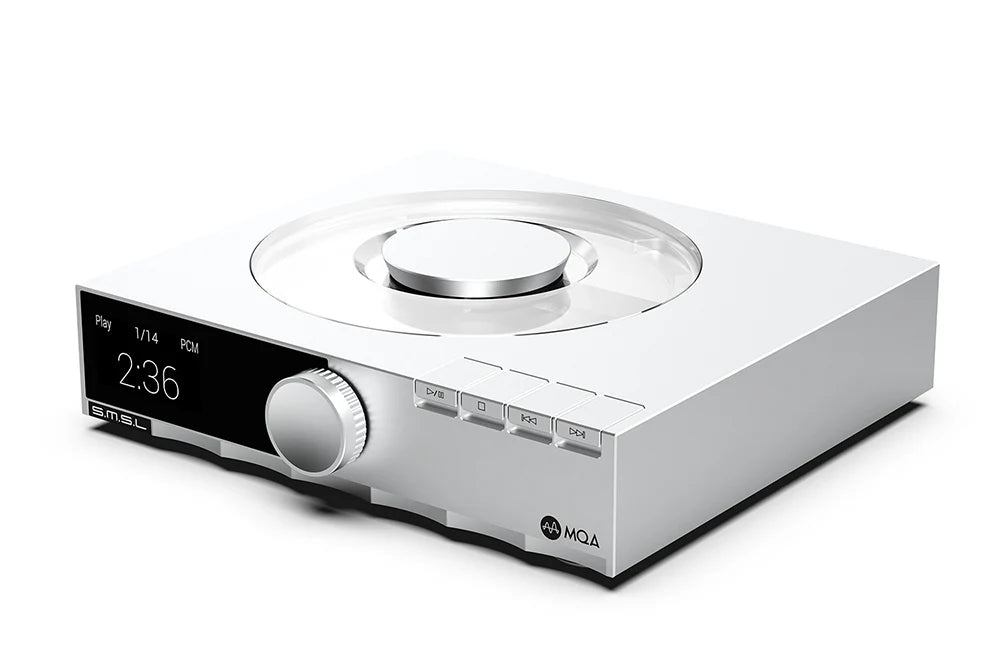

Fully-Laminated IPS Display

A tempered glass IPS display with a newly developed user interface provides clear, legible playback information — track number, time, format, and clock status. The display is fully laminated for improved contrast and viewing angles, matching the premium build quality of the transport itself.

CNC-Machined Aluminum Chassis

The PL200 T is housed in a chassis CNC-machined from a single block of aluminum, providing exceptional rigidity, vibration damping, and EMI shielding. Gold-plated digital output terminals ensure reliable, corrosion-resistant connections for years of critical listening.

Specifications

• Type: Dedicated CD Transport (No Internal DAC)
• Servo System: SMSL P.A.S.S. (Precision Advanced Servo System)
• MQA: MQA-CD and Full MQA Decoding
• Digital Outputs: I2S (HDMI LVDS) / AES/EBU (XLR) / Coaxial (RCA) / Optical (TOSLINK)
• USB Input: PCM 32-bit/768kHz, DSD512
• Clock Input: 44.1kHz Word Clock / 10MHz Reference Clock
• Clock Impedance: 50 Ohm / 75 Ohm (Selectable)
• Power Modes: DC 5V/1A / USB 5V/1A / AC Mains
• Standby Power: < 0.5 W
• Display: Fully-Laminated Tempered Glass IPS
• Chassis: CNC-Machined Aluminum
• Terminals: Gold-Plated
• Dimensions: 200 x 42 x 175 mm (7.87 x 1.65 x 6.89 in) (W x H x D)
• Weight: 1.62 kg (3.57 lbs)

What's Included

• SMSL PL200 T MQA-CD Transport
• Remote Control
• Power Adapter
• User Manual
