SMSL VMV D3 R-2R DAC MQA PCM1704 DSD512 Digital to Analog Convertor

The S.M.S.L VMV D3 redefines premium desktop DACs with its exceptional R-2R architecture, high-end digital filter chip, low-jitter clock system, and audiophile-grade components. This DAC stands as a testament to S.M.S.L's commitment to delivering top-tier audio experiences. With its unique technology, precise clocking, and refined components, the VMV D3 offers a listening journey that transcends expectations. Whether you're an avid audiophile or simply seeking unparalleled sound quality, the VMV D3 invites you to rediscover your favorite music in all its glory. Elevate your audio setup with the VMV D3 and experience music as it was meant to be heard.

Premium R-2R DAC Architecture: The VMV D3 boasts a classic resistor ladder array technology known as R-2R, typically reserved for top-tier products. With four PCM1704U-J R-2R chips (two for each channel), this DAC offers a fully balanced setup that not only enhances chip longevity but also maximizes their performance potential. Unlike conventional delta-sigma DACs, this approach offers a balanced design, enhancing audio quality.

High-End Digital Filter Chip: Equipped with the SM5847 digital filter chip, the VMV D3 provides multiple filter options for high-end audio processing, ensuring that your music is finely tuned to your preferences.

Low-Jitter Clock and Crystal Oscillators: The DAC incorporates two independent ACCUSILICONE crystal oscillators for precise clocking, complemented by ALTERA's high-speed CPLD processing. With VCXO, PLL technology, and support for external digital audio clock systems, the VMV D3 maintains an impeccable jitter-free clock arrangement.

Audiophile-Grade Components: S.M.S.L has spared no expense in outfitting the VMV D3 with high-quality components. Seven OPA1612 OPAMPs deliver clean, low-distortion output, while the power supply circuitry, featuring low-noise discrete components, ensures top-notch performance.

Top-of-the-Line Digital Filter: The DAC features the NPC SM5847 digital filter chip, offering 4/8-times oversampling, independent channel digital deemphasis filters, and soft muting function for high-performance audio.

16-Core USB Processor: Powered by the XMOS XU216 chip, this DAC supports bit-perfect audio from various inputs at impressive sampling rates of up to 32-bit/768kHz PCM and DSD512.

Isolated Power Supply: The D3 has an isolated power supply housed within its partitioned chassis, reducing interference and providing a cleaner audio system.

Ultra-Low Phase Noise Crystal Oscillators: Accusilicon's ultra-low phase noise crystal oscillators offer exceptional precision, low power consumption, resistance to thermal stress, and minimal jitter.

Convenient Remote Control: The fully functional remote control allows easy access to menu options, input selection, Bluetooth mode, and more, offering both style and convenience in a sleek all-aluminum design.

Specifications:

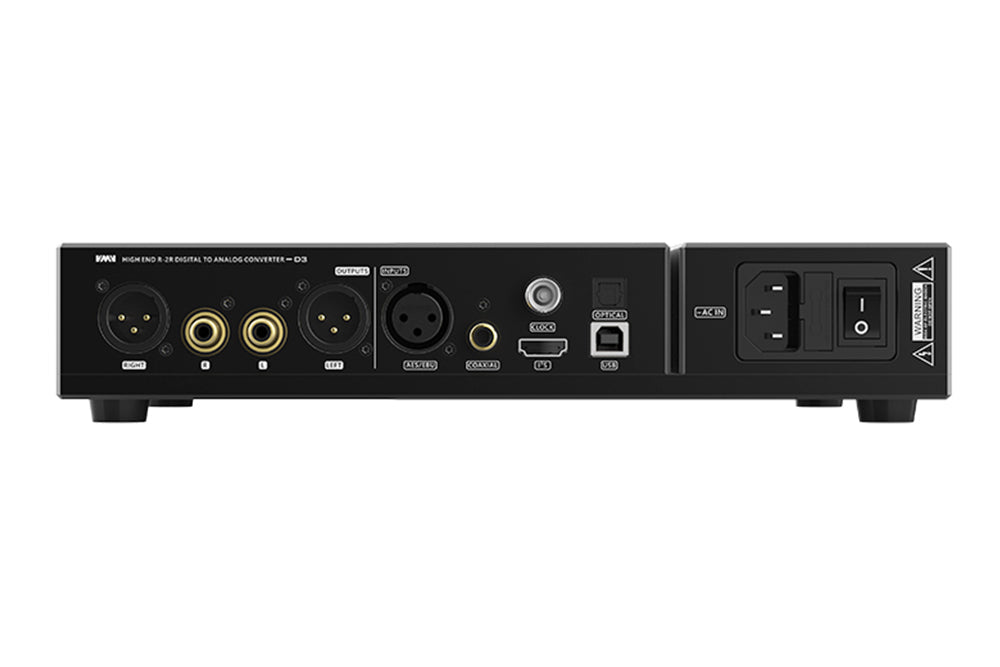

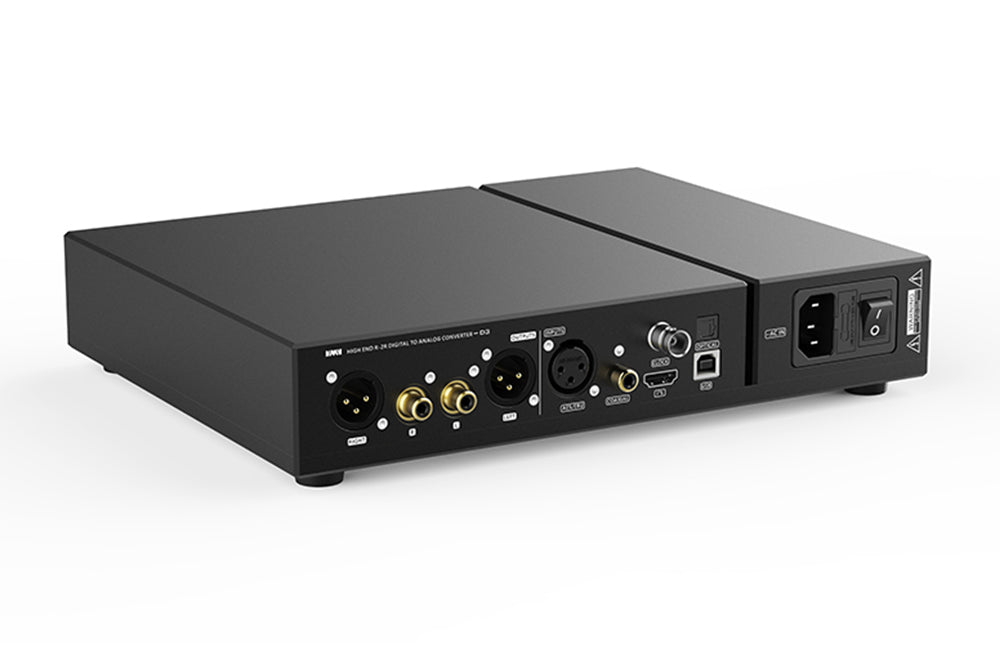

Inputs: USB/optical/coaxial/AES(EBU)Outputs: RCA/XLR
THD+N: 0.001%
Dynamic range: 112dB
SNR: 112dB
USB transmission: Asynchronization
USB compatibility: Windows 7/ 8/ 8.1/ 10, Mac OSC, Linus
Bit depth
USB/ I2S: 1bit, 16-32bit
Optical/coaxial/AES: 1bit, 16-24bit
Sampling rate
USB/I2S: PCM 44.1-768kHz, DSD: 2.8224 - 22.57923MHz
Optical/coax/AES: PCM 44.1-192kHz
Power consumption: 10W
Standby power: <0.8W
Size: 280x240x51mm
Weight: 3.96kg

Packing list:
SMSL VMV D3 DAC
USB cable
Power cord
User manual
Remote control
