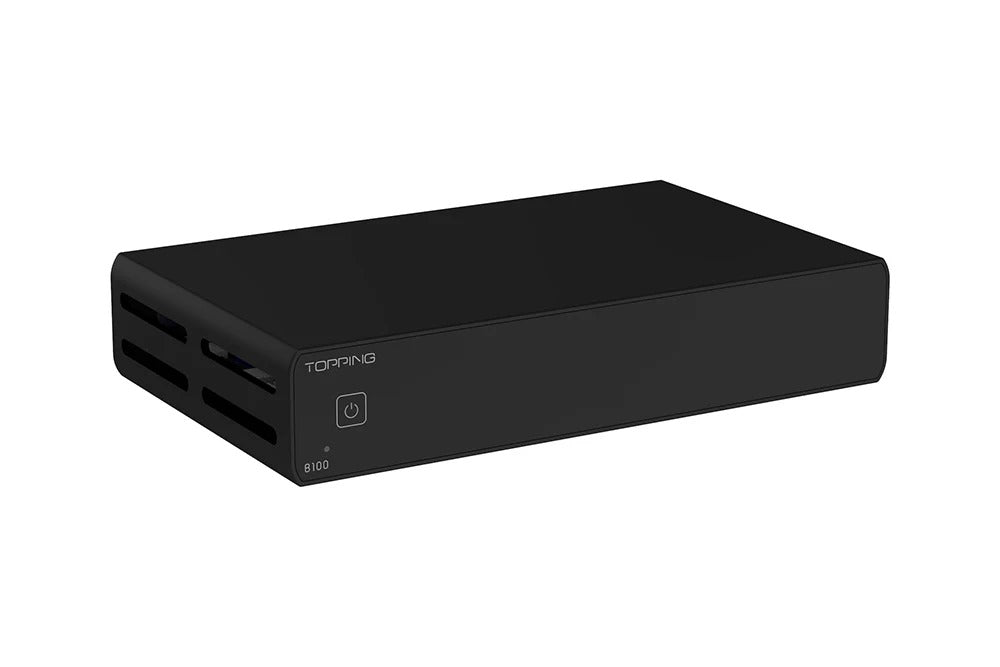

topping b100 speaker amplifier interface detail

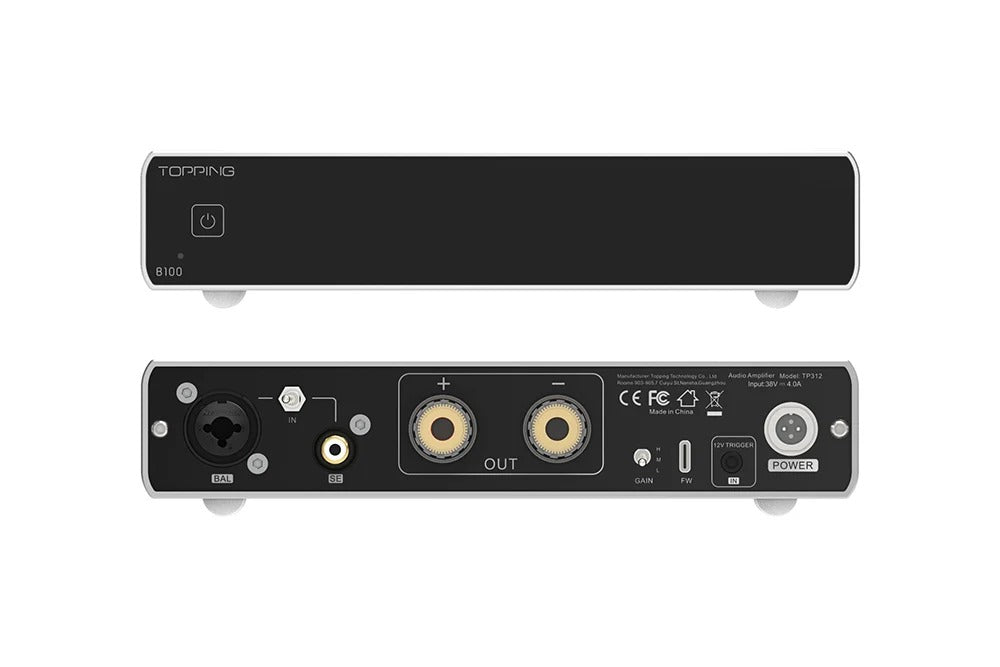

topping b100 speaker amplifier angle view

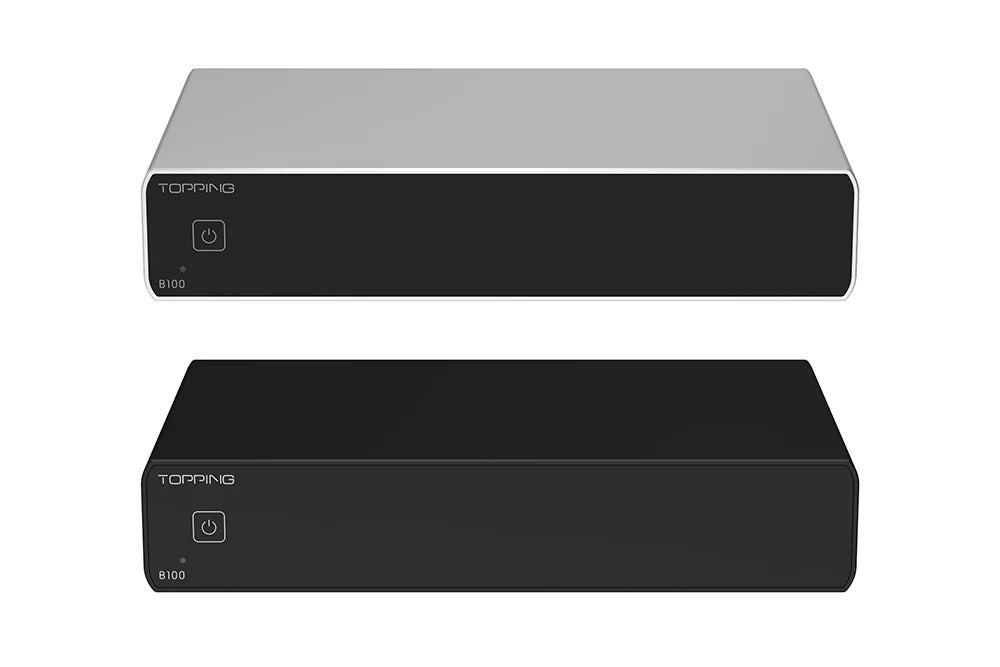

topping b100 speaker amplifier front view

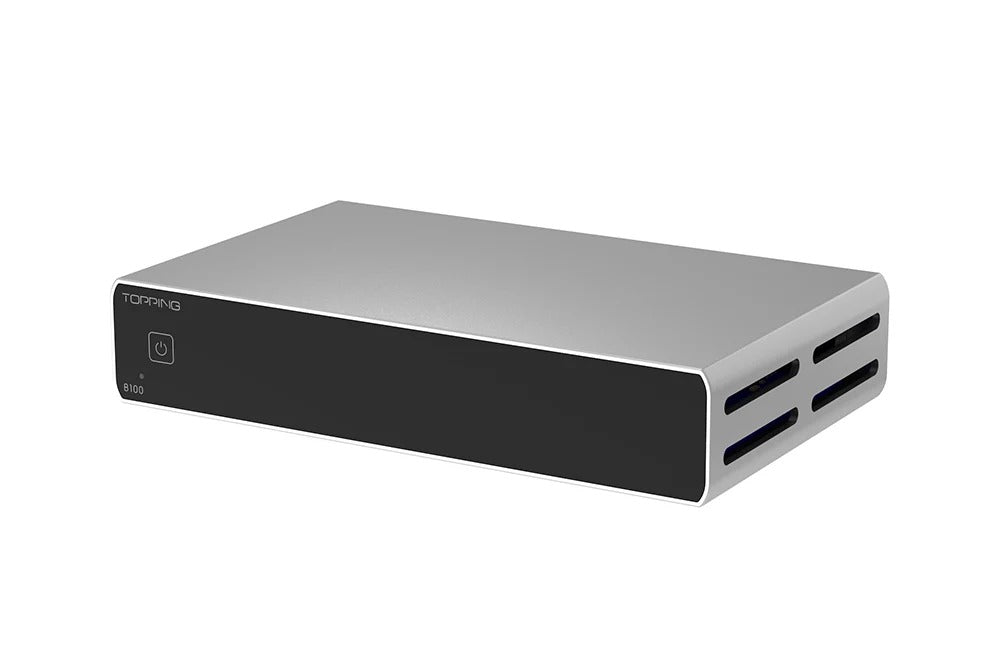

topping b100 speaker amplifier side view

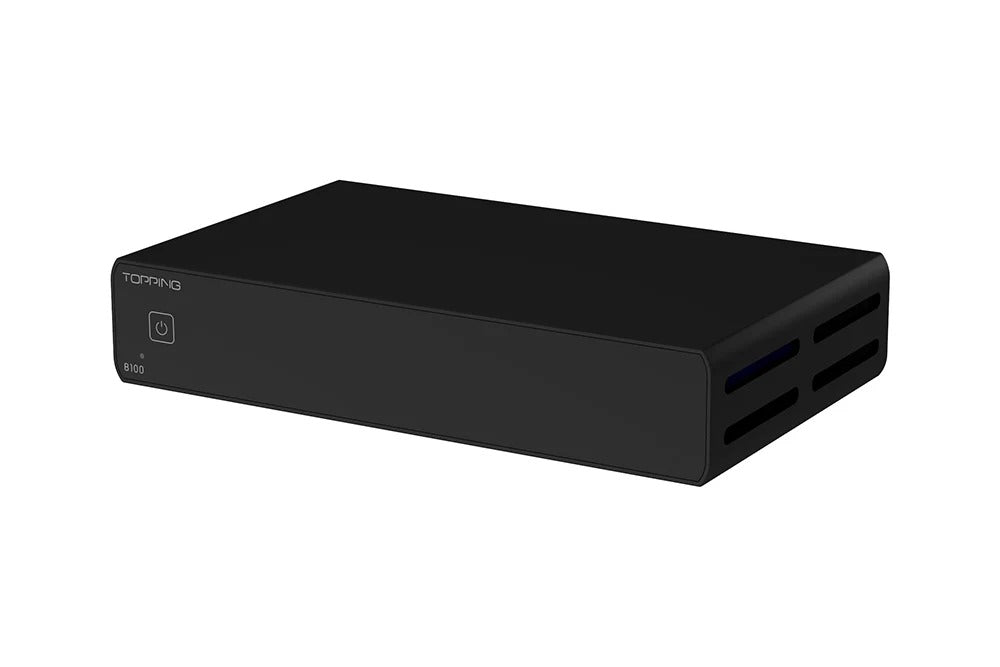

topping b100 speaker amplifier rear panel view

TOPPING B100 Mono Pure Power Amplifier

Regular price: $2,391.22
Regular price
Sale price: $2,391.22

Shipping calculated at checkout.

Color: Black

Product variants:

Product Highlights

• T'ang-ku-la Module with three-stage feedback reduces noise and distortion, extending dynamic range to 151dB

• Mono pure power design dedicates one amplifier per channel for true stereo imaging (two units per stereo system)

• 100W @4Ω output with THD below 0.00007% for clean, powerful sound

• 151dB SNR and dynamic range for precision detail reproduction

• Three gain adjustments (High/Medium/Low) to match any speaker

• Seamless integration with TOPPING E70 and E70 Velvet DACs via XLR, TRS or RCA

• 12V trigger input links power on/off with other devices

• Available in Black and Silver finishes

TOPPING B100 Mono Pure Power Amplifier

The TOPPING B100 is a mono pure power amplifier that dedicates one amplifier per channel, minimizing crosstalk and interference while maximizing channel separation for true stereo imaging. Built around the innovative T’ang-ku-la Module with a 151dB dynamic range, the B100 delivers 100W into 4Ω with distortion below 0.00007% – clean, consistent power for demanding passive speakers. (Note: two units are required for a stereo system.)

T’ang-ku-la Module – 151dB Dynamic Range

The T’ang-ku-la Module uses a three-stage feedback circuit that drastically reduces circuit noise and high-frequency distortion, delivering an outstanding 151dB dynamic range. Every note, from the faintest whisper to the deepest bass, comes through with stunning clarity and detail.

High Power, Ultra-Low Distortion

The B100 pushes 100W into a 4Ω load or 70-83W into 8Ω while holding THD below 0.00007% at 5W. Punchy, dynamic audio stays clean at any level – no distortion muddying the mix.

Three Gain Adjustments

A front-panel 3-step gain switch (High/Medium/Low) tailors the amplifier’s output to match your speakers and source, with BAL gains of 0dB / 10.4dB / 19.9dB and SE gains of 6dB / 16.4dB / 25.8dB.

Seamless Integration with E70 DACs

The B100 shares design language with the TOPPING E70 and E70 Velvet DACs, connecting via XLR, TRS balanced, or RCA cables for a flexible, cohesive desktop stack.

12V Trigger – Synchronized Power

The 12V trigger input links power on/off with your other devices, letting the B100 wake and sleep in sync with your preamp, DAC, or source for a streamlined system.

Reference-Grade Detail Reproduction

With an SNR and dynamic range of 151dB (balanced), the B100 captures subtle changes in notes with precision, delivering music free from noise, distortion, and coloration.

Specifications

Amplifier Architecture: Mono pure power amplifier (one per channel; two required for stereo)
Amplifier Module: T’ang-ku-la Module with three-stage feedback circuit
Output Power: 100W @4Ω (THD+N<1%); 70W @8Ω (THD+N<1%); 83W @8Ω (THD+N<10%)
THD+N @1kHz (A-wt): <0.00008% @4Ω 5W / @8Ω 5W (BAL & SE)
THD @20-20kHz (90kBW): <0.00007% @4Ω 5W / @8Ω 5W (BAL & SE)
SNR (A-wt): 151dB (BAL) / 149dB (SE)
Dynamic Range @1kHz (A-wt): 151dB (BAL) / 149dB (SE)
Frequency Response: 20Hz-40kHz (±0.1dB) / 10Hz-100kHz (±0.5dB)
Output Level: 56Vpp @4Ω / 66Vpp @8Ω (BAL & SE)
AP Measured Noise (A-wt): BAL: <0.7µVrms (G=L) / <1.2µVrms (G=M) / <2.6µVrms (G=H); SE: <0.9µVrms (G=L) / <2.3µVrms (G=M) / <6.2µVrms (G=H)
Input Sensitivity: BAL: 8.6Vrms (G=M) / 3.0Vrms (G=H); SE: 4.3Vrms (G=M) / 1.5Vrms (G=H)
Gain: BAL: 0dB (G=L) / 10.4dB (G=M) / 19.9dB (G=H); SE: 6dB (G=L) / 16.4dB (G=M) / 25.8dB (G=H)
Output Impedance: <5mΩ (BAL & SE)
Input Impedance: 20kΩ (BAL) / 5kΩ (SE)
Load Impedance: ≥4Ω
Inputs: XLR / TRS balanced + RCA single-ended
Trigger: 12V trigger input
Chassis: Machined aluminum (Black / Silver)
