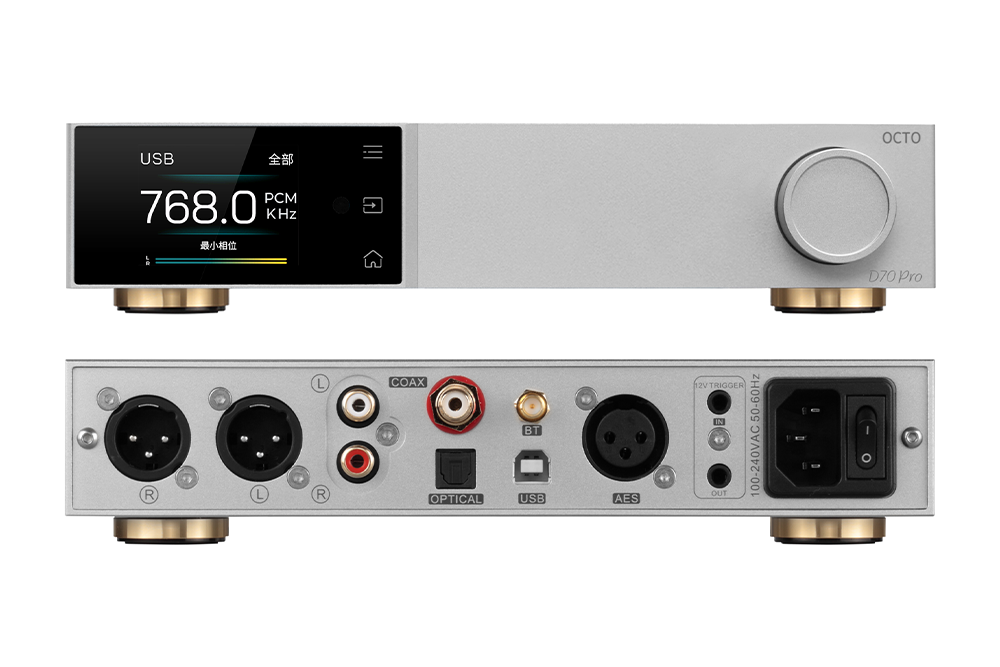

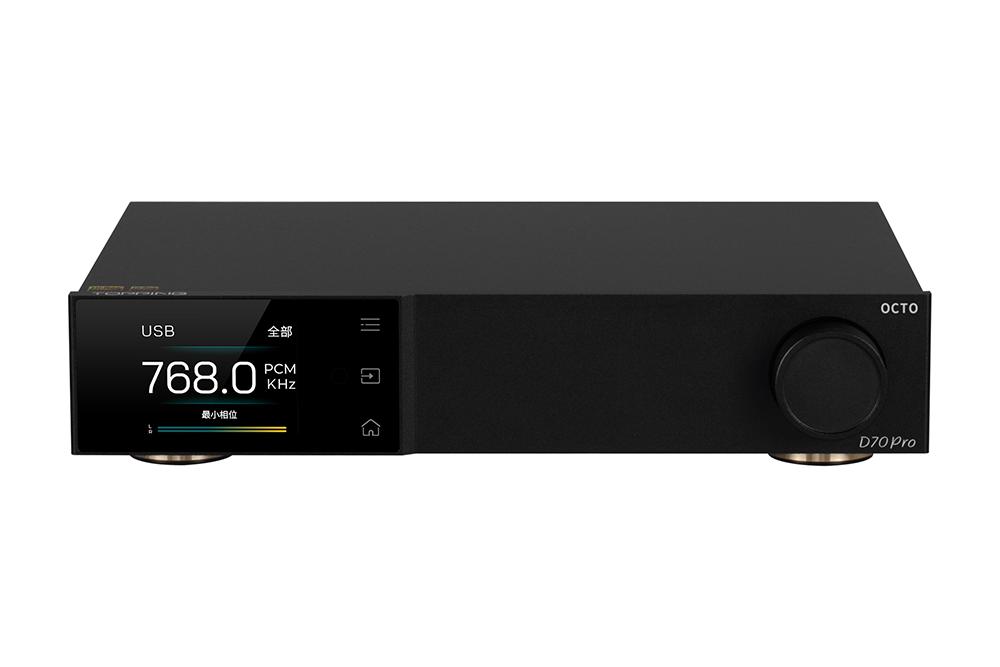

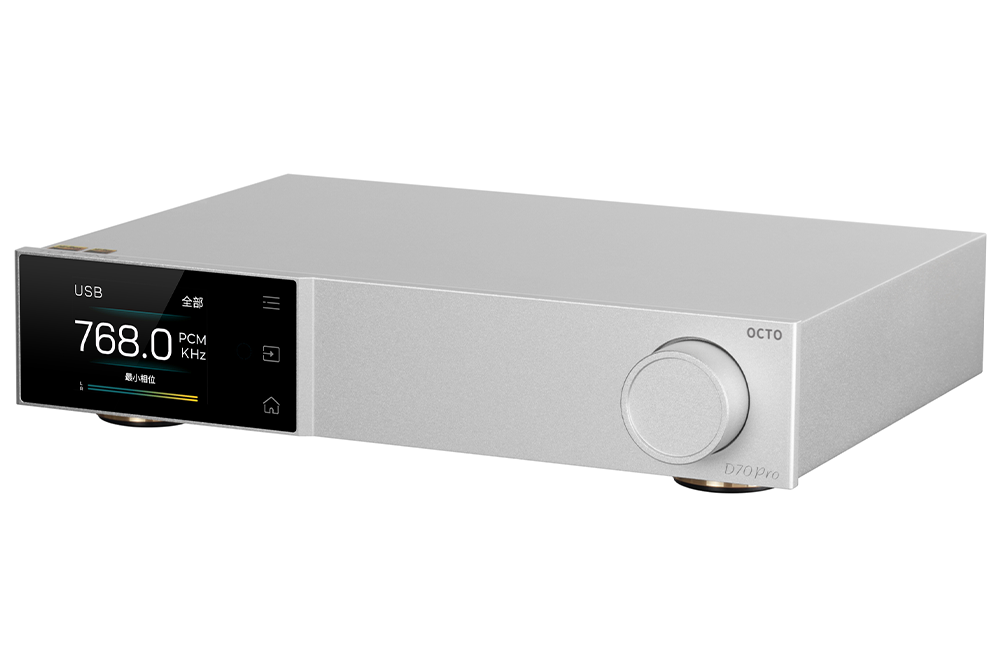

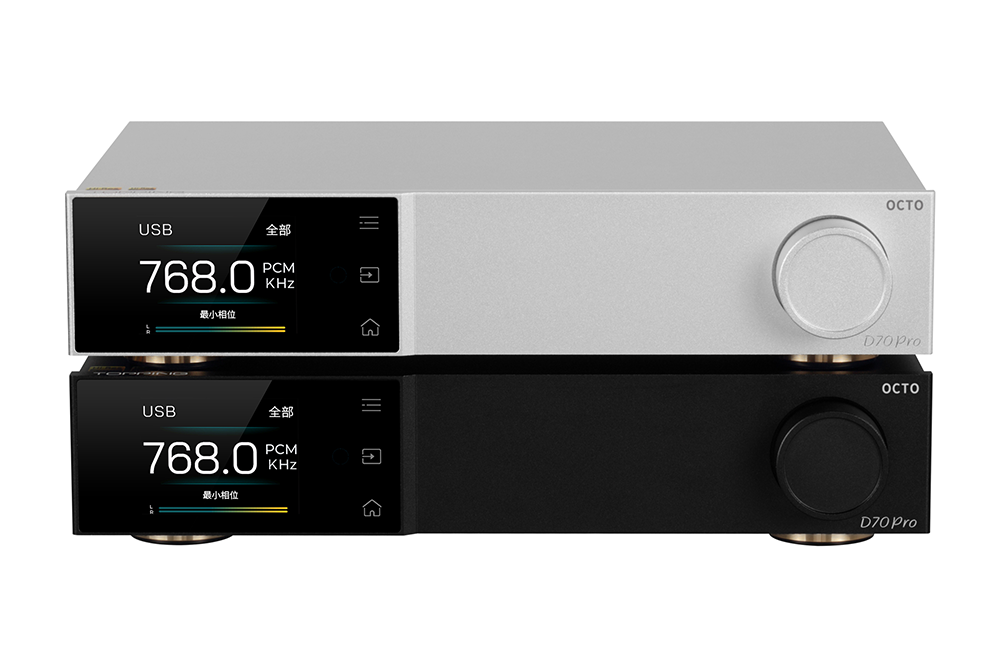

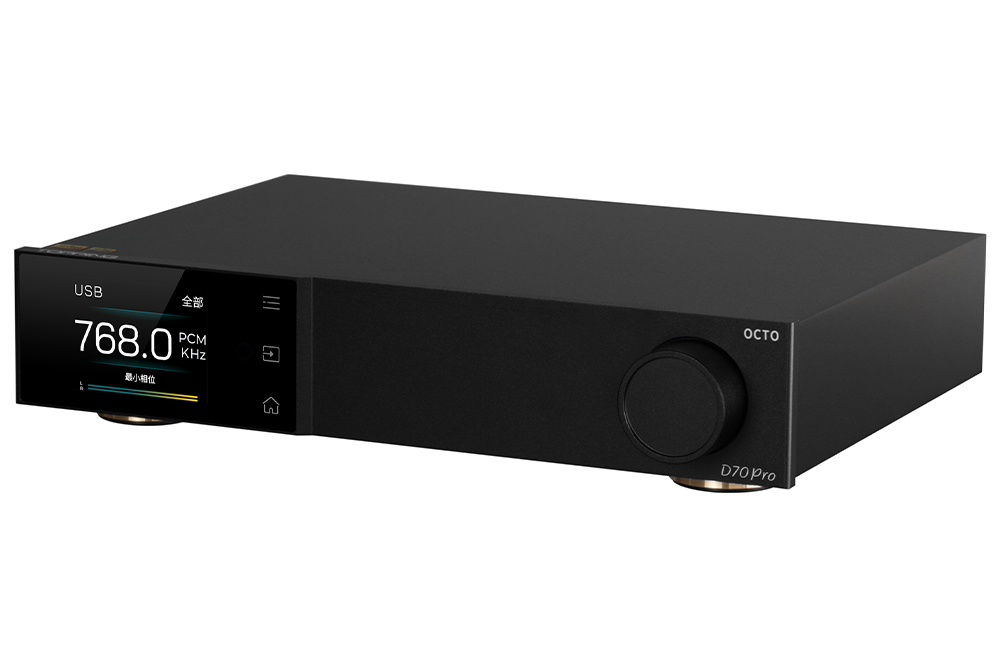

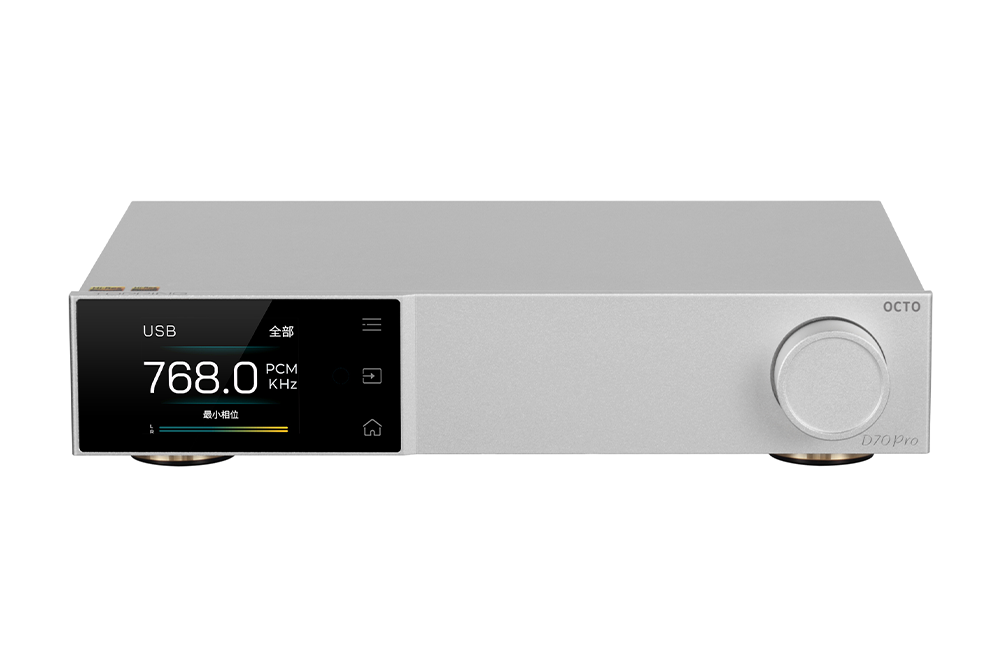

TOPPING D70 PRO OCTO DAC Eight CS43198 Bluetooth HiFi Digital to Analog Convertor

Elevate your audio experience with the Topping D70 Pro Octo, boasting a revolutionary eight-unit CS43198 DAC chip arrangement from Cirrus Logics. Immerse yourself in ultimate sound performance, blending ultra-low distortion and high SNR.

Ultimate DAC Performance: Experience music like never before with eight flagship CS43198 DAC chips. Achieve unparalleled detail and fidelity for a truly immersive listening experience. The D70 Pro Octo supports PCM768kHz/32bit and DSD512, setting a new standard in audio restoration. Uncover nuances and details in your music with unmatched precision. Immerse yourself in a superior music restoration experience.

Wireless Bluetooth Brilliance: Cut the cords without compromising quality. The D70 Pro Octo supports Bluetooth V5.1 with LDAC, AptX HD, AptX Adaptive, AptX, AAC, SBC, delivering high-quality wireless audio for a seamless listening experience.

Versatile Output Modes: Tailor your output with dual options—XLR balanced and RCA single-ended. Seamlessly switch between 5V and 4V outputs for versatility. The D70 Pro Octo adapts to your preferences effortlessly.

Integrated Pre-Amp Brilliance: Experience the best of both worlds. The D70 Pro Octo serves as a fixed DAC output and a preamp. Adjust volume directly and connect to active speakers or power amplifiers for added convenience.

Plug, Play, Enjoy: The D70 Pro Octo is ready to play on Windows 10, Windows 11, MAC, Linux, iOS/Android, and more. Effortless setup with stable XMOS XU316 and Thesycon custom driver for Windows ASIO applications.

Colorful Display, Intuitive UI: Immerse yourself in the vibrant display with Aurora UI. Customize your experience with different displays like FFT, VU meter, and more. Easily view active input modes, output settings, and decoding status for an intuitive user interface.

Perfect Harmony with A70 Pro: Pair the D70 Pro Octo with the A70 Pro for a perfect match in design and functionality. Experience synchronized switching and enhanced convenience for headphones or active speakers.

Specifications:
RCA
THD+N @A-wt: <0.00008% @1KHz
THD @No-wt 90kBw: <0.0004% @20-20kHz
SNR @A-wt: 128dB @1kHz
Dynamic Range @A-wt: 128dB @1kHz
Frequency Response:
20Hz-20kHz(+0.05dB)
20Hz-40kHz(+0.2dB)
Output Level
2.1 Vrms @0dBFS(4V Mode)
2.6Vrms @OdBFS(5V Mode)
Noise @A-wt: <1.0uVrms
Channel Crosstalk: -124dB @1kHz
Channel Balance: 0.3dB
Output Impedance: 50Ω
XLR
THD+N @A-wt: <0.00007% @1kHz
THD @No-wt 90kBw: <0.0002% @20-20kHz
SNR @A-wt: 134dB @ 1kHz
Dynamic Range @A-wt: 134dB @1kHz
Frequency Response:
20Hz-20kHz(+0.05dB)
20Hz-40kHz(+0.2dB)
Output Level
4.2Vrms @0dBFS(4V Mode)
5.2Vrms @OdBFS(5V Mode)
Noise @A-wt: <1.0uVrms
Channel Crosstalk: -149dB @1kHz
Channel Balance: 0.3dB
Output Impedance: 100Ω

Packing list:
D7 Pro Octo DAC
Remote control
USB cable
AC cable
Bluetooth antenna
