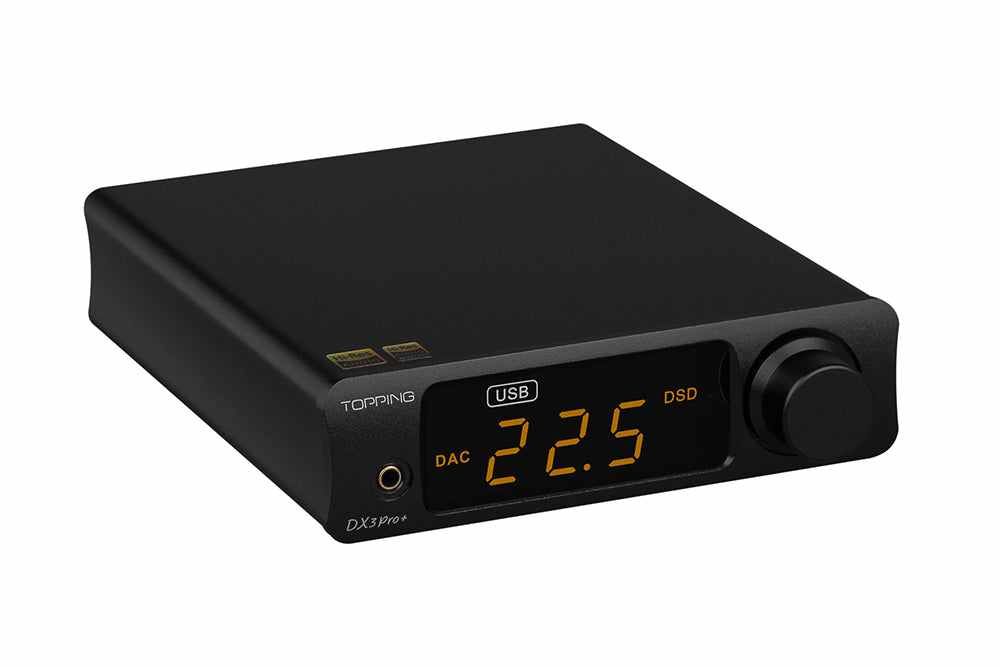

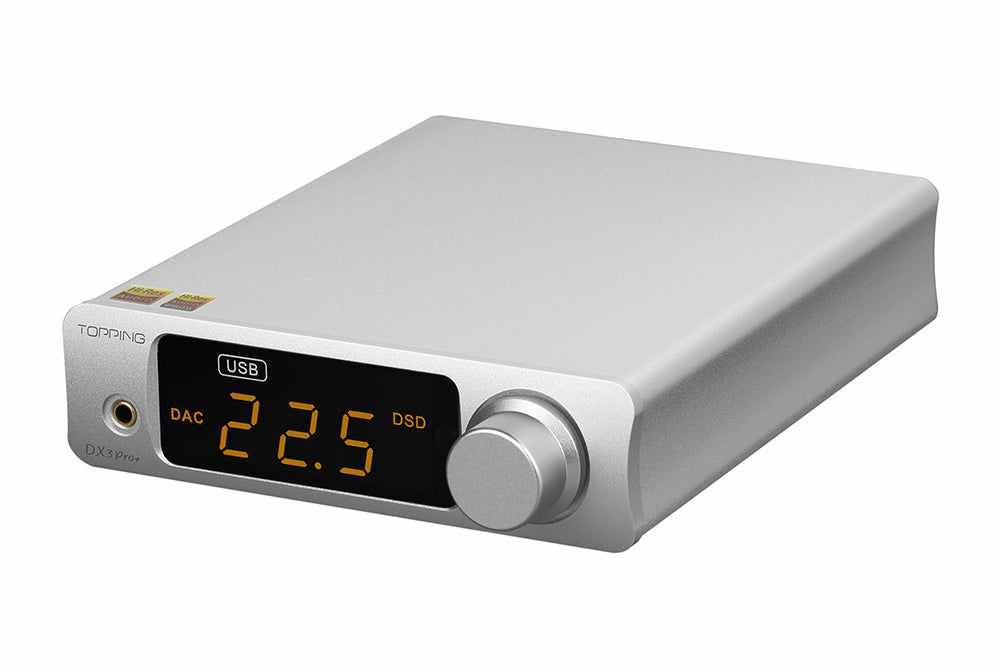

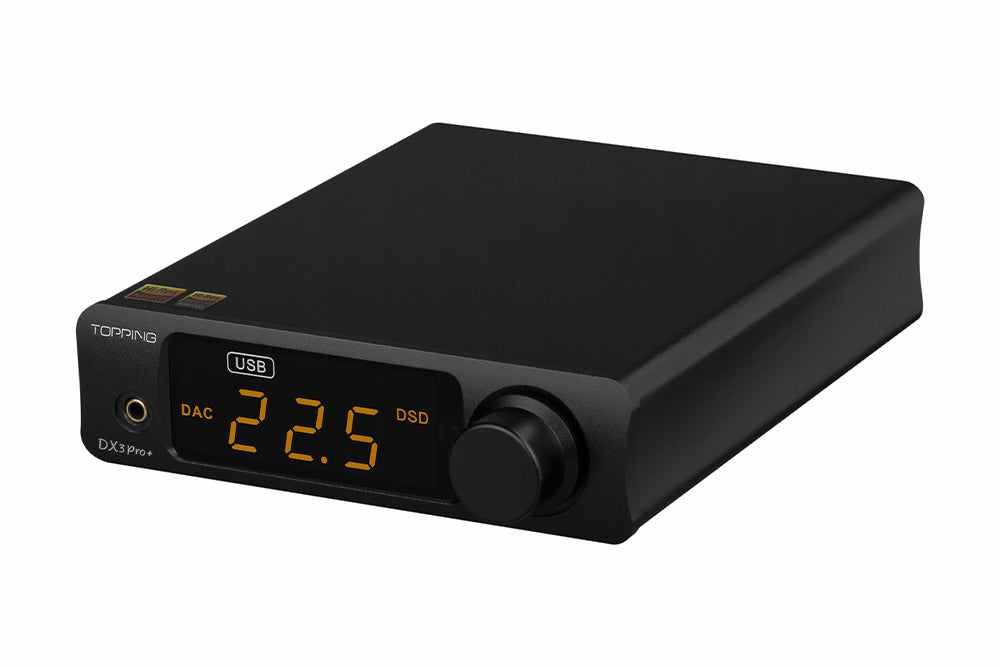

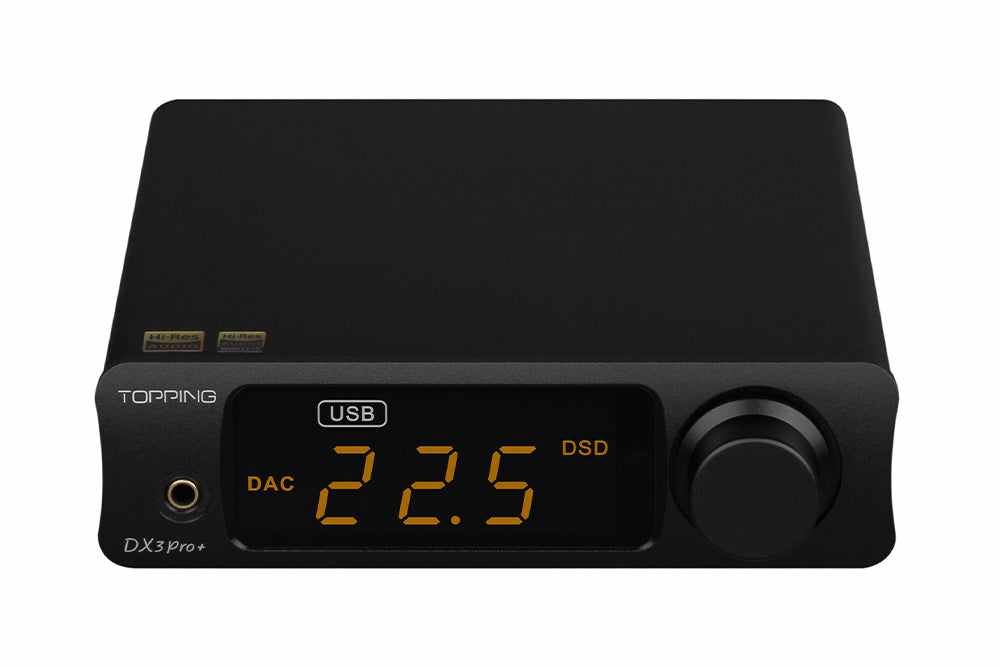

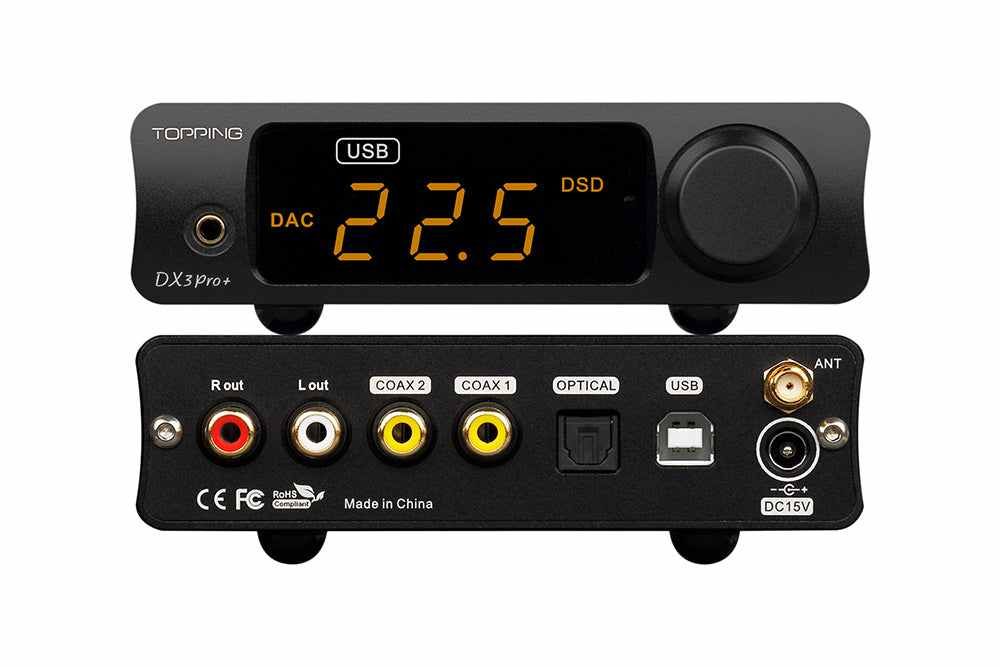

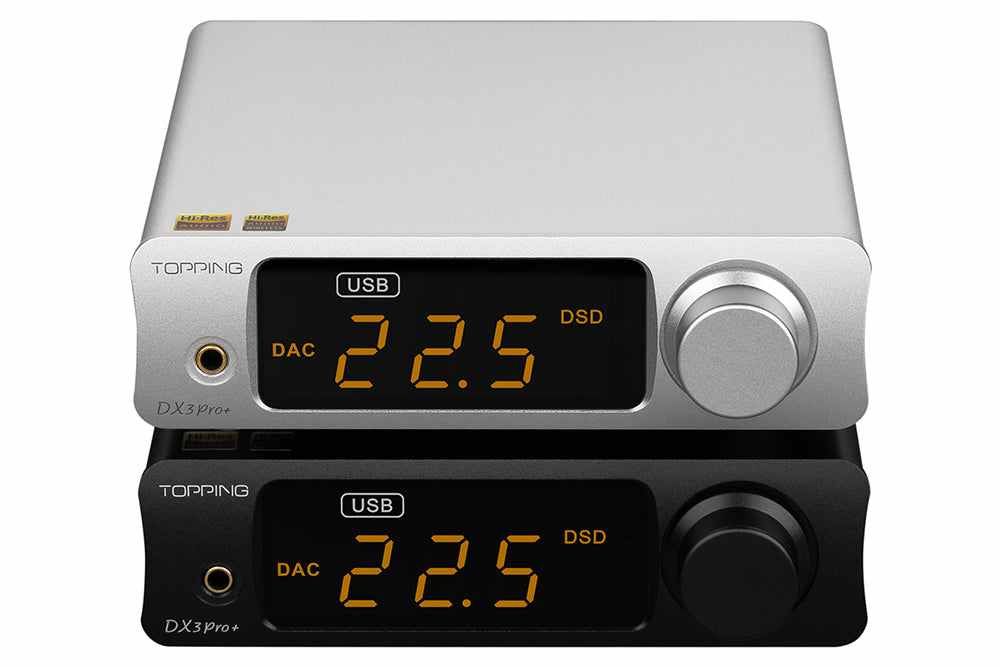

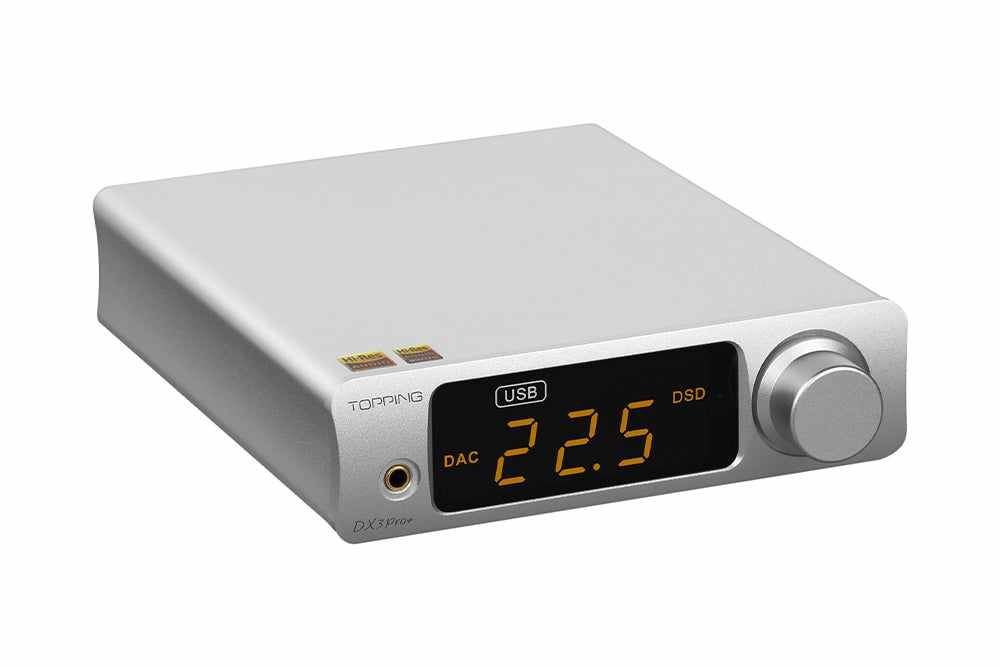

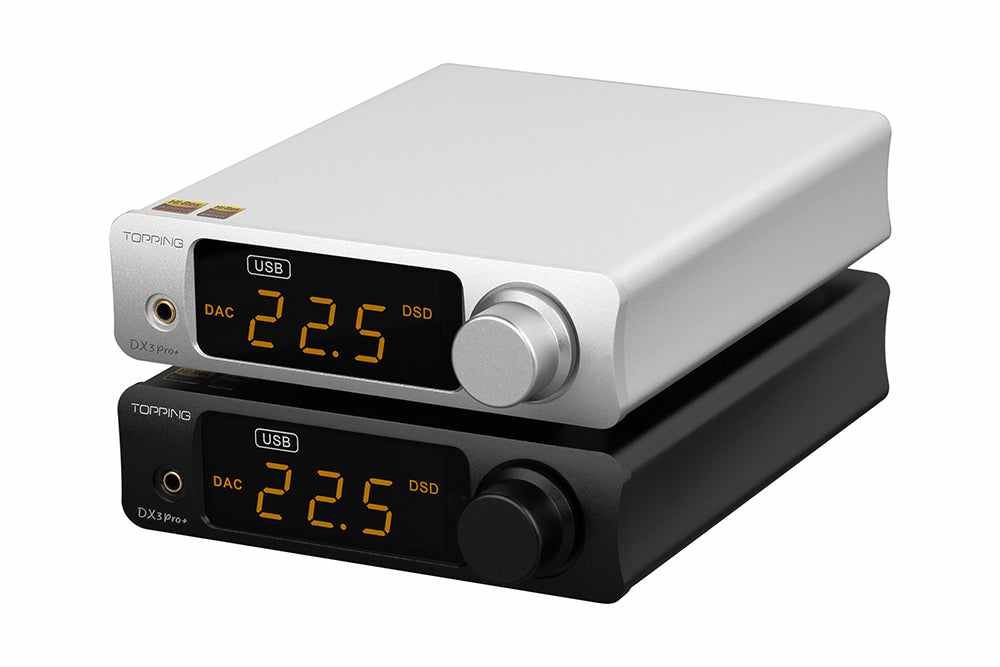

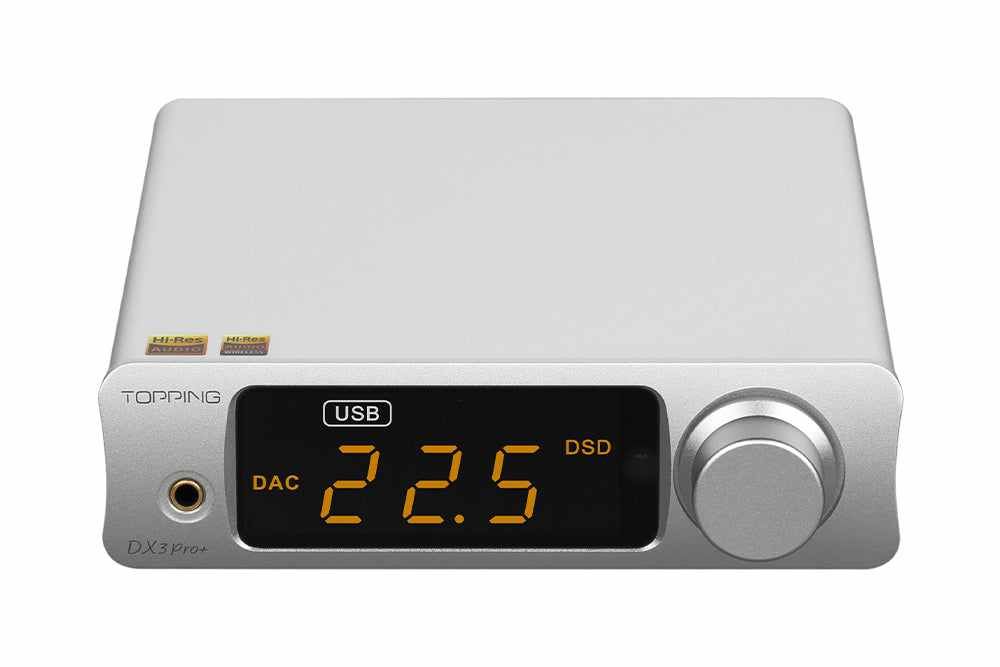

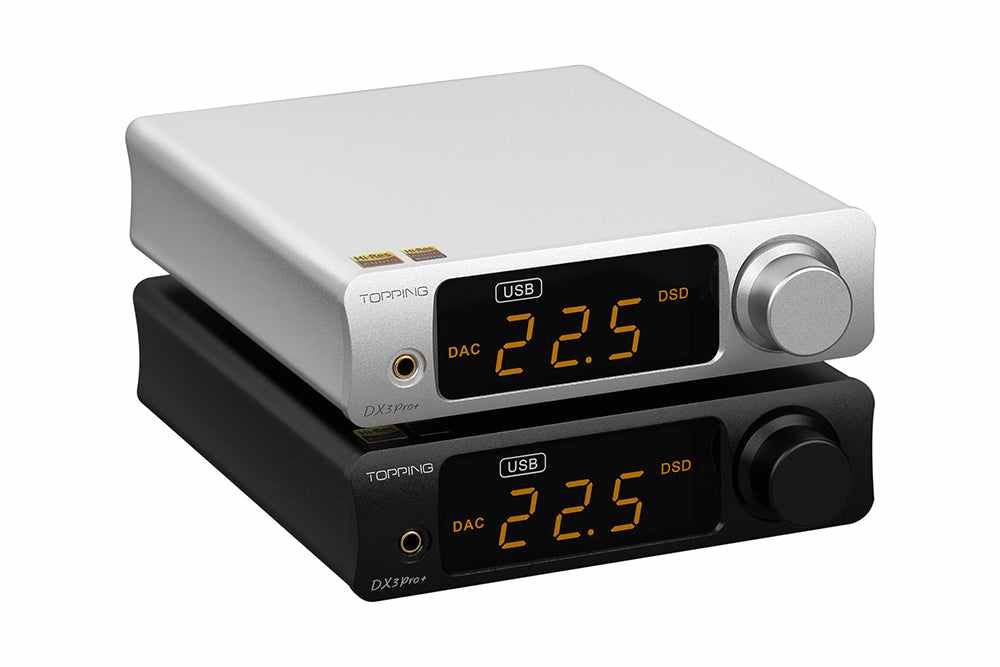

TOPPING DX3 Pro+ Bluetooth Desktop DAC & Headphone Amplifier

Introducing the TOPPING DX3 Pro+ DAC/Amp, an evolution of the classic DX3 Pro, now with upgraded features and an even more affordable price point.

Enhanced Performance: The DX3 Pro+ boasts substantial improvements over its predecessor. With a new Bluetooth chip and DAC chip, it achieves remarkable results: 60% lower THD+N (DAC), 85% lower THD+N (HPA), over 100% more power, and 90% lower output impedance compared to the DX3 Pro (LDAC version).

Bluetooth 5.0 LDAC: Featuring Bluetooth 5.0 LDAC support powered by a Qualcomm QCC5152 chip, the DX3 Pro+ delivers Hi-Res Audio Wireless. Notably, it deploys the ESS ES9038Q2M chip for Bluetooth codec decoding, ensuring exceptional performance.

Plug-and-Play Convenience: Enjoy the benefits of a high-end DAC by simply connecting the DX3 Pro+ via USB to your PC or Mac, with no need for drivers. Only higher-end ASIO applications on Windows 10 require a driver.

Low-Noise NFCA Circuit: The DX3 Pro+ is equipped with an optimized NFCA circuit that provides robust, distortion-free performance, delivering 1800mWx2 @32Ω and an impressive 0.00015% THD+N.

Versatile Gain Settings: Tailor your audio experience with ease using the DX3 Pro+'s two gain settings (+6dB/+19dB), accommodating a wide range of headphone impedances, from IEMs to full-sized headphones.

Four Output Modes: Adapt to every listening scenario with the DX3 Pro+'s versatile output modes: headphone amp, headphone amp + DAC, DAC, and preamplifier.

Bluetooth Amplification and Receiver: Connect your phone, iPad, or laptop to the DX3 Pro+ via Bluetooth to enjoy high-quality music through headphones or use it as a premium Bluetooth receiver by connecting its RCA output.

Universal Compatibility: The DX3 Pro+'s USB input is compatible with both Android and iOS devices, elevating your audio experience whether you're using a phone or tablet. Android devices require OTG USB sound card support, while iOS devices need a special DAC cable or camera kit connection.

DAC and Preamplifier Functionality: When you require the DX3 Pro+ to work alongside an amplifier or active speakers, set its output mode to preamplifier. This allows you to decode audio and adjust volume conveniently, with the added convenience of a remote control.

Simplified DAC Mode: In situations where you only need a straightforward DAC, the DX3 Pro+'s output mode can be set to DAC. The screen displays the current sampling rate, and it consistently outputs 2Vrms for optimum performance.

The TOPPING DX3 Pro+ DAC/Amp represents the evolution of a classic, offering a significant performance boost at a more accessible price point compared to its predecessor. With enhanced features like Bluetooth 5.0 LDAC support, low-noise NFCA circuitry, versatile gain settings, and four output modes, it caters to audiophiles seeking a superior audio experience. Whether you're connecting via USB, enjoying wireless Hi-Res Audio, or transforming it into a preamplifier, the DX3 Pro+ delivers exceptional sound quality and adaptability. Upgrade your audio setup today and discover the next level of sonic excellence with the DX3 Pro+.

Specifications:

Bluetooth 5.0: Qualcomm’s QCC5125 Chip
Decoding Chip: ES9038Q2M
USB In
PCM: 44.1kHz-768kHz / 16bit-32bit
DSD (Native): DSD64-DSD512
DSD (DoP): DSD64-DSD256
COAX / OPT in
PCM: 44.1kHz-192kHz / 16bit-24bit
DSD (Native): Not Supported
DSD (DoP): DSD64
Bluetooth In
PCM: AAX, SBC, aptX, aptX LL, aptX HD, LDAC
DSD (Native): Not Supported
DSD (DoP): Not Supported
THD+N @1kHz (A-wt): <0.00015%
THD @20-200kHz (90kBW): <0.00020%
SNR: 122dB
DNR: 122dB
Frequency response
20Hz-20kHz (±0.3dB)
20Hz-40kHz (±0.7dB)
Output level: 2.1Vrms @0dBFS
Noise (A-wt): <1.8uVrms
Channel crosstalk @1kHz: -137dB
Channel balance: 0.3dB
Output impedance: 20Ω

DX3 Pro+ Headphone Amplifier Specifications:
THD+N @1kHz (A-wt)
<0.00015% @Output=1500mW (32Ω)
<0.00013% @Output=160mW (300Ω)
THD @20-200kHz (90kBW)
<0.0005% @Output=1500mW (32Ω)
<0.0005% @Output=160mW (300Ω)
SNR: 120dB
DNR: 120dB
Frequency response
20Hz-20kHz (±0.3dB)
20Hz-40kHz (±0.7dB)
Output level
5.5Vpp @G=L
21.5Vpp @G=H
Noise (A-wt)
<2.1uVrms @G=L
<7.0uVrms @G=H
Channel crosstalk @1kHz: -90dB
Gain
6dB (Vrms/FS) @G=L
19dB (Vrms/FS) @G=H
Output impedance: <0.1Ω
Output power
1800mW x2 @32Ω THD+N <0.1%
900mW x2 @64Ω THD+N <0.1%
250mW x2 @300Ω THD+N <0.1%
Adapter impedance: >8Ω
Dimensions: 6.5” x 4.7” x 1.5” (16.5 x 12 x 4 cm)
