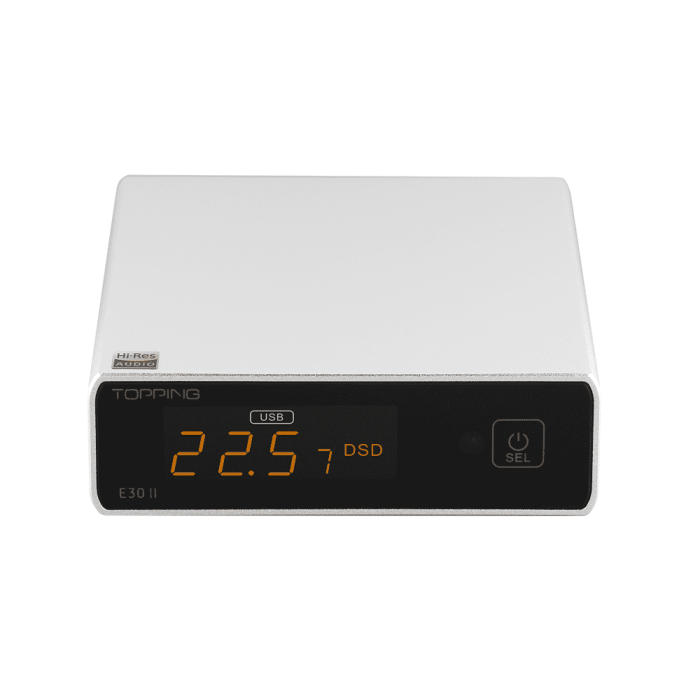

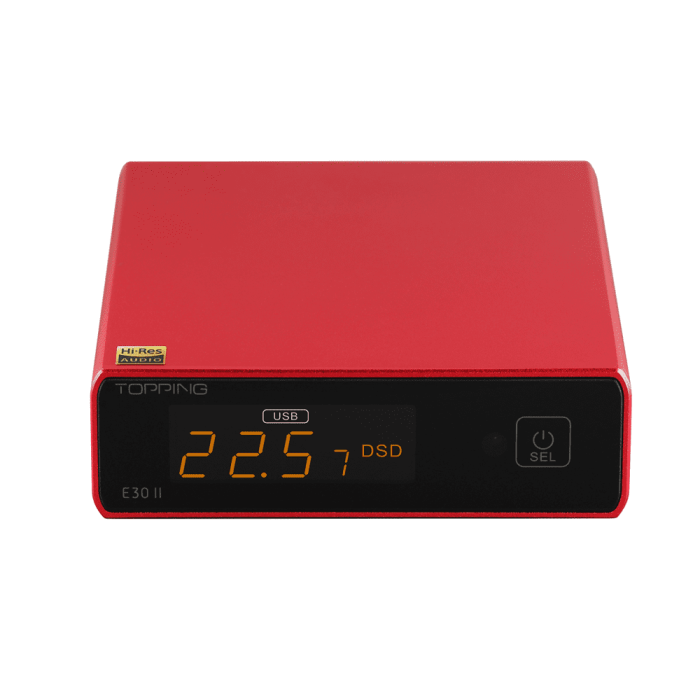

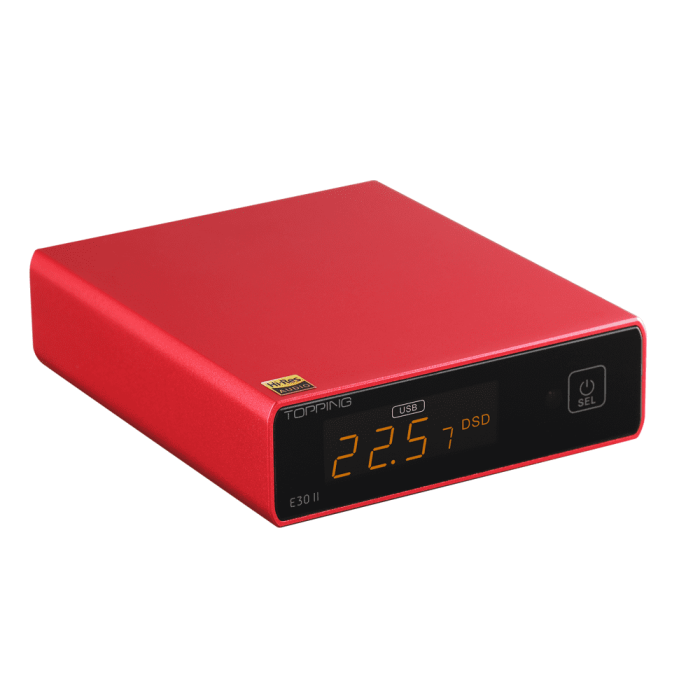

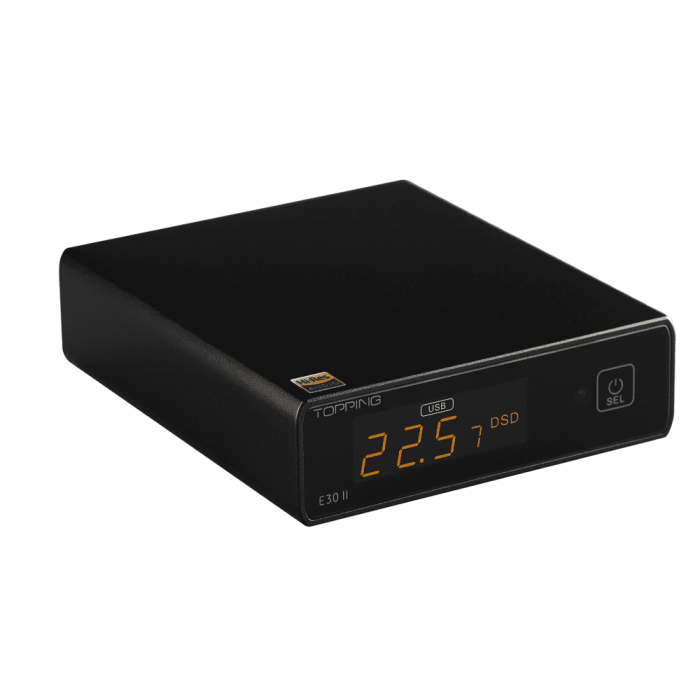

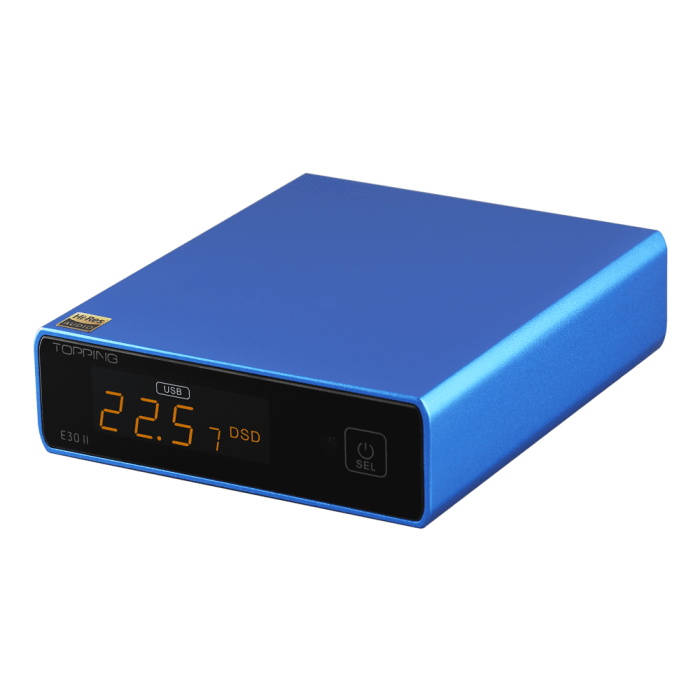

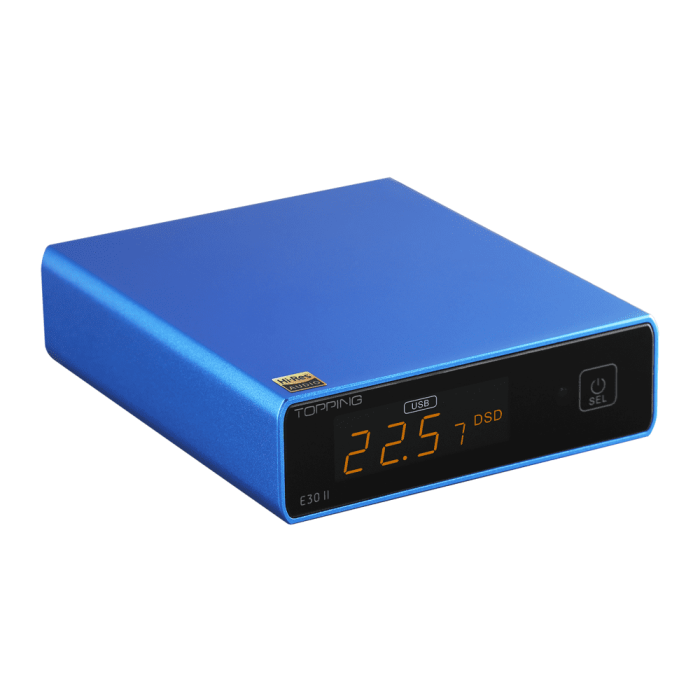

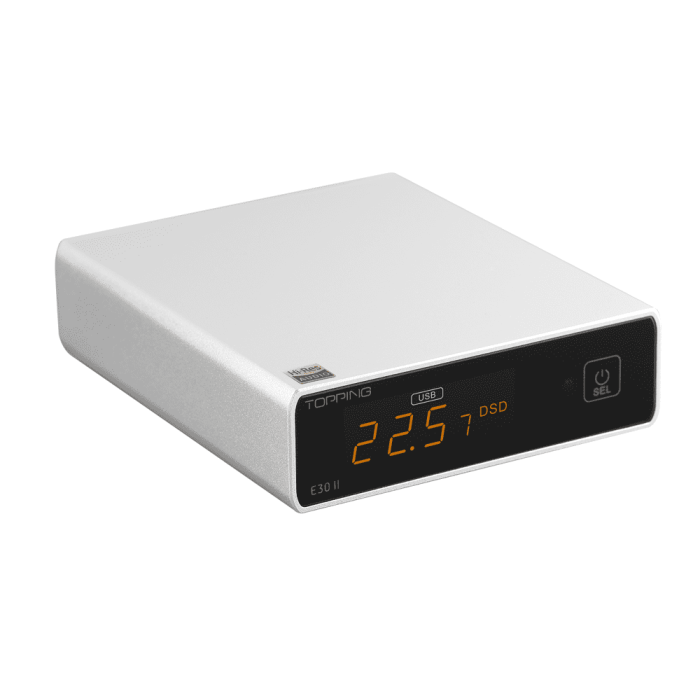

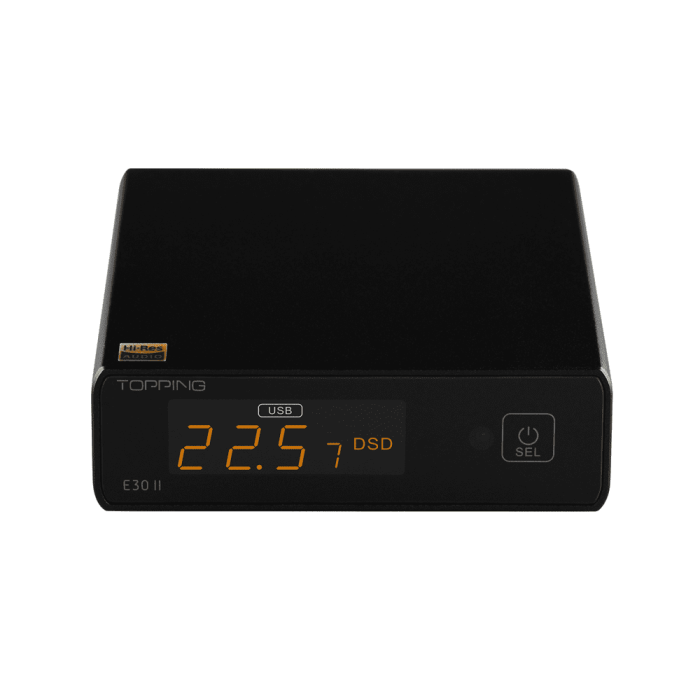

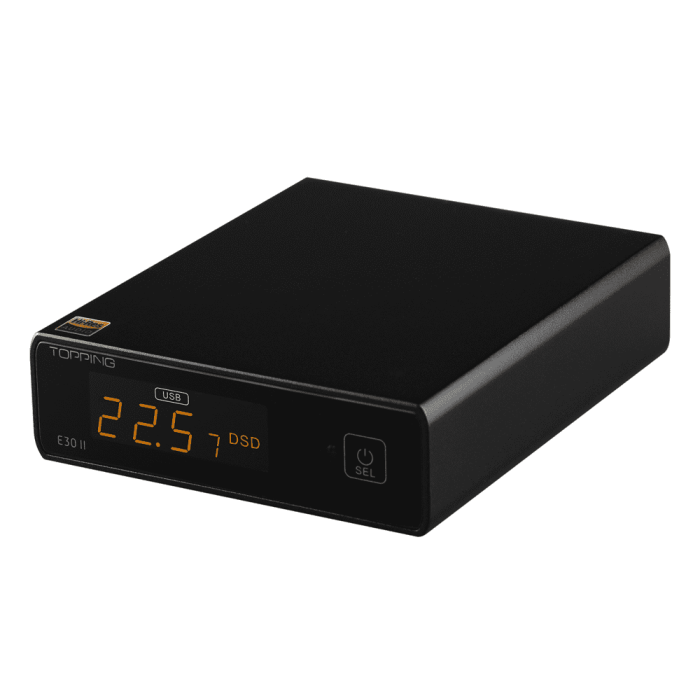

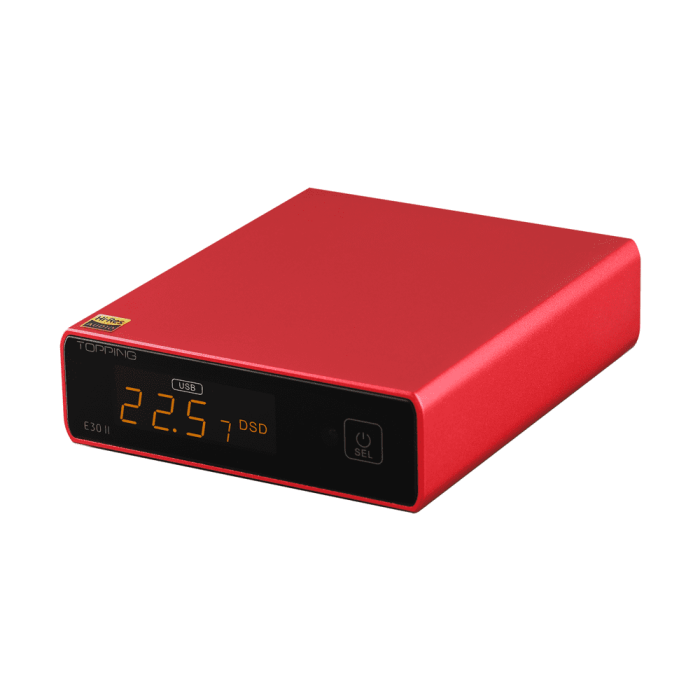

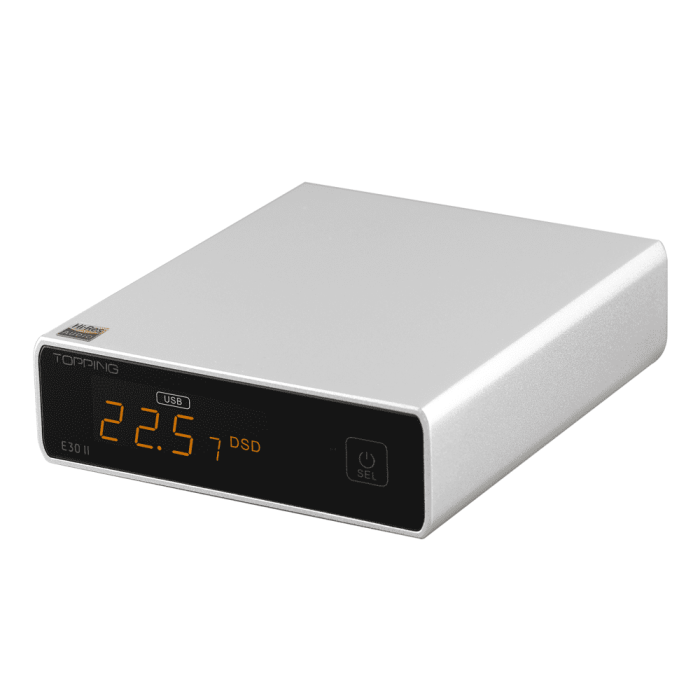

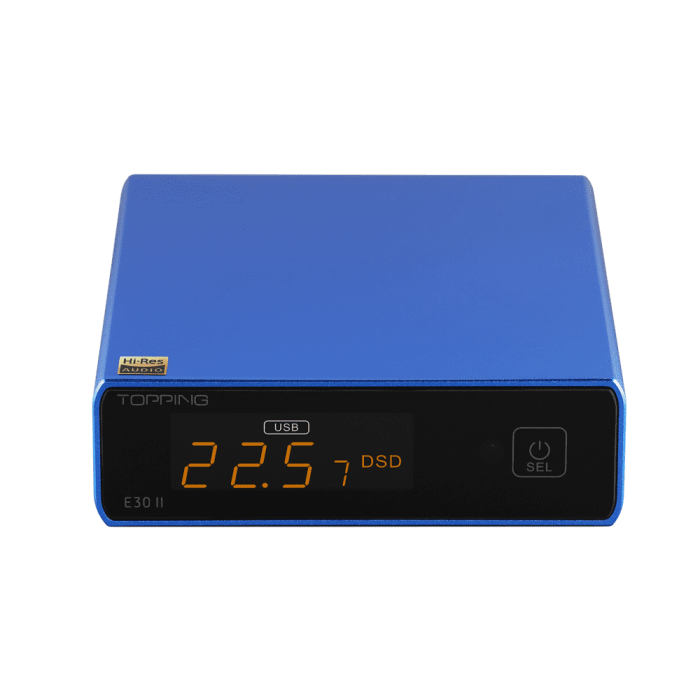

TOPPING E30 II Digital to Analog Convertor Hi-Res Dual AK4493S Audio Decoder with Remote Control

Presenting the Topping E30 II, the latest evolution in entry-level budget Desktop DACs. As the successor to the highly-regarded E30 DAC, the E30 II takes a significant step forward by incorporating the latest AKM DAC chips, promising a remarkable audio experience. With its digital signal processing circuit, this DAC achieves class-leading performance, offering lower distortion, higher dynamic range, and improved signal-to-noise ratio compared to its predecessor. The Topping E30 II aims to be your go-to DAC for authentic Hi-Res audio without breaking the bank.

Latest-Gen AKM Velvet Sound DAC Chips: The E30 II boasts a premium Dual DAC Chipset featuring two newly launched AK4493S DAC chips from AKM's Velvet Sound Technology lineup. These chips operate in parallel, one for each channel, delivering top-tier performance with ultra-low distortion and impressive SNR/DNR ratings.

Pure DAC/Pre-AMP Functions: The E30 II can operate in pure DAC mode with maximum output level. In this mode, DSD signals bypass the DATT Soft Mute and Delta Sigma Modulator, delivering pure DSD performance. It also features an in-built volume control function to adjust volume levels from -99dB to 0dB. Connect the E30 II directly to a power amplifier or active speakers, and effortlessly control volume with the included remote.

Plug and Play Convenience: Handling USB input, the E30 II relies on the trusted XU208 8-core USB processor from XMOS. It supports high-resolution PCM (up to 32-Bit/768kHz) and native DSD512 audio signals, offering plug-and-play compatibility with a wide range of devices, including Windows 10, Windows 11, Mac, Linux, iOS, and Android. Transform your PC into a HiFi source by simply connecting it to the E30 II with a USB cable.

Versatile Filter Modes: The E30 II offers a selection of digital filters for decoding, including six pre-built filter modes for PCM decoding and two for DSD signal decoding. Each filter mode provides a unique output adjustment, allowing users to tailor their audio experience.

Discrete LNRD Circuit: To address noise issues associated with a 5V power supply, the E30 II incorporates a Discrete LNRD circuit (Low-Noise Reference Driver). This circuit effectively filters out adapter-induced noise, ensuring a stable power supply to all E30 II components.

24-bit Coaxial and Optical Performance: Revitalize your digital turntable, disc player, and game console by connecting them to the optical and coaxial inputs, supporting 24-bit/192kHz audio.

Ultra-Portable 5V Power Supply: The E30 II operates on a DC5V power supply, making it exceptionally portable. Power it with a mobile phone charger, power bank, or laptop USB port, with built-in protection for added convenience.

The E30 II represents a significant improvement over its predecessor, achieving better SINAD, SNR, dynamic range, and lower noise levels with its dual upgraded DAC chips. Upgrade your audio journey with the Topping E30 II, a versatile and high-performance DAC that offers audiophile-grade quality at an accessible price point.

Specifications:
PCM
USB :44.1kHz-768kHz 16bit-32bit
OPT/COAX : 44.1kHz-192kHz 16bit- 24bit

DSD (Native)
USB :DSD64-DSD512
OPT/COAX :Not supported

DSD (DoP)
USB : DSD64-DSD256
OPT/COAX :Not supported

Output Voltage：2.1Vrms@0dBFS
Noise：<1.5uVrms @A-weighting
Crosstalk：-132dB @1 kHz
SNR：>121dB @ 1kHz
Dynamic Range：123dB @1kHz
Channel Balance：<0.3 dB

Packing list:
TOPPING E30 II DAC
Remote control
USB cable
DC cable
User manual
Warranty card
