TOPPING E30 II Lite DAC AK4493S Preamp Hi-Res XMOS XU208 Digital to Analog Convertor

Regular price: $791.74
Regular price
Sale price: $791.74

Shipping calculated at checkout.

Color: Black

Product variants:

Product Highlights

• AK4493S chip with VELVET Sound technology
• DSD512 and PCM768kHz support
• XMOS XU208 processor for enhanced performance
• Jitter as low as -153dB for improved sound
• Coaxial and optical inputs up to 24bit/192kHz
• Flexible power supply options
• Integrated Discrete LNRD circuit for stable power
• Multiple filter modes for PCM and DSD
• Auto On/Off function for user convenience
• Preamp mode for easy volume control
• DAC mode for pure DAC output

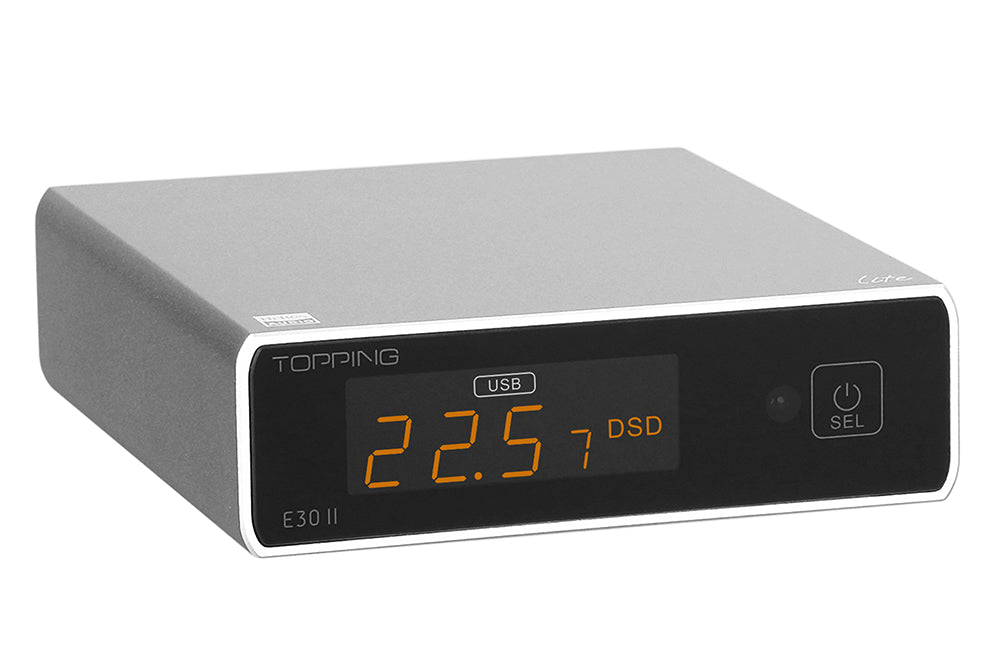

Introducing the Topping E30 II Lite, a high-performance desktop DAC featuring AKM's AK4493S chipset for a rich and clean audio experience. With a single DAC providing class-leading performance, enjoy crisp high-resolution audio with a 121dB SNR and 0.0004% distortion.

High-resolution Audio with AK4493S: Experience high-fidelity audio with AKM's VELVET Sound technology through the AK4493S chip. Achieve a dynamic range of 121dB and low THD for accurate audio signal reproduction and a captivating live music experience.

Premium XMOS USB Processor: Equipped with the powerful XMOS XU208 processor, the E30 II Lite supports audio streams up to DSD512 and PCM768kHz. Compatible with various operating systems, it ensures optimal HiFi music playback without the concern of jitter affecting sound quality.

Ultra-Low Jitter Performance: Experience exquisite craftsmanship with ultra-low jitter performance as low as -153dB. The E30 II Lite delivers a dynamic and rich sound, elevating your listening experience to new heights.

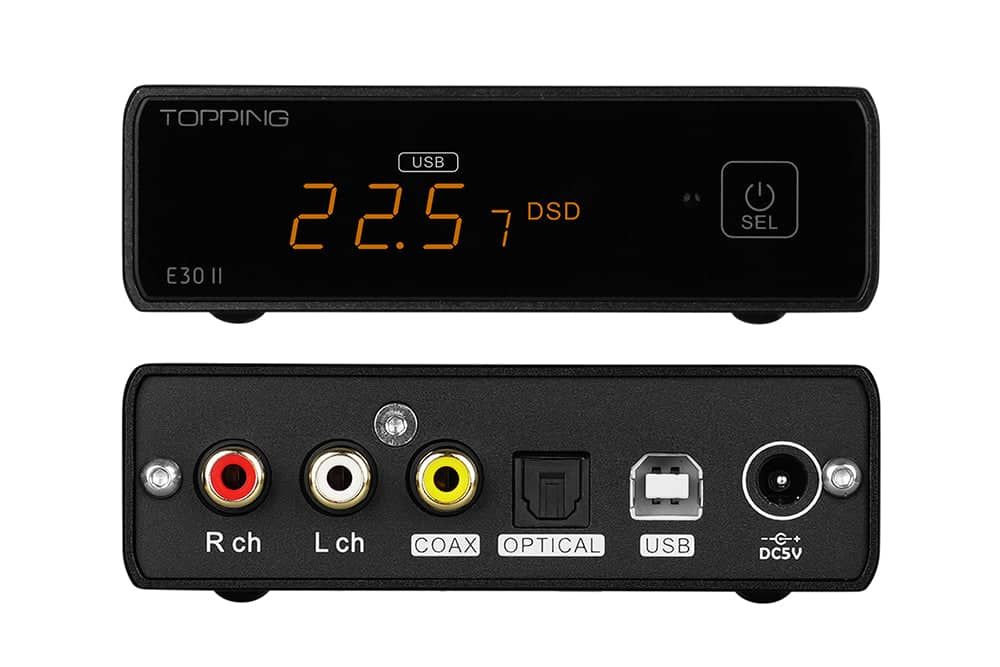

Multiple Input Options: In addition to USB input, the E30 II Lite offers versatile SPDIF input support with Coaxial and Optical ports. Connect to a range of sources such as CD Players, Set-Top Boxes, and Gaming Consoles for a flexible audio setup.

5V Power Supply With Built-in Protection: Powered by a 5V supply, the E30 II Lite is easily connected to a standard USB output from a PC or a DC 5V adapter. The built-in protection circuit ensures safety and prompts warnings for incorrect power supply connections.

Specifications:
Power input: DC5V/1A
Signal input: USB/OPT/COAX
Line out output: RCA
Total Harmonic Distortion (THD): <0.0004%
SNR: 121dB
Dynamic Range: Up to 121dB
Frequency response: 20Hz - 40kHz
Output level: 2.1Vrms
Noise: <1.9uVrms
Channel crosstalk: -137dB
Channel balance: <0.3dB
Output impedance: 20Ω
Supports up to DSD512 Native and PCM 32-bit/768kHz
DAC: AK4493S
Processor: XMOS XU208
Power supply: DC 5V
Weight: 0.65lbs (295g)
Dimensions: 3.9” x 4.9” x 1.2” (10cm x 12.5cm x 3.2cm)
