TOPPING PRE900 Fully Balanced Desktop Preamplifier with 0.1dB Relay Volume Control, 151dB SNR & XLR Balanced Outputs

TOPPING PRE900 Fully Balanced Desktop Preamplifier — Reference-Grade Preamplification for Your Flagship System

The TOPPING PRE900 is a fully balanced desktop preamplifier engineered for dedicated two-channel systems and flagship headphone stacks. Built around a four-channel reference-grade amplification circuit with a true end-to-end differential design, it pairs a 0.1 dB precision relay volume control, three balanced combo inputs, one pair of XLR balanced outputs, and fully independent digital/analog power supplies with measured performance of 0.00005% THD+N and 151 dB SNR. A 2.0-inch high-definition color display, touch controls, and a CNC-machined aluminum remote complete a preamplifier that is as pure in form as it is in sound.

Full-Path Balanced Architecture

The PRE900 employs a four-channel reference-grade amplification circuit that is fully balanced in every stage — a true end-to-end differential signal path from input to output. Left and right channels are physically isolated to the highest degree, effectively suppressing noise and electromagnetic interference so the signal you feed in emerges exceptionally pure and pristine.

Independent Power Supplies

Digital and analog circuitry are powered completely independently, eliminating crosstalk at the source. Even at high dynamic output the noise floor remains imperceptible: the background stays pitch-black and every musical detail stays vividly alive.

0.1 dB Precision Relay Volume Control

A relay array combined with a high-precision resistor network delivers 1,000 steps of volume adjustment in precise 0.1 dB increments, with every step switching smoothly and naturally. Channel crosstalk is held below −150 dB, keeping left and right channels perfectly synchronized at any volume. Throughout the entire adjustment range, only the volume changes — tonal character remains completely consistent.

Powerful Headroom and Pristine Signal

With an output swing of up to 69 Vpp and gain up to 19.9 dB, the PRE900 sails through explosive transient peaks without clipping, adding power and dynamics to your listening. Its actual noise floor is below 0.3 µVrms at low gain, so even the most delicate signals are amplified without audible noise, preserving integrity, stability, and transparency.

Driven by Performance, Proven by Measurement

The PRE900’s engineering is validated by APx555B measurements: THD+N of 0.00005% at 1 kHz (A-weighted), THD below 0.00003% from 20 Hz to 20 kHz, and 151 dB SNR and dynamic range. What you hear is not the sound of the preamplifier, but the sound of the source itself — only with greater presence, tension, and composure.

Safe Volume Mode

Set a preferred safe volume level and the PRE900 automatically lowers the volume to that preset during power-on and input switching, protecting you and your speakers or headphones from unexpected loud bursts. The user-adjustable range spans −80.0 dB to 0.0 dB with a −30.0 dB default.

Multiple Sources, Seamless Switching

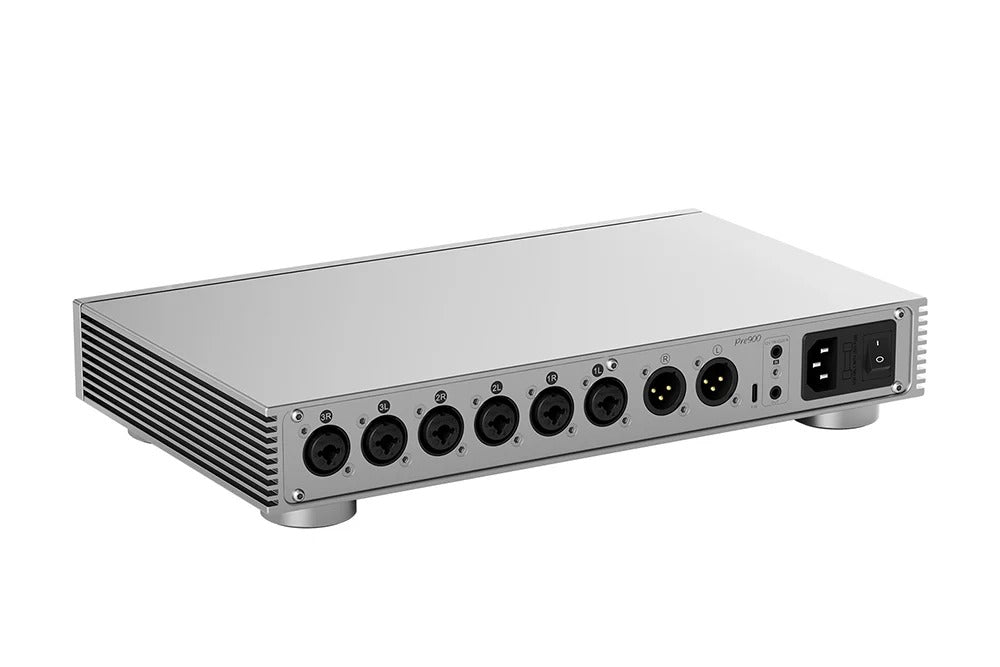

Three sets of stereo balanced combo inputs (XLR and 6.35 mm TRS) offer broad compatibility with professional equipment and high-end audio sources. All input connectors use Neutrik combo sockets for stable, reliable connections that meet the demands of high-standard audio systems.

Focused Output for One Dedicated System

A single pair of XLR balanced outputs ensures the most optimized signal path, while 12V trigger input and output let the PRE900 power on and off in sync with upstream and downstream devices for one-touch system control.

Made for Your Flagship System

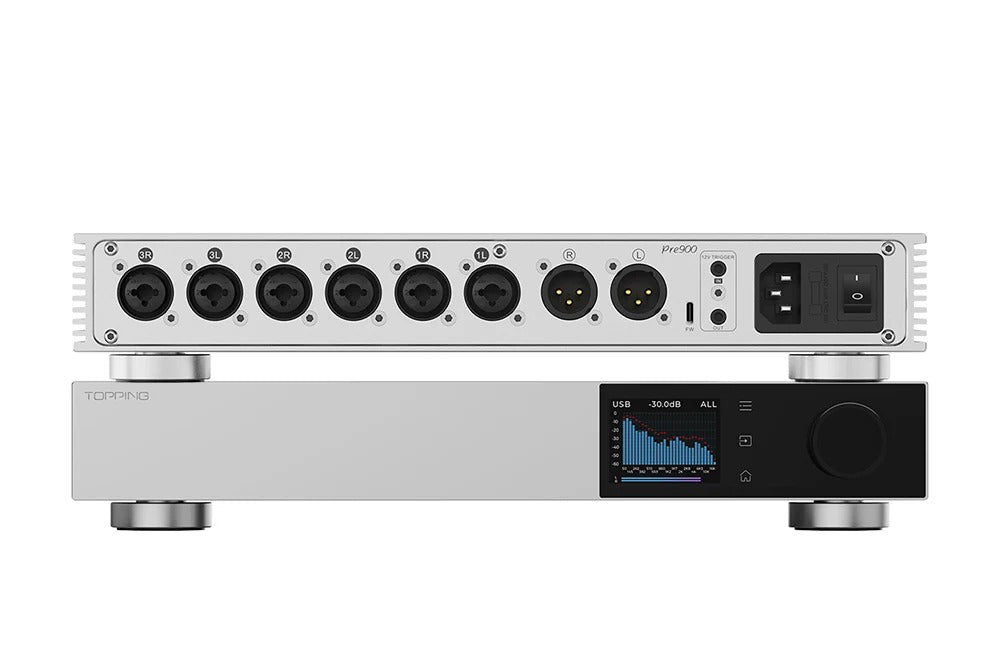

Together with the ultra-flagship D900 DAC and A900 headphone amplifier, the PRE900 completes a true flagship stack — from digital to analog, from signal processing to powerful drive, every stage is elevated for a Hi-End listening experience. It inherits the clean, flowing edge-line design of TOPPING’s flagship 900 Series, with sharp yet restrained lines that create seamless visual harmony when stacked.

Responsive Control

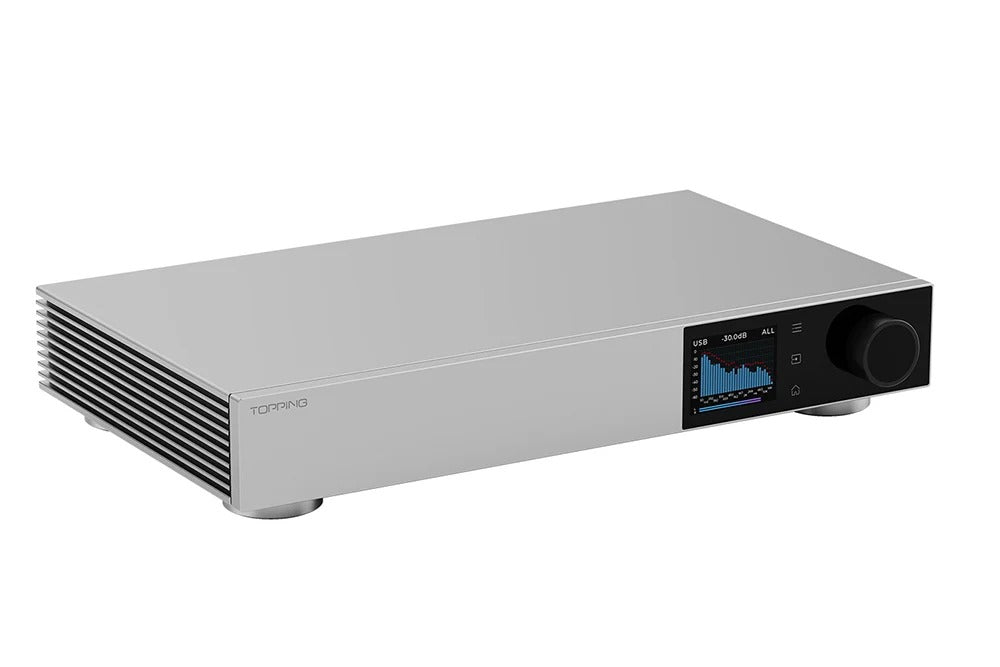

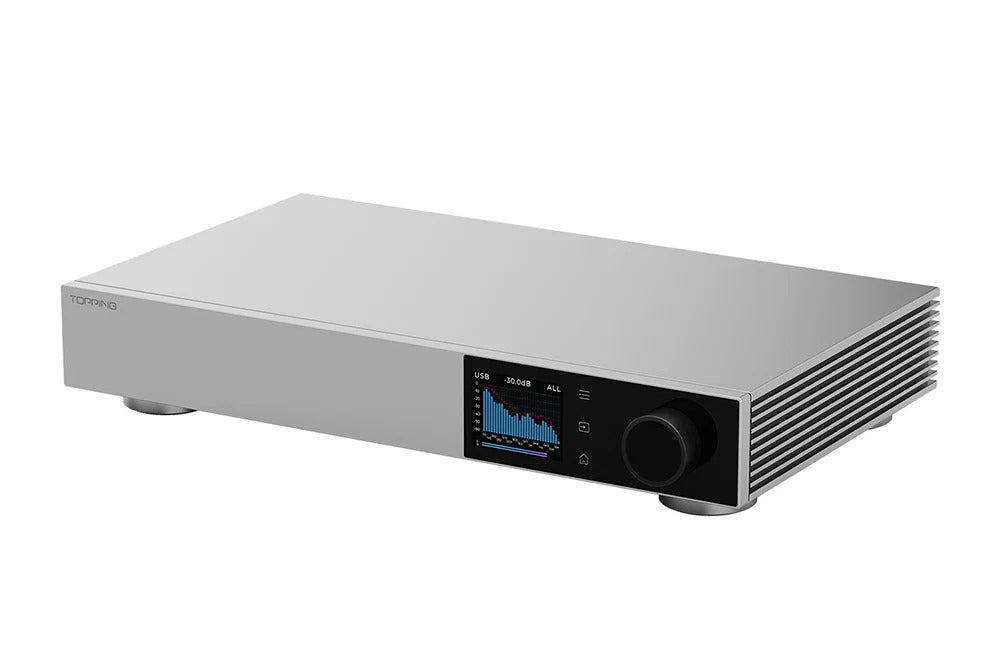

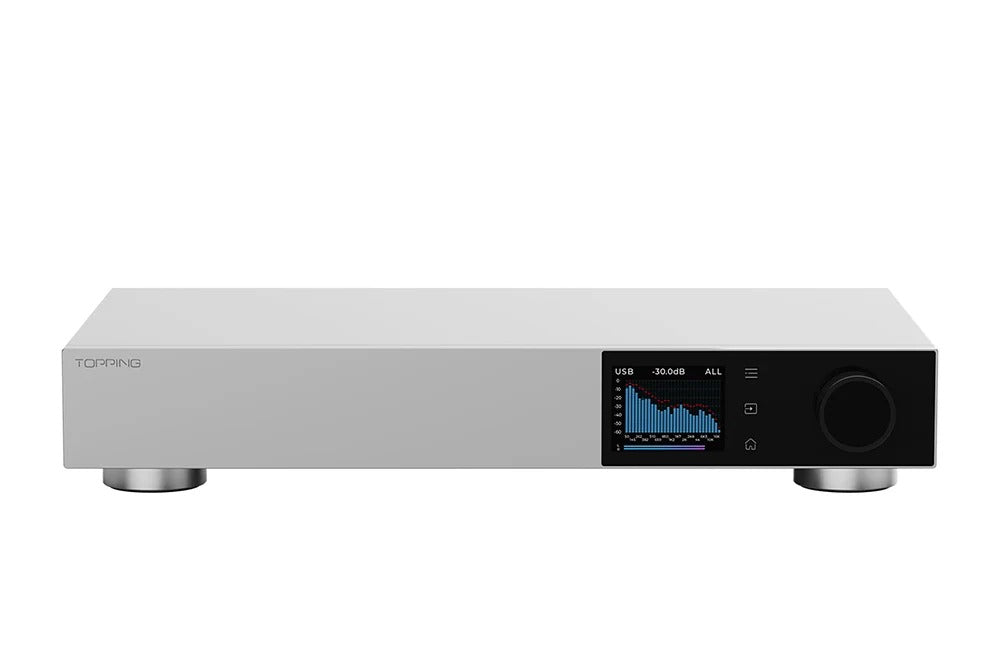

A 2.0-inch high-definition color display with 9 selectable background colors adapts perfectly to your visual preferences. Three touch buttons on the right work seamlessly with the multi-function knob, and a single touch switches display modes between playback information, FFT, and VU meter views.

Infrared Remote Control

The remote control’s main body is crafted from a single block of high-strength aluminum alloy using precision CNC machining, followed by fine sandblasting for a refined finish — full control from your listening seat with a component that matches the PRE900’s build quality.

Specifications

• Model: TOPPING PRE900 Fully Balanced Preamplifier
• Amplifier Architecture: Four-Channel Fully Balanced, True End-to-End Differential
• Volume Control: 0.1 dB Precision Relay, 1,000-Step
• THD+N (1 kHz, A-weighted): 0.00005%
• THD (20 Hz–20 kHz, 90kBW): 0.00003%
• SNR (Max Output, 1 kHz, A-weighted): 151 dB
• Dynamic Range (1 kHz, A-weighted): 151 dB
• Frequency Response: 20 Hz–40 kHz (±0.05 dB); 20 Hz–100 kHz (±0.1 dB)
• Output Level: 69 Vpp (Low Gain), 65 Vpp (Medium Gain), 65 Vpp (High Gain)
• Actual Noise Level (A-weighted): <0.3 µVrms (Low), <0.9 µVrms (Medium), <2.3 µVrms (High)
• Channel Crosstalk (1 kHz): −150 dB
• Input Sensitivity: 25.3 Vrms (Low), 7.1 Vrms (Medium), 2.3 Vrms (High)
• Gain: 0 dB (Low), +10.4 dB (Medium), +19.9 dB (High)
• Input Impedance: 20 kΩ
• Output Impedance: 100 Ω
• Inputs: 3 x Stereo Balanced Combo (XLR + 6.35 mm TRS, Neutrik)
• Outputs: 1 x Pair XLR Balanced Preamp Output
• Trigger: 12V Trigger Input and Output
• Power Supply: Independent Digital and Analog (Mean Well Modules)
• Display: 2.0-inch HD Color Display (9 Background Colors, FFT / VU Modes)
• Remote Control: CNC-Machined Aluminum Infrared Remote
• Dimensions: 33.0 x 20.0 x 5.7 cm (13.0 x 7.9 x 2.2 in)

What's Included

• TOPPING PRE900 Preamplifier
• Infrared Remote Control
• User Documentation
